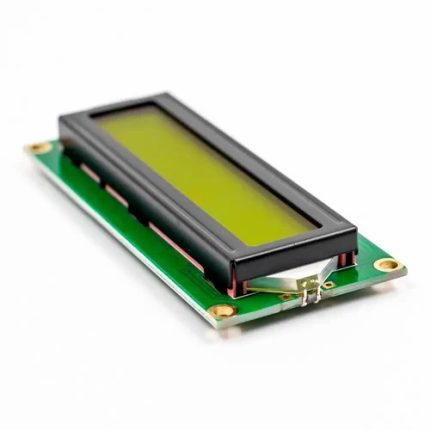

LCD1602 Yellow Green Backlight 5V

Model: LCD1602
Character Color: Black
Backlight: Yellow
Supply voltage: 5V
Dimensions (L x W x H) mm. : 80 x 36 x 10

SKU: AA012 Categories: Display modules, LCD Display

Original price was: 90,00 EGP.Current price is: 80,00 EGP.

7 People watching this product now!

Description

If you want to add some visual output to your Arduino projects, you’ll need a display. If you need only little to display, the LCD1602 Parallel LCD Display is a quite good solution.

This is LCD1602 Parallel LCD Display that provides a simple and cost-effective solution for adding a 16×2 Black on RGB Liquid Crystal Display into your project. The display is 16 character by 2 line display that has a very clear and high contrast black text upon a Gray background/backlight.

This is a great Gray backlight LCD display. It is fantastic for Arduino-based projects. This LCD1602 Parallel LCD Display with Gray Backlight is very easy to interface with Arduino or Other Microcontrollers.

The values shown on the display can be either simple text or numerical values read by the sensors, such as temperature or pressure, or even the number of cycles that the Arduino is performing.

One thing to consider is you’ll waste about 8 Pins on your Arduino for the display to get working. Luckily there exists an I2C adapter that you can solder right onto the pins of the display. So all you need to connect are the I2C pins, which show a good library and little of coding. We have the same LCD module with a pre-assembled I2C adapter, click on the name below to check it

Features :

16 characters wide, 2 rows
Black text on the Gray background
Single LED backlight included can be dimmed easily with a resistor or PWM.
Can be fully controlled with only 6 digital lines! (Any analog/digital pins can be used)

Package Includes :

1 x LCD1602 Parallel LCD Display with Gray Backlight

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board Name	Component / Sensor	Connection Details
Arduino Uno	LCD1602 Display	VSS->GND, VDD->5V, RS->D12, RW->GND, E->D11, D4->D5, D5->D4, D6->D3, D7->D2, A->5V, K->GND
Arduino Uno	10k Potentiometer	Left Pin->5V, Center Pin (Wiper)->LCD V0, Right Pin->GND

📟

LCD1602 Parallel Display

1 Example • C/C++

Wrap Dark

LCD1602 Initialization Code

Code Comments:

This code initializes the LCD in 4-bit mode and prints static text across both rows.

📄 File: lcd1602_initialization_code.inoArduino Uno

1014 characters

1/*

2 * ekostra.com

3 * ekostra electronics store in egypt

4 */

6// Include the standard LiquidCrystal library for parallel LCDs

7#include <LiquidCrystal.h>

9// Define the Arduino pins connected to the LCD control and data pins

10// RS = 12, EN = 11, D4 = 5, D5 = 4, D6 = 3, D7 = 2

11const int rs = 12, en = 11, d4 = 5, d5 = 4, d6 = 3, d7 = 2;

13// Initialize the LiquidCrystal library object with the specified pins

14LiquidCrystal lcd(rs, en, d4, d5, d6, d7);

16void setup() {

17 // Set up the LCD's number of columns and rows (16 columns, 2 rows)

18 lcd.begin(16, 2);

20 // Move the cursor to the first column (0) and first row (0)

21 lcd.setCursor(0, 0);

23 // Print the requested website name on the top row

24 lcd.print("Ekostra.com");

26 // Move the cursor to the first column (0) and second row (1)

27 lcd.setCursor(0, 1);

29 // Print the requested test message on the bottom row

30 lcd.print("Test");

31}

33void loop() {

34 // The loop is empty because the text is static and does not need to be refreshed continuously

35}

Project Notes:

This project demonstrates how to connect a standard 16x2 LCD in parallel mode (4-bit) to an Arduino Uno. A 10k potentiometer is used to adjust the display contrast.

Required Libraries:

LiquidCrystalGitHub
