2.4 inch LCD Display TFT Touch Screen Shield 240×320 18-bit SPFD5408 Display Controller Arduino UNO R3/Mega2560

Name: 2.4 inch LCD Display TFT Touch Screen Shield 240x320 18-bit SPFD5408 Display Controller Arduino UNO R3/Mega2560
SKU: AA674
Price: 550.00 EGP
Availability: InStock

2.4-inch 240×320 TFT touch screen shield for Arduino UNO and Mega2560.

SKU: AA674 Categories: Display Modules, LCD Display Tags: 2.4 inch TFT shield | شاشة TFT 2.4 بوصة، شاشة لمس أردوينو، شاشة 240x320، درع LCD UNO، TFT Mega2560، متحكم SPFD5408، درع بطاقة microSD، شاشة TFT ملونة, 240x320 display, Arduino, Arduino touch screen, color TFT display, Display Modules, LCD Display, Mega2560 TFT, microSD card shield, SPFD5408 controller, UNO LCD shield

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

550,00 EGP

Compare

9 People watching this product now!

Payment Methods:

Description

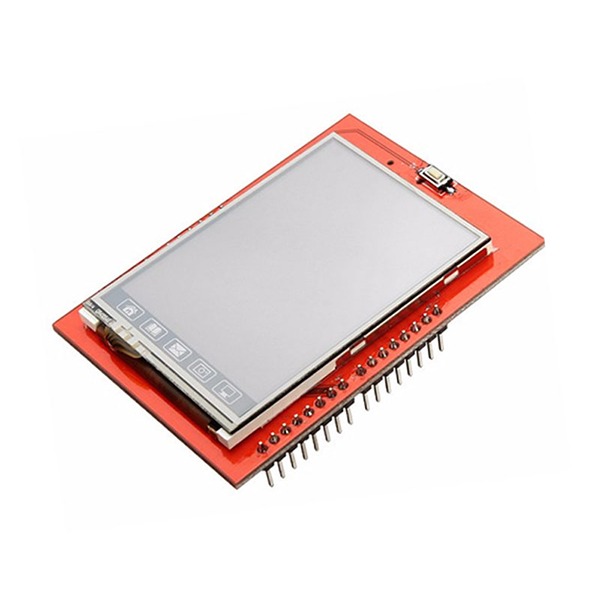

2.4″ Inch Touch Screen TFT Display Shield adds a touch up to your Arduino project with a beautiful large touchscreen display shield with built-in microSD card connection. This TFT display is big (2.4″ diagonal) bright and colorful! 240×320 pixels with individual pixel control. It has way more resolution than a black and white 128×64 display.

Features:

2.4″ diagonal Touch LCD TFT display
240×320 resolution, 18-bit (262,000) color
8-bit digital interface, plus 4 control lines
5V compatible! Use with 3.3V or 5V logic
Onboard 3.3V 300mA LDO regulator
Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3, and analog 4 and 5. Pin 12 is available if not using the microSD
Works with any Arduino Uno and mega compatible boards

Package Includes:

1 x 2.4″ Inch Touch Screen TFT Display Shield for Arduino UNO Mega

1 x Stylus Pen

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
Shield	(plugs onto header)	fixed mapping, no manual wiring needed

📟

2.4 inch LCD Display TFT Touch Screen Shield 240x320 18-bit SPFD5408 Display Controller Arduino UNO R3/Mega2560

2 Examples • C/C++ | Boards: Arduino Uno, Arduino Mega

Wrap

2.4 inch LCD Display TFT Touch Screen Shield 240x320 18-bit SPFD5408 Display Controller Arduino UNO R3/Mega2560 - Arduino Uno

2.4 inch LCD Display TFT Touch Screen Shield 240x320 18-bit SPFD5408 Display Controller Arduino UNO R3/Mega2560 - Arduino Mega

📄 File: 2.4_inch_lcd_display_tft_touch_screen_shield_240x320_18-bit_spfd5408_display_controller_arduino_uno_r3/mega2560_-_arduino_uno.inoArduino Uno

873 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// This is a full-size Uno/Mega SHIELD - it plugs directly onto header pins with its own fixed CS/DC/RST mapping; the pins below are that shield's standard defaults, only relevant on Arduino Uno/Mega.

6// CS=10, DC=9, RST=8 on Arduino Uno. MOSI/SCK use the board's hardware SPI pins.

7#include <SPI.h>

8#include <Adafruit_GFX.h>

9#include <Adafruit_ILI9341.h>

11#define TFT_CS 10

12#define TFT_DC 9

13#define TFT_RST 8

15Adafruit_ILI9341 tft = Adafruit_ILI9341(TFT_CS, TFT_DC, TFT_RST);

17void setup() {

18 tft.begin();

19 tft.fillScreen(ILI9341_BLACK);

20 tft.setTextColor(ILI9341_WHITE);

21 tft.setTextSize(2);

22 tft.setCursor(10, 10);

23 tft.println("Hello, Ekostra!");

24}

26void loop() {

27 tft.fillRect(10, 40, 100, 20, ILI9341_BLACK);

28 tft.setCursor(10, 40);

29 tft.print(millis() / 1000);

30 tft.print(" sec");

31 delay(500);

32}

📄 File: 2.4_inch_lcd_display_tft_touch_screen_shield_240x320_18-bit_spfd5408_display_controller_arduino_uno_r3/mega2560_-_arduino_mega.inoArduino Mega

874 characters
