Arduino Boards

Arduino UNO R4 Minima

In stock

EGP850.00
SKU: C08-11-MINIMA
Weight

30.0000 g

Model

Arduino UNO R4 Minima

Memory

256 kB Flash Memory 32 kB SRAM 8 kB Data Memory (EEPROM)

Pins

14x digital pins (GPIO) , D0-D13 6x analog input pins (ADC) , A0-A5 6x PWM pins: D3 , D5 , D6 , D9 , D10 , D11

Peripherals

Capacitive Touch Sensing Unit (CTSU) USB 2.0 Full-Speed Module (USBFS) up to 14-bit ADC up to 12-bit DAC Operational Amplifier (OPAMP)

Power

Recommended input voltage (VIN) is 6-24 V 5 V operating voltage Barrel jack connected to VIN pin Power via USB-C® at 5 V Schottky diodes for overvoltage and reverse polarity protection

Communication

1x UART (pin D0 , D1) 1x SPI (pin D10-D13 , ICSP header) 1x I²C (pin A4 , A5 , SDA , SCL) 1x CAN (pin D4 , D5 , external transceiver is required)

Arduino UNO R4 WiFi

In stock

EGP1,400.00
SKU: C08-11-WIFI
Weight

30.0000 g

Model

Arduino UNO R4 WiFi

Overview

48 MHz Arm Cortex-M4 microprocessor with a floating point unit (FPU) 5 V operating voltage Real-time Clock (RTC) Memory Protection Unit (MPU) Digital-to-analog Converter (DAC)

Memory

256 kB Flash Memory 32 kB SRAM 8 kB Data Memory (EEPROM)

Peripherals

Capacitive Touch Sensing Unit (CTSU) USB 2.0 Full-Speed Module (USBFS) 14-bit ADC Up to 12-bit DAC Operational Amplifier (OPAMP)

Power

Operating voltage for RA4M1 is 5 V Recommended input voltage (VIN) is 6-24 V Barrel jack connected to VIN pin (6-24 V) Power via USB-C at 5 V Schottky diodes for overvoltage and reverse polarity protection

Communication

1x UART (pin D0 , D1) 1x SPI (pin D10-D13 , ICSP header) 1x I2C (pin A4 , A5 , SDA , SCL) 1x CAN (pin D4 , D5 , external transceiver is required)

Wi-Fi

Wi-Fi support with 802.11 b/g/n standard (Wi-Fi® 4) Bit rate at up to 150 Mbps 2.4 GHz band

Bluetooth

Bluetooth 5

Arduino mega 2560 ATmega2560-16AU Board

In stock

Original price was: EGP1,740.00.Current price is: EGP1,300.00.
SKU: AA005
Weight

35 g

Dimensions

110 × 53 × 15 mm

Brand

Arduino

Microcontroller

ATmega2560

EEPROM

4KB

Flash Memory

256 KB

SRAM

8

Analog I/O Pins

16

Digital I/O Pins

54 digital input / output terminals (14 of which have programmable PWM outputs)

PWM Output Pins

15

DC Current per I/O Pin (mA)

50

Architecture

Advanced RISC Architecture

Clock Speed

16 MHz

Input Voltage(Recommended)

7-12V

Operating Voltage (VDC)

5

Color:

Blue

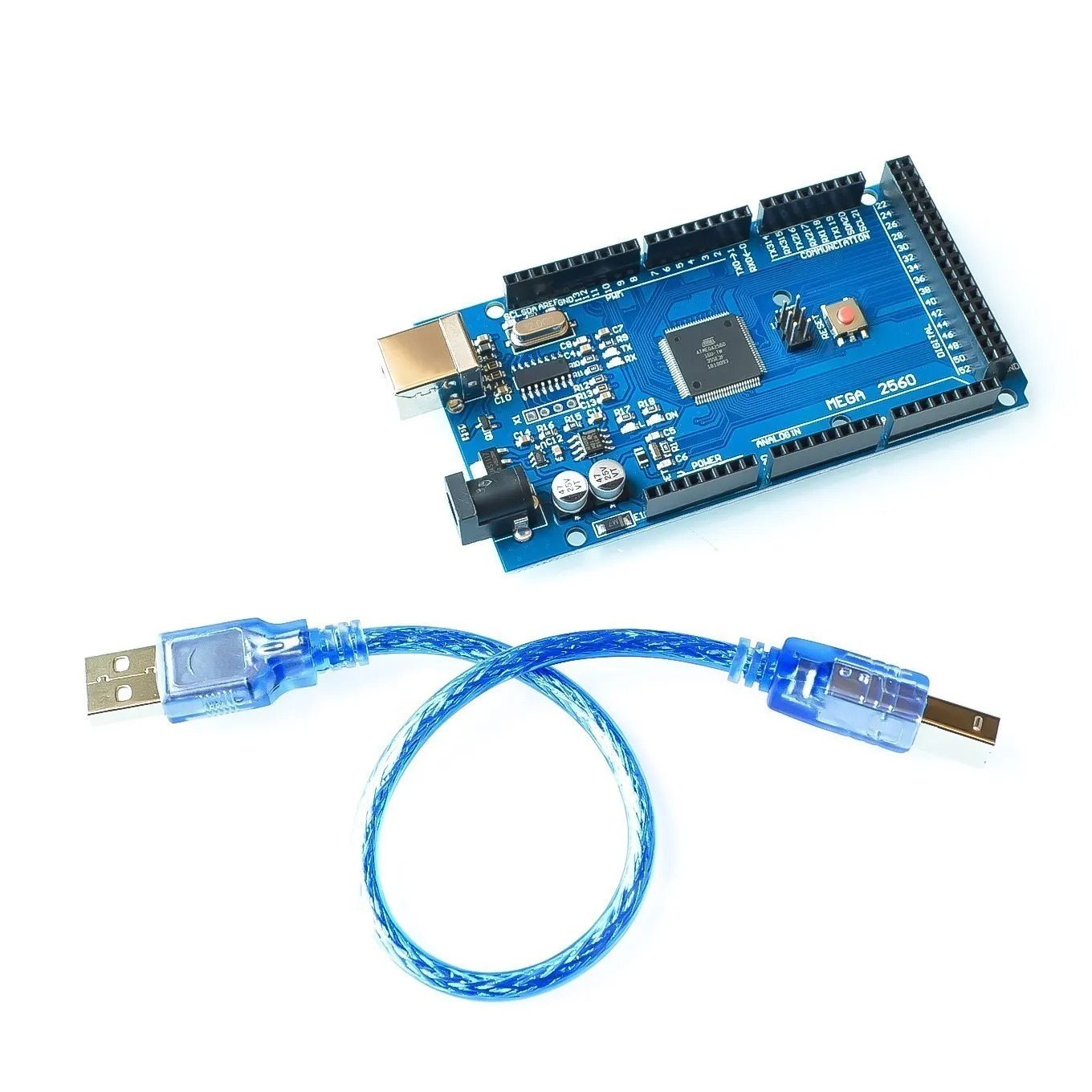

Arduino MEGA 2560 R3 with CH340 Chip

In stock

Original price was: EGP1,500.00.Current price is: EGP1,250.00.
SKU: AA006
Weight

35.0000 g

Dimensions

110 × 53 × 15 mm

Brand

Arduino

Digital I/O Pins

54 (of which 15 provide PWM output)

Analog Input Pins

16

Flash Memory

256 KB of which 8 KB used by boot-loader.

Microcontroller

ATmega2560

Operating Voltage

6~12V

PWM Output Pins

14

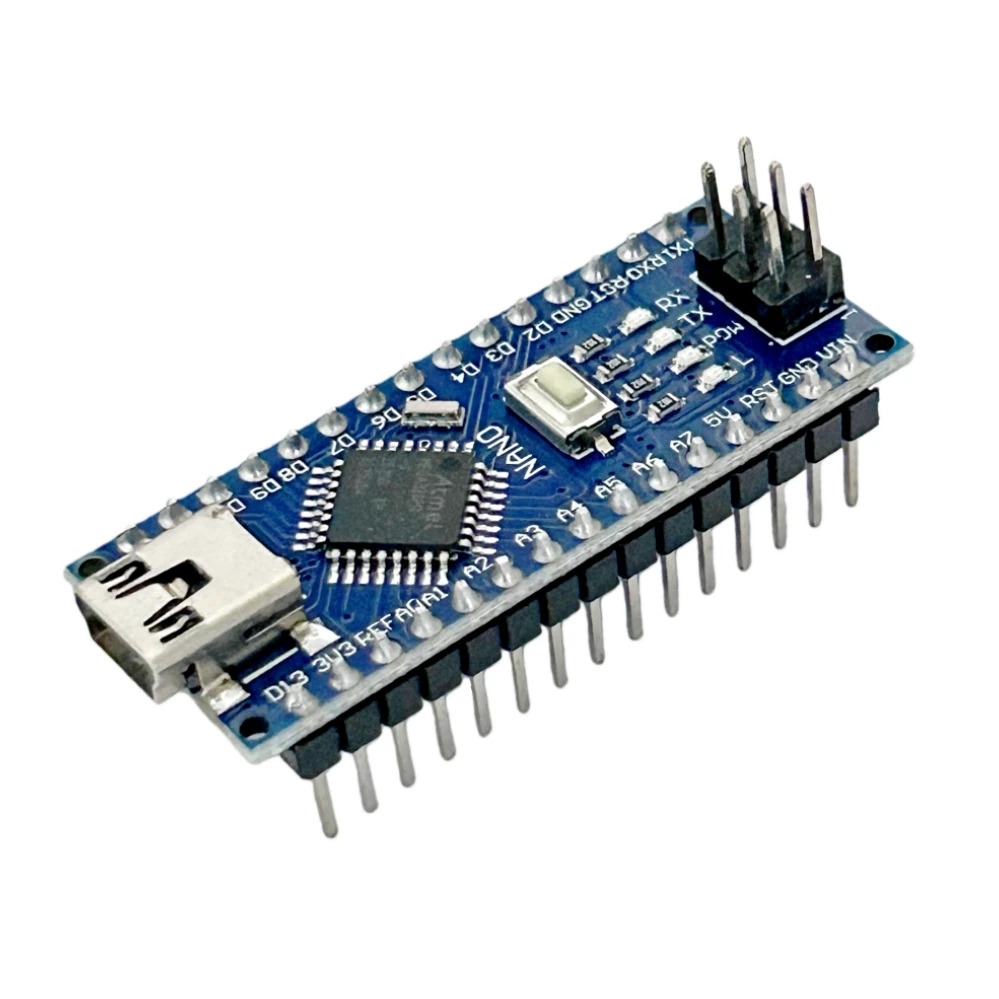

Arduino Nano V3.0 CH340 Chip Board,Atmega328P

In stock

EGP250.00
SKU: AA008
Weight

8.0000 g

Clock Speed

16 MHz

Color

Blue

DC Current per I/O Pin (mA)

40

Digital I/O Pins

22

EEPROM

1KB

Flash Memory

32 KB

Input Voltage(Recommended)

7-12 V

Microcontroller

ATmega328

Operating Voltage (VDC)

5

Power Consumption (Watt)

1

PWM Output Pins

6

SRAM

2

Brand

Arduino
