Arduino Nano is a small motherboard based on the ATmega328P. It has about the same features as the Arduino Duemilanove, only it lacks a DC power jack. Arduino IDE application is needed
for programming . The Arduino Nano is powered by the Mini-B USB connection. The power supply automatically selects the high voltage source. The operating voltage is in the range of 5V – 12V. However, the recommended operating voltage should be more than 7V. 9V batteries will be sufficient for operation.
In this clone version of Arduino Nano board, CH340 IC is used instead of Standard FTDI or 16U2 chips.
Thus, the cost was reduced, but there was no change in performance.
Features:
- Micro-Controller: ATmega328P
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Digital I/O Pins: 14 (6 of them to provide PWM output)
- Analog Input Pins: 8
- Flash Memory : 32 KB
- Operating Frequency: 16 MHz
- Dimensions : 19x43mm
Package Included:

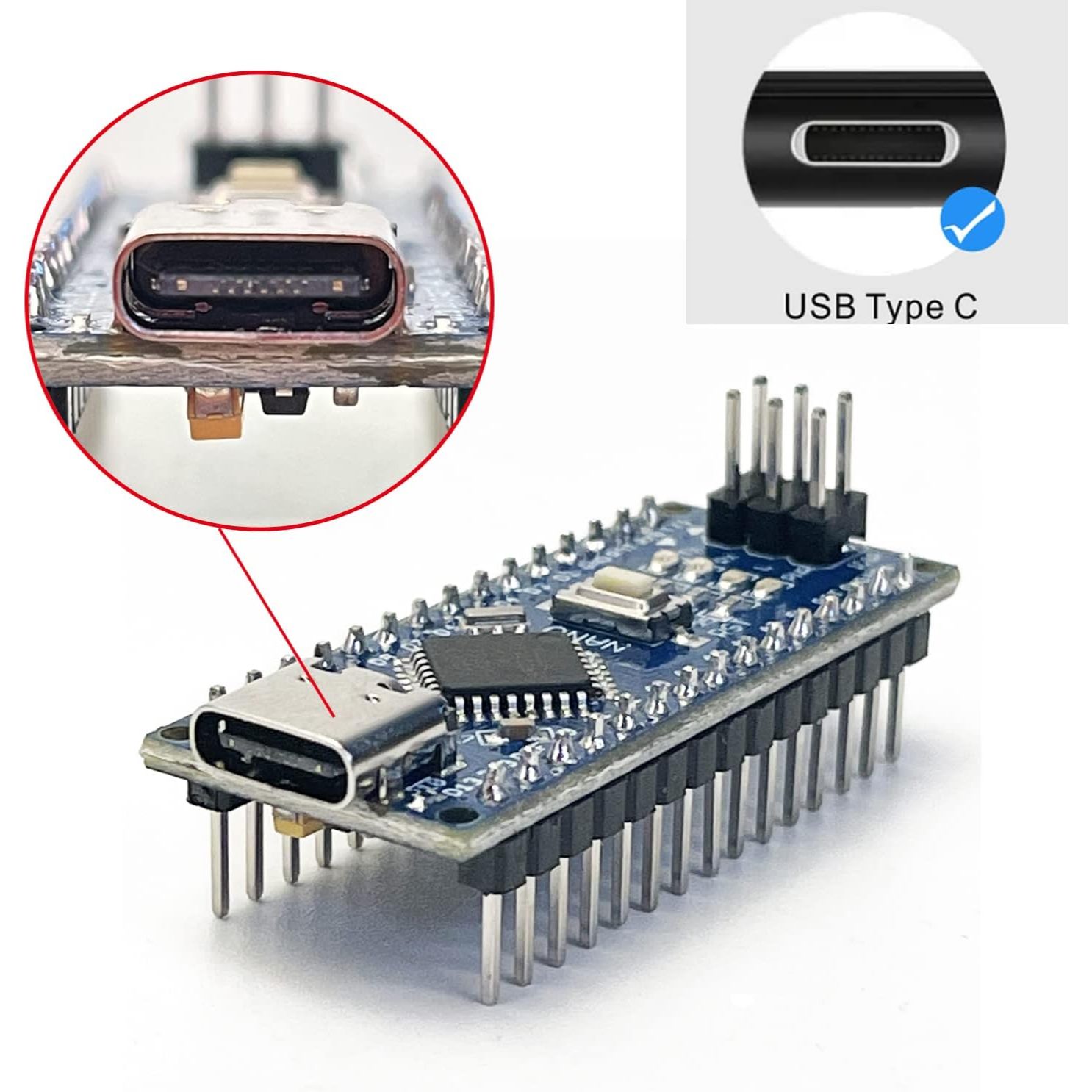

- 1 x Arduino Nano Clone CH340
- 1 x USB C Cable
