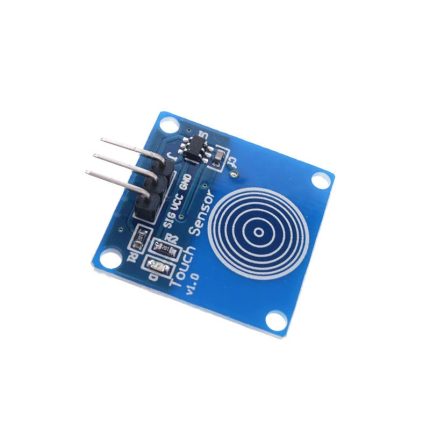

Touch Sensor Switch Module

🖐️ Capacitive touch sensor switch module
🔁 Touch to trigger ON/OFF digital output
⚡ Works with 3.3V/5V microcontrollers
📈 Stable sensitivity for reliable touch detection
🧩 Ideal for touch buttons, lamps, and smart control panels
🛠️ Easy wiring: VCC, GND, OUT (and touch pad)
📦 Compact board—perfect for prototyping
✅ Great for Arduino, ESP32, and IoT projects

SKU: J03-13 Categories: Electronic Modules, Electronic Switches/Keypads Tags: Electronic Modules, Electronic Switches/Keypads

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

25,00 EGP

Compare

8 People watching this product now!

Payment Methods:

Description

Touch Sensor Switch Module is a capacitive touch input board that works like a button—just touch the pad to trigger an output signal. It’s ideal for modern touch controls in smart home devices, lamps, appliances, DIY electronics, and microcontroller projects. Compared to mechanical buttons, it offers silent operation, longer life, and a clean user experience.

Key Features

Capacitive touch activation (touch to switch)
Works as a digital touch button (ON/OFF signal output)
Fast response and stable sensitivity
Long life (no mechanical wear)
Easy to use with Arduino, ESP32, ESP8266, STM32, etc.
Compact module size for embedded designs

Full Specifications (Typical)

Exact values may vary depending on the module model (TTP223 or similar).

Electrical

Operating Voltage: typically 2V–5.5V (commonly 3.3V/5V compatible)
Output Type: Digital output (HIGH/LOW)
Output Mode:
- Momentary (active only while touched) or
- Toggle (touch to ON, touch again to OFF) — module dependent / jumper options
Current Consumption: low power (ideal for battery devices)

Module Pins (Common)

VCC – power input
GND – ground
OUT / SIG – digital output signal

Touch Operation

Touch pad can be used directly or through a thin non-metal cover (plastic/glass)
Sensitivity depends on pad size, wiring, and mounting surface

Applications

Touch lamps and LED control
Smart switches and home automation panels
DIY appliances and control boxes
Door access panels and user interfaces
Arduino/ESP32 touch input projects
Interactive projects and educational kits

Used In

ESP32/Arduino projects (touch as a button input)
Relay control (through transistor/relay module)
IoT devices and smart furniture controls

Package Includes

1× Touch Sensor Switch Module

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
Touch Module	VCC/GND/OUT	3.3-5V / GND / board digital pin

📟

Touch Sensor Switch Module

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

Touch Sensor Switch Module - Arduino Uno

Touch Sensor Switch Module - Arduino Nano

Touch Sensor Switch Module - Arduino Mega

Touch Sensor Switch Module - ESP32

Touch Sensor Switch Module - ESP8266

Touch Sensor Switch Module - STM32

Touch Sensor Switch Module - Raspberry Pi Pico

📄 File: touch_sensor_switch_module_-_arduino_uno.inoArduino Uno

295 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital OUT pin 2 on Arduino Uno

6#define TOUCH_PIN 2

8void setup() {

9 Serial.begin(115200);

10 pinMode(TOUCH_PIN, INPUT);

11}

13void loop() {

14 Serial.println(digitalRead(TOUCH_PIN) == HIGH ? "Touched" : "Not touched");

15 delay(100);

16}

📄 File: touch_sensor_switch_module_-_arduino_nano.inoArduino Nano

296 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital OUT pin 2 on Arduino Nano

6#define TOUCH_PIN 2

8void setup() {

9 Serial.begin(115200);

10 pinMode(TOUCH_PIN, INPUT);

11}

13void loop() {

14 Serial.println(digitalRead(TOUCH_PIN) == HIGH ? "Touched" : "Not touched");

15 delay(100);

16}

📄 File: touch_sensor_switch_module_-_arduino_mega.inoArduino Mega

296 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital OUT pin 2 on Arduino Mega

6#define TOUCH_PIN 2

8void setup() {

9 Serial.begin(115200);

10 pinMode(TOUCH_PIN, INPUT);

11}

13void loop() {

14 Serial.println(digitalRead(TOUCH_PIN) == HIGH ? "Touched" : "Not touched");

15 delay(100);

16}

📄 File: touch_sensor_switch_module_-_esp32.inoESP32

289 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital OUT pin 4 on ESP32

6#define TOUCH_PIN 4

8void setup() {

9 Serial.begin(115200);

10 pinMode(TOUCH_PIN, INPUT);

11}

13void loop() {

14 Serial.println(digitalRead(TOUCH_PIN) == HIGH ? "Touched" : "Not touched");

15 delay(100);

16}

📄 File: touch_sensor_switch_module_-_esp8266.inoESP8266

293 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital OUT pin D4 on ESP8266

6#define TOUCH_PIN D4

8void setup() {

9 Serial.begin(115200);

10 pinMode(TOUCH_PIN, INPUT);

11}

13void loop() {

14 Serial.println(digitalRead(TOUCH_PIN) == HIGH ? "Touched" : "Not touched");

15 delay(100);

16}

📄 File: touch_sensor_switch_module_-_stm32.inoSTM32

293 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital OUT pin PB4 on STM32

6#define TOUCH_PIN PB4

8void setup() {

9 Serial.begin(115200);

10 pinMode(TOUCH_PIN, INPUT);

11}

13void loop() {

14 Serial.println(digitalRead(TOUCH_PIN) == HIGH ? "Touched" : "Not touched");

15 delay(100);

16}

📄 File: touch_sensor_switch_module_-_raspberry_pi_pico.inoRaspberry Pi Pico

301 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital OUT pin 2 on Raspberry Pi Pico

6#define TOUCH_PIN 2

8void setup() {

9 Serial.begin(115200);

10 pinMode(TOUCH_PIN, INPUT);

11}

13void loop() {

14 Serial.println(digitalRead(TOUCH_PIN) == HIGH ? "Touched" : "Not touched");

15 delay(100);

16}

Project Notes:

Capacitive touch switch, digital output.

Specification

WeightWeight	8 g
Dimensions	4 × 3 × 1,5 cm
Product Name	Touch Sensor Switch Module
Category	Sensor / Module → Touch Sensor
Function	Capacitive Touch On/Off Switch
Operating Voltage	3.3–5 V (typical)
Output Type	Digital Output (HIGH/LOW)
Interface Pins	VCC, GND, OUT
Sensitivity	Adjustable / Fixed (variant-dependent)
Indicator	LED (typical)
Applications	touch buttons, smart home switches, Arduino/ESP projects, DIY control panels
