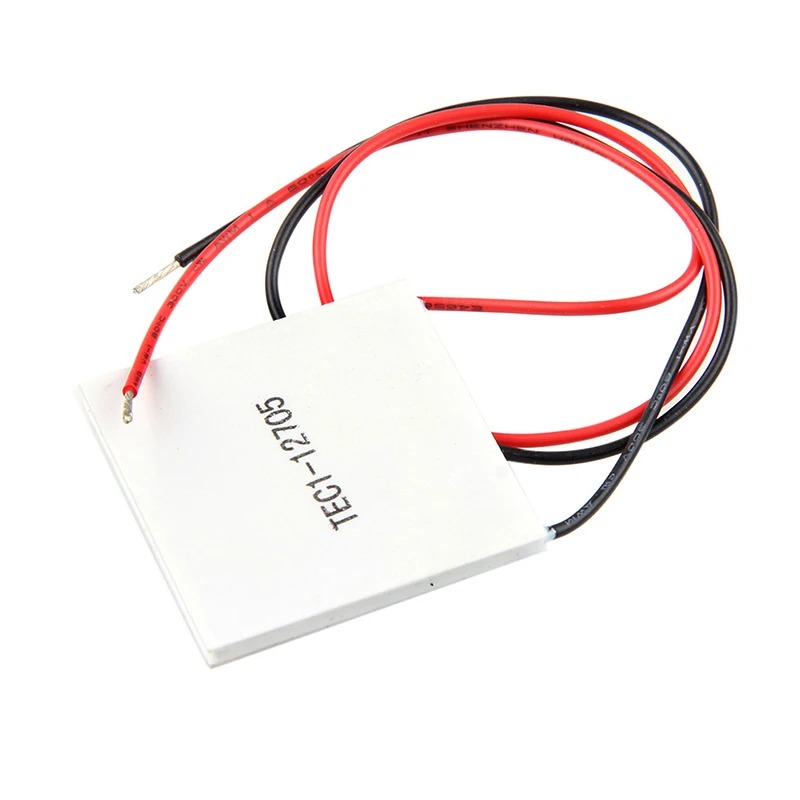

12V Peltier TEC1-12705 Cooler Module

Model number: TEC1-12705
Operating Voltage: 12V
Maximum Voltage- Umax (V) : 15V
Maximum Current- Imax (A) : 5.2A
Maximum Power : 54 W
Power Cord: 25cm

SKU: TEC1-12705 Category: Electronic Modules Tags: Electronic Modules, heatsink, Peltier Module, thermoelectric/

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

220,00 EGP

Compare

20 People watching this product now!

Payment Methods:

Description

The 12V Peltier TEC1-12705 Cooler Module is a thermoelectric cooling device used to transfer heat from one side to another, providing efficient cooling for small electronic devices. Powered by a 12V DC supply, it utilizes the Peltier effect to create a temperature difference, with one side becoming cold and the other hot. This module is ideal for cooling applications like portable coolers, small electronic devices, and temperature-controlled systems.

Short Specifications:

Voltage: 12V DC
Current: 5A (max)
Power: 60W
Temperature Differential: Up to 67°C
Size: 40mm x 40mm
Application: Electronic cooling, small devices, portable coolers

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
Peltier + MOSFET	PWM in / Load out	board PWM pin -> MOSFET gate; Peltier on its own 12V supply

📟

12V Peltier TEC1-12705 Cooler Module

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

12V Peltier TEC1-12705 Cooler Module - Arduino Uno

12V Peltier TEC1-12705 Cooler Module - Arduino Nano

12V Peltier TEC1-12705 Cooler Module - Arduino Mega

12V Peltier TEC1-12705 Cooler Module - ESP32

12V Peltier TEC1-12705 Cooler Module - ESP8266

12V Peltier TEC1-12705 Cooler Module - STM32

12V Peltier TEC1-12705 Cooler Module - Raspberry Pi Pico

📄 File: 12v_peltier_tec1-12705_cooler_module_-_arduino_uno.inoArduino Uno

437 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// This is an ACTUATOR (heat pump), not a sensor - it draws up to 5A and needs a MOSFET/motor driver between it and any GPIO pin. PWM pin 9 on Arduino Uno drives the MOSFET gate.

6#define PELTIER_PWM_PIN 9

8void setup() {

9 pinMode(PELTIER_PWM_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(PELTIER_PWM_PIN, 200);

14 delay(5000);

15 analogWrite(PELTIER_PWM_PIN, 0);

16 delay(5000);

17}

📄 File: 12v_peltier_tec1-12705_cooler_module_-_arduino_nano.inoArduino Nano

438 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// This is an ACTUATOR (heat pump), not a sensor - it draws up to 5A and needs a MOSFET/motor driver between it and any GPIO pin. PWM pin 9 on Arduino Nano drives the MOSFET gate.

6#define PELTIER_PWM_PIN 9

8void setup() {

9 pinMode(PELTIER_PWM_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(PELTIER_PWM_PIN, 200);

14 delay(5000);

15 analogWrite(PELTIER_PWM_PIN, 0);

16 delay(5000);

17}

📄 File: 12v_peltier_tec1-12705_cooler_module_-_arduino_mega.inoArduino Mega

438 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// This is an ACTUATOR (heat pump), not a sensor - it draws up to 5A and needs a MOSFET/motor driver between it and any GPIO pin. PWM pin 9 on Arduino Mega drives the MOSFET gate.

6#define PELTIER_PWM_PIN 9

8void setup() {

9 pinMode(PELTIER_PWM_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(PELTIER_PWM_PIN, 200);

14 delay(5000);

15 analogWrite(PELTIER_PWM_PIN, 0);

16 delay(5000);

17}

📄 File: 12v_peltier_tec1-12705_cooler_module_-_esp32.inoESP32

433 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// This is an ACTUATOR (heat pump), not a sensor - it draws up to 5A and needs a MOSFET/motor driver between it and any GPIO pin. PWM pin 25 on ESP32 drives the MOSFET gate.

6#define PELTIER_PWM_PIN 25

8void setup() {

9 pinMode(PELTIER_PWM_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(PELTIER_PWM_PIN, 200);

14 delay(5000);

15 analogWrite(PELTIER_PWM_PIN, 0);

16 delay(5000);

17}

📄 File: 12v_peltier_tec1-12705_cooler_module_-_esp8266.inoESP8266

435 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// This is an ACTUATOR (heat pump), not a sensor - it draws up to 5A and needs a MOSFET/motor driver between it and any GPIO pin. PWM pin D1 on ESP8266 drives the MOSFET gate.

6#define PELTIER_PWM_PIN D1

8void setup() {

9 pinMode(PELTIER_PWM_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(PELTIER_PWM_PIN, 200);

14 delay(5000);

15 analogWrite(PELTIER_PWM_PIN, 0);

16 delay(5000);

17}

📄 File: 12v_peltier_tec1-12705_cooler_module_-_stm32.inoSTM32

435 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// This is an ACTUATOR (heat pump), not a sensor - it draws up to 5A and needs a MOSFET/motor driver between it and any GPIO pin. PWM pin PA8 on STM32 drives the MOSFET gate.

6#define PELTIER_PWM_PIN PA8

8void setup() {

9 pinMode(PELTIER_PWM_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(PELTIER_PWM_PIN, 200);

14 delay(5000);

15 analogWrite(PELTIER_PWM_PIN, 0);

16 delay(5000);

17}

📄 File: 12v_peltier_tec1-12705_cooler_module_-_raspberry_pi_pico.inoRaspberry Pi Pico

445 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// This is an ACTUATOR (heat pump), not a sensor - it draws up to 5A and needs a MOSFET/motor driver between it and any GPIO pin. PWM pin 15 on Raspberry Pi Pico drives the MOSFET gate.

6#define PELTIER_PWM_PIN 15

8void setup() {

9 pinMode(PELTIER_PWM_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(PELTIER_PWM_PIN, 200);

14 delay(5000);

15 analogWrite(PELTIER_PWM_PIN, 0);

16 delay(5000);

17}

Project Notes:

Thermoelectric cooler - actuator, not sensor.

Specification

WeightWeight	8 g
Dimensions	4 × 3 × 1,5 cm
model	TEC1-12705
operating-voltage-vdc	12
maximum-voltagev	15
max-operating-current-a	5.2
maximum-power-w	54
internal-resistance%cf%89	2.4 to 2.7
wire-lengthmm	250
