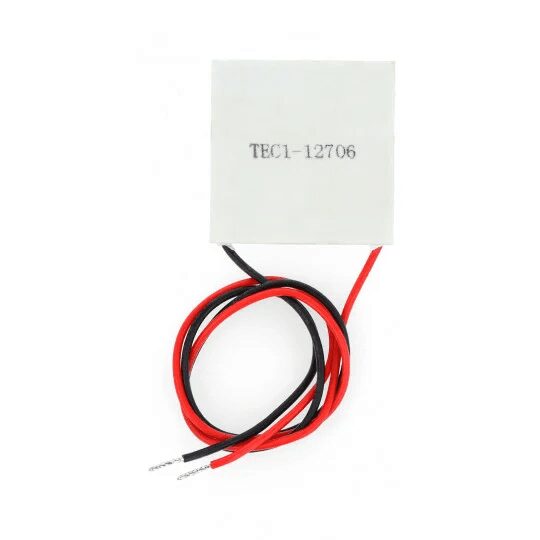

12V Peltier TEC1-12706 Cooler Module

Model number: TEC1-12706
Operating Voltage: 12V
Maximum Voltage Umax (V) : 15.4V
Maximum Current Imax (A) : 6A
Maximum Power: 92 W
Maximum Temperature: 138°C
Power Cord: 200mm

SKU: TEC1-12706 Category: Electronic Modules Tag: Electronic Modules

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

150,00 EGP

Compare

10 People watching this product now!

Payment Methods:

Description

The 12V Peltier TEC1-12706 Cooler Module is a thermoelectric cooler designed to provide efficient heat transfer and cooling for various applications. It operates on a 12V DC power supply and uses the Peltier effect to create a temperature differential, where one side becomes cold and the other side becomes hot. With a maximum current of 6A and a power rating of 72W, this module is suitable for cooling small electronics, portable cooling systems, and temperature control in DIY projects.

Short Specifications:

Voltage: 12V DC
Current: 6A (max)
Power: 72W
Temperature Differential: Up to 65°C
Size: 40mm x 40mm
Application: Cooling electronics, small devices, portable coolers, and DIY temperature control systems.

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
Peltier + MOSFET	PWM in / Load out	board PWM pin -> MOSFET gate; Peltier on its own 12V supply

📟

12V Peltier TEC1-12706 Cooler Module

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

12V Peltier TEC1-12706 Cooler Module - Arduino Uno

12V Peltier TEC1-12706 Cooler Module - Arduino Nano

12V Peltier TEC1-12706 Cooler Module - Arduino Mega

12V Peltier TEC1-12706 Cooler Module - ESP32

12V Peltier TEC1-12706 Cooler Module - ESP8266

12V Peltier TEC1-12706 Cooler Module - STM32

12V Peltier TEC1-12706 Cooler Module - Raspberry Pi Pico

📄 File: 12v_peltier_tec1-12706_cooler_module_-_arduino_uno.inoArduino Uno

437 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// This is an ACTUATOR (heat pump), not a sensor - it draws up to 6A and needs a MOSFET/motor driver between it and any GPIO pin. PWM pin 9 on Arduino Uno drives the MOSFET gate.

6#define PELTIER_PWM_PIN 9

8void setup() {

9 pinMode(PELTIER_PWM_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(PELTIER_PWM_PIN, 200);

14 delay(5000);

15 analogWrite(PELTIER_PWM_PIN, 0);

16 delay(5000);

17}

📄 File: 12v_peltier_tec1-12706_cooler_module_-_arduino_nano.inoArduino Nano

438 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// This is an ACTUATOR (heat pump), not a sensor - it draws up to 6A and needs a MOSFET/motor driver between it and any GPIO pin. PWM pin 9 on Arduino Nano drives the MOSFET gate.

6#define PELTIER_PWM_PIN 9

8void setup() {

9 pinMode(PELTIER_PWM_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(PELTIER_PWM_PIN, 200);

14 delay(5000);

15 analogWrite(PELTIER_PWM_PIN, 0);

16 delay(5000);

17}

📄 File: 12v_peltier_tec1-12706_cooler_module_-_arduino_mega.inoArduino Mega

438 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// This is an ACTUATOR (heat pump), not a sensor - it draws up to 6A and needs a MOSFET/motor driver between it and any GPIO pin. PWM pin 9 on Arduino Mega drives the MOSFET gate.

6#define PELTIER_PWM_PIN 9

8void setup() {

9 pinMode(PELTIER_PWM_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(PELTIER_PWM_PIN, 200);

14 delay(5000);

15 analogWrite(PELTIER_PWM_PIN, 0);

16 delay(5000);

17}

📄 File: 12v_peltier_tec1-12706_cooler_module_-_esp32.inoESP32

433 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// This is an ACTUATOR (heat pump), not a sensor - it draws up to 6A and needs a MOSFET/motor driver between it and any GPIO pin. PWM pin 25 on ESP32 drives the MOSFET gate.

6#define PELTIER_PWM_PIN 25

8void setup() {

9 pinMode(PELTIER_PWM_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(PELTIER_PWM_PIN, 200);

14 delay(5000);

15 analogWrite(PELTIER_PWM_PIN, 0);

16 delay(5000);

17}

📄 File: 12v_peltier_tec1-12706_cooler_module_-_esp8266.inoESP8266

435 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// This is an ACTUATOR (heat pump), not a sensor - it draws up to 6A and needs a MOSFET/motor driver between it and any GPIO pin. PWM pin D1 on ESP8266 drives the MOSFET gate.

6#define PELTIER_PWM_PIN D1

8void setup() {

9 pinMode(PELTIER_PWM_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(PELTIER_PWM_PIN, 200);

14 delay(5000);

15 analogWrite(PELTIER_PWM_PIN, 0);

16 delay(5000);

17}

📄 File: 12v_peltier_tec1-12706_cooler_module_-_stm32.inoSTM32

435 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// This is an ACTUATOR (heat pump), not a sensor - it draws up to 6A and needs a MOSFET/motor driver between it and any GPIO pin. PWM pin PA8 on STM32 drives the MOSFET gate.

6#define PELTIER_PWM_PIN PA8

8void setup() {

9 pinMode(PELTIER_PWM_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(PELTIER_PWM_PIN, 200);

14 delay(5000);

15 analogWrite(PELTIER_PWM_PIN, 0);

16 delay(5000);

17}

📄 File: 12v_peltier_tec1-12706_cooler_module_-_raspberry_pi_pico.inoRaspberry Pi Pico

445 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// This is an ACTUATOR (heat pump), not a sensor - it draws up to 6A and needs a MOSFET/motor driver between it and any GPIO pin. PWM pin 15 on Raspberry Pi Pico drives the MOSFET gate.

6#define PELTIER_PWM_PIN 15

8void setup() {

9 pinMode(PELTIER_PWM_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(PELTIER_PWM_PIN, 200);

14 delay(5000);

15 analogWrite(PELTIER_PWM_PIN, 0);

16 delay(5000);

17}

Project Notes:

Thermoelectric cooler - actuator, not sensor.

Specification

WeightWeight	8 g
Dimensions	40 × 40 × 36 cm
max-operating-current-a	6.4
maximum-power-w	92
maximum-temperaturec	138
internal-resistance%cf%89	1.98
wire-lengthmm	200
