Power Supply (24VDC-3A)
Power Supply (24VDC-3A)
1. Power: 72W (Class)
2. Output Voltage: 24V DC
3. Output Current: 3A (Max)
4. Input Voltage: 110V/220V AC (Selectable)
5. Cooling: Fanless (Natural Convection)
6. Certifications: CE | RoHS
Apple Shopping Event
700,00 EGP
Payment Methods:
Description
This Power Supply (24VDC-3A) is a switching mode power supply (SMPS) rated in the 72W–75W class, delivering a fixed 24V DC output at up to 3A. Input accepts either 110V AC or 220V AC, typically selectable via an internal switch.
The output voltage can be fine-tuned within ±10% (approximately 21.6V–26.4V) via an onboard +V ADJ potentiometer, giving some flexibility to match specific load requirements. Built-in protections cover short circuit, overload, and overvoltage conditions.

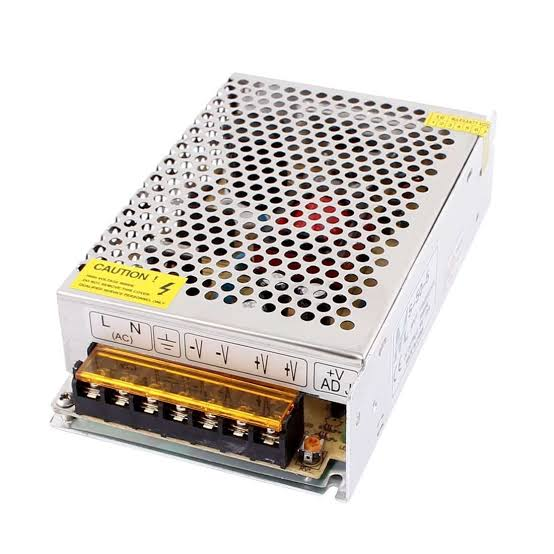

Housed in an aluminum, vented metal case with fanless natural convection cooling, this supply connects via a screw terminal block with a safety cover (L, N, GND, -V, +V), and carries CE and RoHS certification.
Features:
- Fixed 24V DC output, up to 3A (72W class)
- Dual input voltage: 110V AC / 220V AC selectable
- ±10% adjustable output via onboard potentiometer
- Short circuit, overload, and overvoltage protection
- Fanless natural convection cooling
- Aluminum vented metal case
- CE and RoHS certified
- Suited for industrial automation, 3D printers, and LED strips
Specification
Specification
| WeightWeight | 60 g |
|---|---|
| Dimensions | 7 × 5 × 3 cm |
| Power | 72W (Often marketed 72W~75W class) |
| Output Voltage | 24V DC |
| Output Current | 3A (Max) |
| Input Voltage | 110V AC, 220V AC (Selectable) |
| Supply Type | Switching Mode Power Supply (SMPS) |
| Shell Material | Aluminum, Vented Metal Case |
| Cooling Type | Natural Convection (Fanless) |
| Key Protections | Short Circuit, Overload, Overvoltage |
| Adjustable Output Voltage Range | ±10% (approx. 21.6V~26.4V) |
| Terminal Type | Screw Terminal Block with Safety Cover (L, N, GND, -V, +V) |
| Certifications | CE, RoHS |
