DC 3–6V High Voltage Step up/Booster Module
250,00 EGP
10
People watching this product now!
Description
هذا الوصف والمواصفات تمت كتابته بمساعدة الذكاء الاصطناعي، يُرجى مراجعته قبل الشراء.
برجاء تأكيد الطلب على
الواتساب
للتأكد من توفر المخزون قبل الدفع
Specification
General
| WeightWeight | 0,0000 g |
|---|---|
| Module Type | High Voltage Pulse Generator / Step-Up Booster |
| Input Voltage | 3V ~ 6V DC |
| Input Current | 2A ~ 5A |
| High Voltage Output | Up to 400kV (Pulse DC) |
| High Voltage Discharge Distance | 10mm ~ 20mm |
| Wiring Configuration (Input) | Thin Red Wire (Positive +), Thin Green Wire (Negative -) |
| Wiring Configuration (Output) | Thick Translucent Wires (High Voltage Arc Output) |

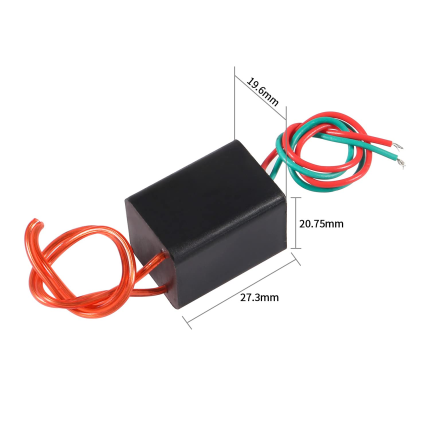

| Dimensions | 27.3mm (L) x 19.6mm (W) x 20.75mm (H) |
| Encapsulation | Epoxy Resin Potted (Provides insulation and shock resistance) |
| Applications | DIY Electronic Lighters, Science Fair High-Voltage Experiments, Spark Gap Generators, Ozone Generators, Ignition Systems |
| Note for handling | Always advise customers to test the discharge distance starting from short to long, and to avoid powering the module on continuously for more than a few seconds at a time to prevent burning out the internal coils. Ready for the next component! |
