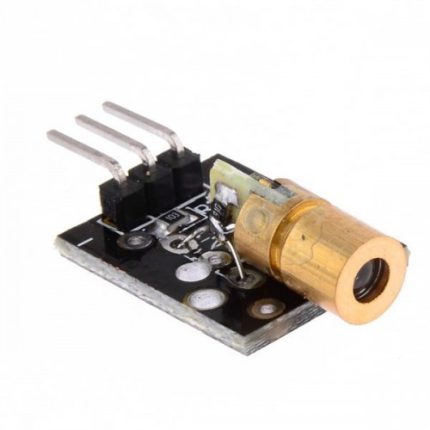

Laser Module 650NM 5V

  1. Voltage: 3.0 V – 5 V.
  2. Driver: APC circuit.
  3. Line length: about 135 mm.
  4. Transmit power: 58mW.
  5. Operating Current: 40mA.
  6. Operating Current: 40mA.
  7. Operating temperature: -36◦C ~ 65◦C.

EGP35.00

In stock

SKU: AB021 Categories: ,
Estimated delivery dates: 12-12-2024 - 16-12-2024

The LASER MODULE 650NM 5V head is composed of a light-emitting tube, condenser lens, and adjustable copper sleeve and it is assembled when delivered, the focal length of the lens is adjusted glued by strong glue stick, which can work directly after connecting to a 5V DC power supply.

Laser Diode Module is a breadboard friendly, low cost having the wavelength of 650nm and operating voltage of 5V. The laser head is composed of a light-emitting tube, condenser lens and adjustable copper sleeve and it is assembled when delivered, the focal length of the lens is adjusted glued by strong glue stick, which can work directly after connecting to a 5v dc power supply.

Pay attention to the laser cell to prevent from being burnt or battery explosion due to a short circuit when removing the battery.

PINOUT

1 – GND
2 – 5V
3 – S (Control: HIGH = Laser on)

lasermodule_diag

Applications :
  1. Laser test tools.
  2. Concentricity positioning.
  3. Medical equipment positioning.
  4. Production of signal equipment.
  5. Use for DIY or robots.
  6. All kinds of level meters.
  7. Laser projector.
  8. Laser toys, etc.
Warning!!! This is a low power laser device, however as with all laser devices care should be taken when in use. You should never look directly in to its beam or point the laser at another person. Doing so may cause permanent eye damage. This item is not suitable for children.

Package Includes :

1 x LASER MODULE 650NM 5V.

0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “Laser Module 650NM 5V”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Get a discount when you buy more

Specification

Dimensions 20 × 15 mm
Operating Voltage (VDC)

3 ~ 5

Laser Output Type

Red Laser Straight

Driver

APC circuit

Line Length

135 mm

Transmit Power

58mW

Max. Operating Current (mA)

40

Operating Temperature (°C):

-30 to 60
