DC-DC Step-Up Power Converter Module XL6009

  1. The performance is much higher than LM2577.
  2. Non-isolated Boost converter.
  3. It has a non-synchronous rectifier.
  4. Low ultra wide input voltage 3 v ~ 32 v, the best is 5 ~ 32 v working voltage range;
  5. Low ultra wide output voltage 5 v ~ 35 v;

EGP65.00

In stock

SKU: AA1617 Categories: ,
Estimated delivery dates: 12-12-2024 - 16-12-2024

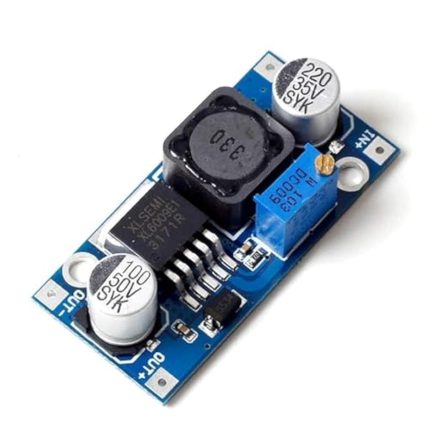

This XL6009 DC-DC Step-Up Converter Performance Ultra LM2577 Booster Circuit Board is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency.

The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance.

It equips 4A high-efficiency MOSFET switches, so as to provide a conversion efficiency of up to 94%.

High switching frequency 400KHz, you can use a small -capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller

Pins
  • IN+ input positive
  • IN- input negative!
  • OUT+ output positive
  • OUT- output negative

Features :

  1. The performance is much higher than LM2577.
  2. Non-isolated Boost converter.
  3. It has a non-synchronous rectifier.
  4. Small and Handy voltage regulator module.

Package Includes :

1 x CN6009 XL6009 DC-DC Step-up converter module.

0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “DC-DC Step-Up Power Converter Module XL6009”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Get a discount when you buy more

Specification

Input Voltage (V)

3 to 32

Input Current(A)

4

Output Voltage(V)

5 ~ 35

Output Ripple(mV)

50

Efficiency

94%

Switching Frequency(KHz)

400

Load Regulation

±0.5%

Voltage Regulation

±0.5%

Length (mm):

43

Width (mm):

20

Height (mm):

12
