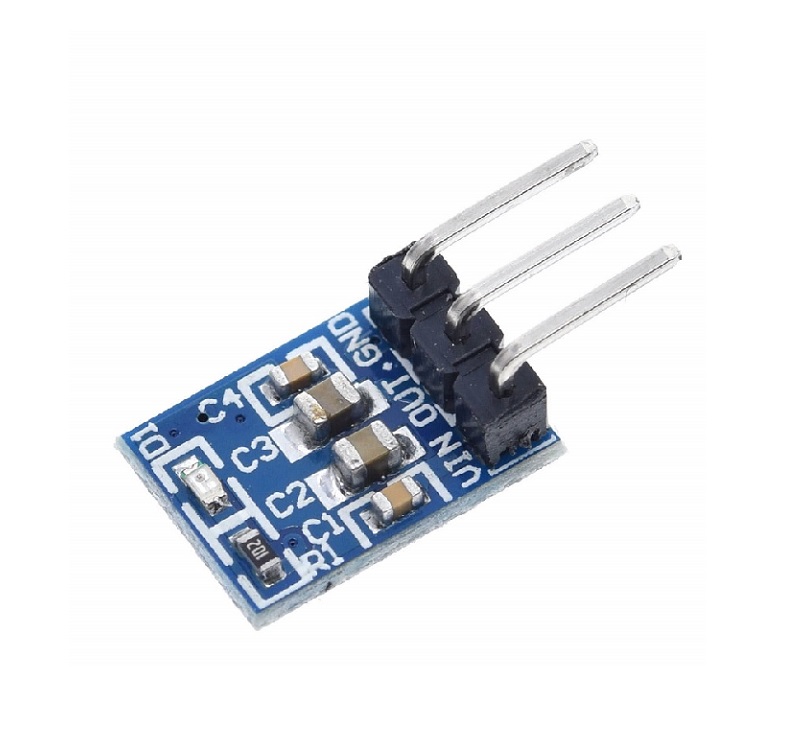

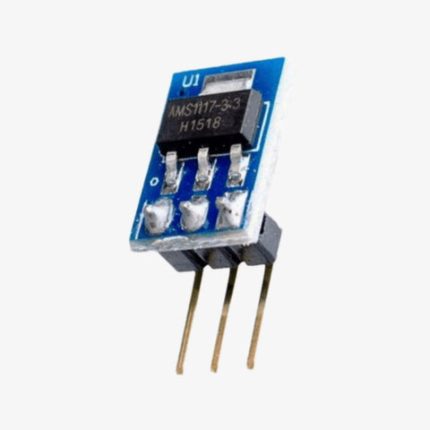

The AMS1117 3.3V Power Module is a reliable solution for powering your 3.3V electronics. Using the popular AMS1117 voltage regulator IC, it provides a stable output with up to 800mA current, making it suitable for small microcontrollers, sensors, and modules.
This module features compact design, low dropout voltage, and easy-to-use pins for direct connection to breadboards or PCBs. It is perfect for Arduino, ESP32, STM32, Raspberry Pi projects, and DIY electronics.
⚙️ Features
⚡ Provides stable 3.3V regulated output
🔌 Supports up to 800mA output current
🧩 Compact module design for easy integration
💡 Low dropout voltage for efficient operation
🏗️ Compatible with Arduino, ESP32, STM32, Raspberry Pi, and other 3.3V devices
🌡️ Overcurrent and thermal protection (built-in AMS1117 IC)
📊 Specifications
Parameter
Description
IC Model
AMS1117
Output Voltage
3.3V
Maximum Output Current
800mA
Input Voltage Range
4.75V – 12V
Dropout Voltage
~1.1V typical
Operating Temperature
-40°C to +125°C
Dimensions
Approx. 20mm × 15mm × 5mm
Pinout
Vin, GND, Vout
🔌
Pin Connections
1 Table
Pin Connections Table 1
Board
Sensor Pin
Connection
Module
IN/OUT
power source / whatever you're powering
📟
