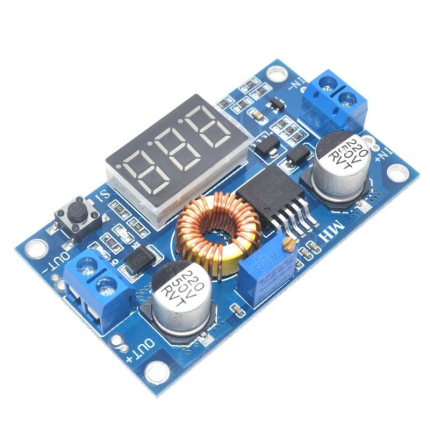

xl4015 Step Down Buck Converter with Digital Display

Name: xl4015 Step Down Buck Converter with Digital Display
SKU: Ek2031
Availability: InStock

SKU: Ek2031 Category: Uncategorized Tags: adjustable buck converter, cc cv buck converter, dc dc buck converter, digital voltmeter buck converter, step down converter digital display, voltage step down module, xl4015 buck converter, xl4015 module, xl4015 power module, xl4015 with display, xl4015 بشاشة, بك كونفرتر شاشة رقمية, محول تيار مستمر نازل, محول جهد نازل, محول خفض جهد xl4015, وحدة خفض جهد رقمية

190,00 EGP

Compare

15 People watching this product now!

Description

[acf_vc_integrator get_field_data_from="" field_group="25154" field_from_25154="field_694d5bea250d3" show_label="default" align="default" gallery_columns="" gm_show_placecard="default" gm_map_type_control="default" gm_fullscreen_control="default" gm_street_view_control="default" gm_zoom_control="default" gm_scale="default" hidden_field_name="ARDUINO CODE"]

هذا الوصف والمواصفات تمت كتابته بمساعدة الذكاء الاصطناعي، يُرجى مراجعته قبل الشراء.

برجاء تأكيد الطلب على الواتساب للتأكد من توفر المخزون قبل الدفع

Specification

General

WeightWeight	0,0000 g
Module Type	DC-DC Step-Down (Buck) Converter with Voltmeter
Main Chip	XL4015
Input Voltage	4.0V ~ 38V DC (Input must be at least 1.5V higher than output)
Output Voltage	1.25V ~ 36V DC (Continuously Adjustable)
Output Current	Up to 5A (Heatsink recommended for continuous draw > 3A)
Output Power	75W (Maximum)
Conversion Efficiency	Up to 96%
On-Board Display	3-Digit LED Voltmeter Display
Control Features	Tactile Push Button (Toggles between Input/Output voltage display), Multi-turn Potentiometer (Voltage Adjustment)
On-Board Components	2× 220uF 50V Filter Capacitors, High-Power Toroidal Inductor
Terminal Type	Screw Terminal Blocks (IN+ / IN- & OUT+ / OUT-)
Applications	DIY Variable Power Supplies, Battery Charging Circuits, Embedded Systems Prototyping, High-Power LED Driving
