Recording Voice Module ISD1820 + Speaker

ISD1820 Voice Recording Playback Module with Speaker – Easy Audio Recording for DIY Projects

Detailed Description:

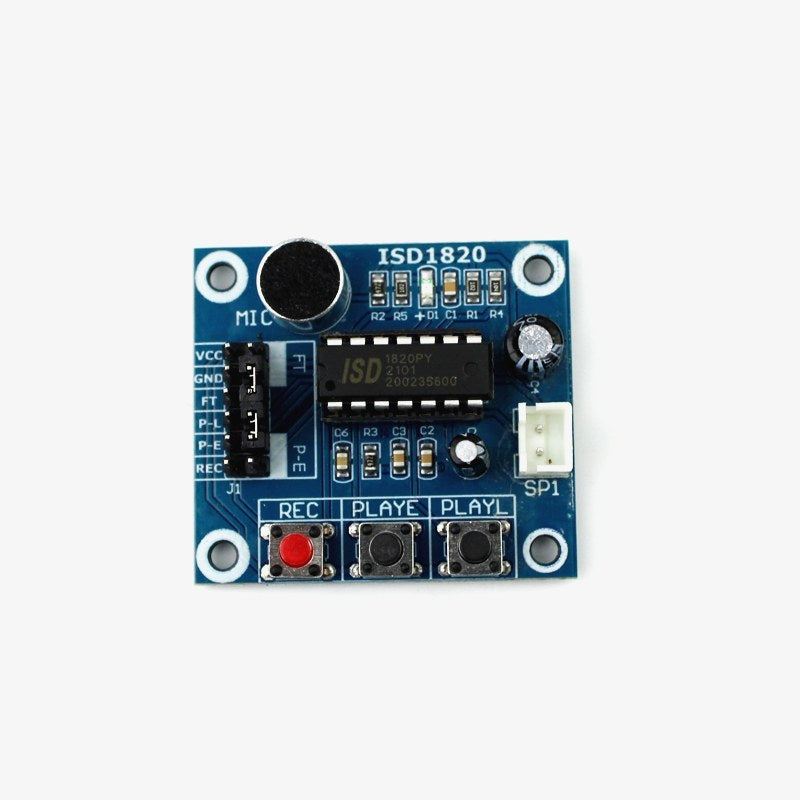

The ISD1820 Voice Recording Module is a simple and effective voice recording and playback solution for Arduino, DIY electronics, and embedded systems. It allows you to record up to 10 seconds of audio directly through the onboard microphone and play it back with a built-in pushbutton or via microcontroller signals.

This module includes an 8Ω mini speaker for immediate audio output and supports features like looped playback, momentary playback, and single-play modes. It uses non-volatile flash memory, so your recordings remain intact even when power is removed.

With its plug-and-play design and header pins, the ISD1820 is ideal for adding sound effects, voice messages, or alerts to custom projects, toys, alarms, and interactive systems.

Key Features:

• Built-in Microphone – Record voice or sound directly onto the module

• Up to 10 Seconds of Audio Storage – Stored in non-volatile memory

• Includes 8Ω Mini Speaker – Out-of-box playback without additional hardware

• Multiple Playback Modes:

  • PLAYE (Edge Triggered): Plays once when triggered

  • PLAYL (Level Triggered): Plays as long as the button is held

  • REC: Start/stop recording button

• Easy Control via Buttons or Microcontroller (e.g., Arduino)

• Onboard LED Indicator – Shows recording status

• Breadboard-Friendly Design – Header pins for easy prototyping

Applications:

• DIY Electronics – Sound-enabled Arduino or Raspberry Pi projects

• Talking Toys – Add recorded sounds or voice messages

• Alarms & Reminders – Voice warnings or custom alerts

• Educational Projects – Learn audio signal processing

• Interactive Exhibits – Triggered voice playback on sensors

Specifications:

• Model: ISD1820 Voice Module

• Recording Duration: Up to 10 seconds

• Memory Type: Non-volatile flash

• Operating Voltage: 3V – 5V DC

• Control: Manual buttons or MCU trigger

• Speaker: 8Ω / 0.5W mini speaker included

• Audio Output: Direct drive to speaker or via external amplifier

• Dimensions: ~38mm x 42mm (module only)

Bring your projects to life with recorded audio using the ISD1820 Voice Recording Module – simple, fun, and great for all levels of makers.
