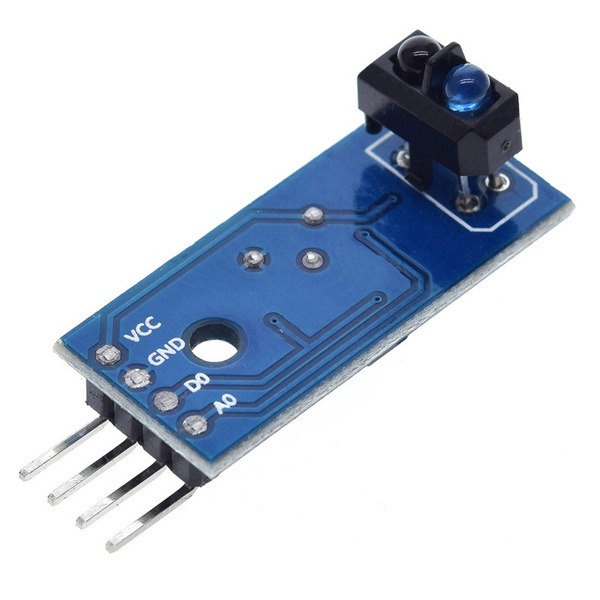

TCRT 5000 Dual Channel Line Tracking Sensor Module

  1. Operating Voltage: 3.5V-5V
  2. Supply Current: 15mA
  3. Optimal Sensing Distance: 3mm
  4. Designed with the reflected infrared sensor, indicator light.
  5. Built in a potentiometer for sensitivity control.
  6. On-board LM393 voltage comparator chip and infrared sensing probe TCRT5000L
  7. Signal detection sensitivity can adjust
  8. Reserve all the way more circuits (P3 voltage drawn)



EGP40.00

In stock

SKU: AB070 Categories: , Tag:
Estimated delivery dates: 03-12-2024 - 05-12-2024

The TCRT 5000 Dual Channel Line Tracking Sensor Module is a versatile and compact sensor module designed for line-following robots and other automated systems. It utilizes two TCRT 5000 infrared sensors to detect the contrast between a line (typically black) and the background (typically white), allowing the module to track lines and make decisions based on the sensor data.

Key Features:

  • Dual Channel Sensors: Two TCRT 5000 infrared sensors for detecting lines with high accuracy.
  • Operating Voltage: 3.3V to 5V (compatible with most microcontrollers like Arduino, Raspberry Pi, etc.)
  • Output Type: Digital output, typically HIGH or LOW depending on the line detection (some modules may have an analog output option for more sensitive tracking).
  • Detection Range: Suitable for detecting lines or contrasts on surfaces. The sensor’s effective range can be adjusted via a potentiometer.
  • Sensor Type: Optical sensor with infrared emitter and phototransistor for line detection.
  • Compact Size: Small and lightweight, ideal for integration into robots or mobile platforms.
  • Mounting: Easy to mount on robot chassis or other platforms for precise tracking.

Applications:

  • Line Following Robots: Used in robotic projects for autonomous line tracking.
  • Automated Vehicles: Can be used for basic autonomous vehicles or navigation systems.
  • Sensor Feedback: Ideal for use in projects that require feedback on surface tracking or movement along a designated path.
  • Obstacle Detection: Can be adapted to detect different surfaces for basic obstacle avoidance in simple robotic applications.

Benefits:

  • Precision Tracking: Reliable and accurate line detection for basic autonomous navigation.
  • Adjustable Sensitivity: The sensitivity can be fine-tuned to adapt to various surface conditions.
  • Easy Integration: Simple to use with common microcontrollers, ideal for hobbyist projects and educational applications.
  • Low Power Consumption: Designed to operate efficiently with minimal power usage, making it suitable for battery-powered robots.

The TCRT 5000 Dual Channel Line Tracking Sensor Module is an essential component for building line-following robots, smart vehicles, or any system that requires basic optical surface tracking. Its simplicity and reliability make it an excellent choice for both beginners and experienced robotics enthusiasts.

0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “TCRT 5000 Dual Channel Line Tracking Sensor Module”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Get a discount when you buy more

Specification

Dimensions 32 × 14 × 12 mm
Operating Voltage (VDC)

3.5 to 5

Supply Current (A)

0.015

Optimal Sensing Distance(mm)

3
