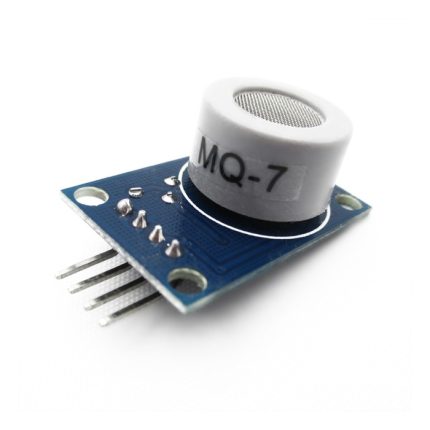

MQ-7 CO Carbon Monoxide Coal Gas Sensor Module

  1. Operating voltage: DC 5 V.
  2. The analog output voltage, the higher the concentration the higher the voltage.
  3. The carbon monoxide detection with better sensitivity.
  4. With a long service life and reliable stability.
  5. Rapid response and recovery characteristics.
  6. Range: 10 to 1000 ppm.
SKU: AB051 Categories: ,

EGP75.00

16 People watching this product now!
  • Pick up from the Ekostra Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

1-3 Days

50 LE

  • Free 14-Day returns

Payment Methods:

Description

MQ-7 CO Carbon Monoxide Coal Gas Sensor Module detects the concentrations of CO in the air and outputs its reading as an analog voltage. The sensor can measure concentrations of 10 to 10,000 ppm.

The sensor can operate at temperatures from -10 to 50°C and consumes less than 150 mA at 5 V.

This module provides both digital and analog outputs. The threshold level for digital output can be easily adjusted using the preset on the board. The MQ-7 sensor module can be easily interfaced with Micro-controllers, Arduino and etc.

Standard Test Conditions

Temperature: 20°C ± 2°C
Humidity: 65% ± 5% RH
Standard Test Circuit: Vc: 5.0V ± 0.1V; Vh(high):5.0V±0.1V
Vh(low): 1.5V±0.1V


Features :

  1. The analog output voltage, the higher the concentration the higher the voltage.
  2. The carbon monoxide detection with better sensitivity.
  3. There are four screw holes for easy positioning.
  4. With a long service life and reliable stability.
  5. Rapid response and recovery characteristics.

Package Includes :

1 x MQ-7 CO Carbon Monoxide Coal Gas Sensor Module.

Specification

Overview

Operating voltage (v)

DC 5

Range

10 ~ 1000 ppm

Characteristic gas

100 ppm CO

Sensitivity

≥ 3%.

Return time

≤ 30 sec

Heating resistance

± 31 Ω

Heating current

≤ 180 mA

Heating voltage

5.0V ± 2V / 1.5 ± 1V

Heating power

approx. 350 mW

Ambient temperature (°C)

-20 ~ + 50

Humidity

≤ 95% RH

Oxygen content

21%.

Shipping Info

Weight

20.0000 g

Dimensions

35 × 20 × 11 mm
