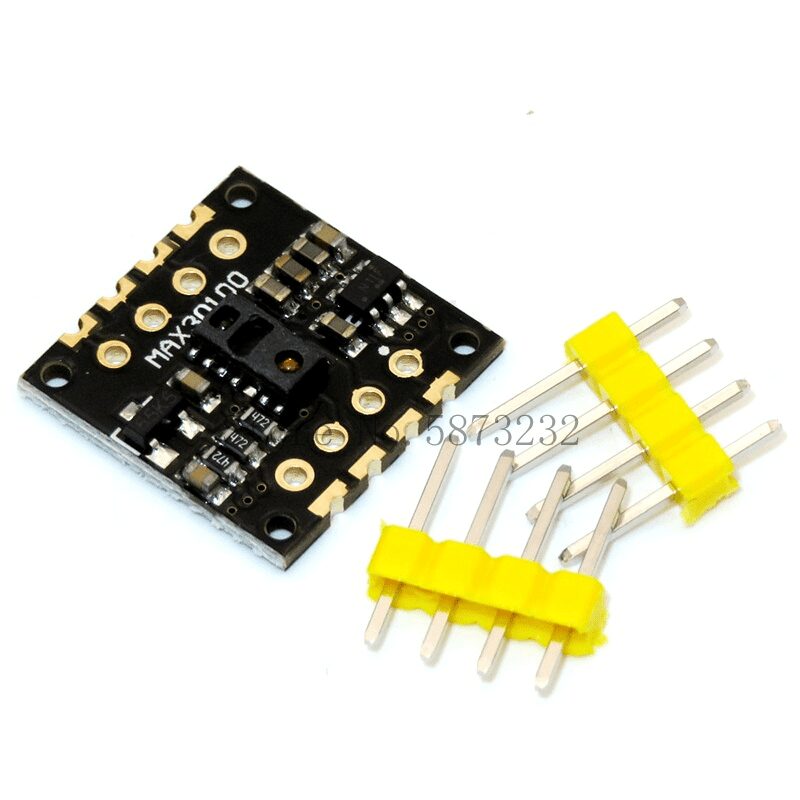

MAX30100 Black Heart Rate
- 💓 MAX30100 heart-rate & pulse oximeter sensor module (Black)
- 🩸 Measures heart rate and SpO2 (blood oxygen) signals
- 🔴🔵 Integrated red + IR LEDs with photodetector
- 🚌 I2C interface—easy connection to Arduino/ESP32/STM32
- ⚡ Low power—great for wearable and portable devices
- 🧩 Ideal for fitness tracking and basic health-monitoring projects
- 🛠️ Compact breakout board for quick prototyping
- ✅ Common module for DIY biomedical and IoT applications
150,00 EGP
2
People watching this product now!
Description
The MAX30100 Black Heart Rate Sensor is a highly integrated and compact module designed for measuring heart rate and oxygen saturation (SpO2). Based on the MAX30100 IC from Maxim Integrated, this sensor provides accurate and reliable readings for a wide range of health-related applications, including wearables, fitness trackers, medical monitoring devices, and other health-tracking systems. The sensor uses optical photoplethysmography (PPG) to detect changes in blood volume and provides real-time heart rate and SpO2 measurements. Its small form factor and low power consumption make it perfect for portable and battery-powered devices.
Key Features:
- Heart Rate Measurement: Uses optical sensors to detect changes in blood volume, providing heart rate readings.
- SpO2 Measurement: Also measures oxygen saturation in the blood (SpO2), a critical parameter for health monitoring.
- Integrated LED Lights: Features red and IR (infrared) LEDs, which are essential for taking accurate measurements of heart rate and blood oxygen levels.
- Low Power Consumption: Designed for low energy consumption, making it suitable for battery-powered devices.
- Small Form Factor: The compact design allows it to be used in wearable devices and small electronics applications.
- I2C Interface: Uses an I2C interface, making it easy to integrate with various microcontrollers like Arduino, Raspberry Pi, and others.
- Adjustable Sensitivity: The module allows you to adjust the sensitivity for different skin tones and ambient lighting conditions.
- Easy to Use: Ready-to-use module with a breakout board, making it simple for developers to integrate into projects.
Specifications:
- Heart Rate Measurement Range: Typically 30 BPM to 240 BPM (beats per minute).
- SpO2 Measurement Range: Typically 0% to 100% oxygen saturation.
- Power Supply: Typically 1.8V to 3.3V (depending on the specific model and application).
- Interface: I2C communication protocol.
- LEDs: Integrated red LED (660 nm) and IR LED (940 nm) for optical measurement.
- Operating Temperature Range: Typically -40°C to +85°C.
- Module Size: Compact size of ~20mm x 12mm for easy integration into small devices.
- Power Consumption: Low current consumption (typically 0.5mA during measurement).
هذا الوصف والمواصفات تمت كتابته بمساعدة الذكاء الاصطناعي، يُرجى مراجعته قبل الشراء.
برجاء تأكيد الطلب على
الواتساب
للتأكد من توفر المخزون قبل الدفع
Specification
General
| WeightWeight | 0,0000 g |
|---|---|
| Dimensions | 1,5 × 2 × 0,5 cm |
| Product Name | MAX30100 – Black Heart Rate Sensor |
| Type | Optical Heart Rate and Pulse Oximeter Sensor |
| Model | MAX30100 |
| Sensing Method | Reflective Optical Sensor (IR + Red LEDs) |
| Operating Voltage | 1.8–3.3 V DC |
| Communication Interface | I²C |
| Sampling Rate | 50–100 Hz (typical) |
| Measurement | Heart Rate, Blood Oxygen Saturation (SpO₂) |
| Operating Temperature | -40°C to +85°C |
| Package Type | Module with Sensor and PCB |
| Color | Black |
| Applications | Heart Rate Monitoring, Fitness Projects, Arduino / Raspberry Pi Projects, Wearable Health Devices |
| Package Contents | 1× MAX30100 Black Heart Rate Sensor Module |
