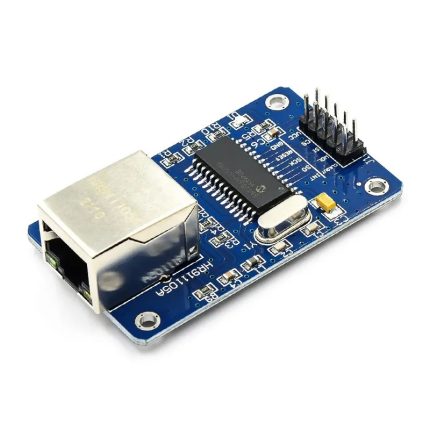

Ethernet Module (ENC28J60) For Arduino / Microcontroller
Ethernet Module (ENC28J60) For Arduino / Microcontroller
1. Controller IC: Microchip ENC28J60
2. Interface: SPI
3. Operating Voltage: 3.3V
4. Network Standard: IEEE 802.3 (10BASE-T)
5. Buffer Memory: 8KB
500,00 EGP
Description

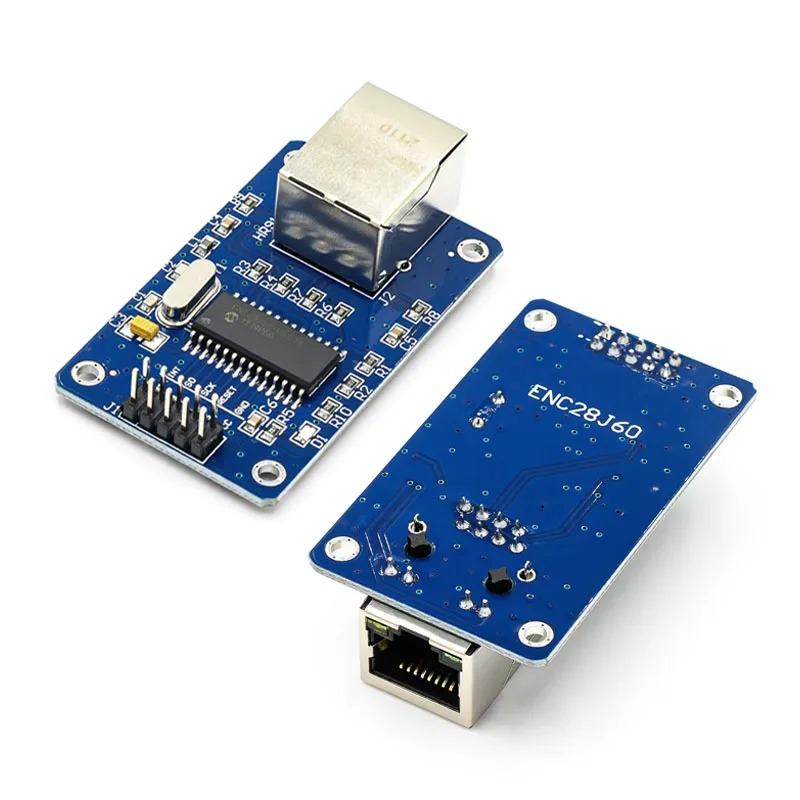

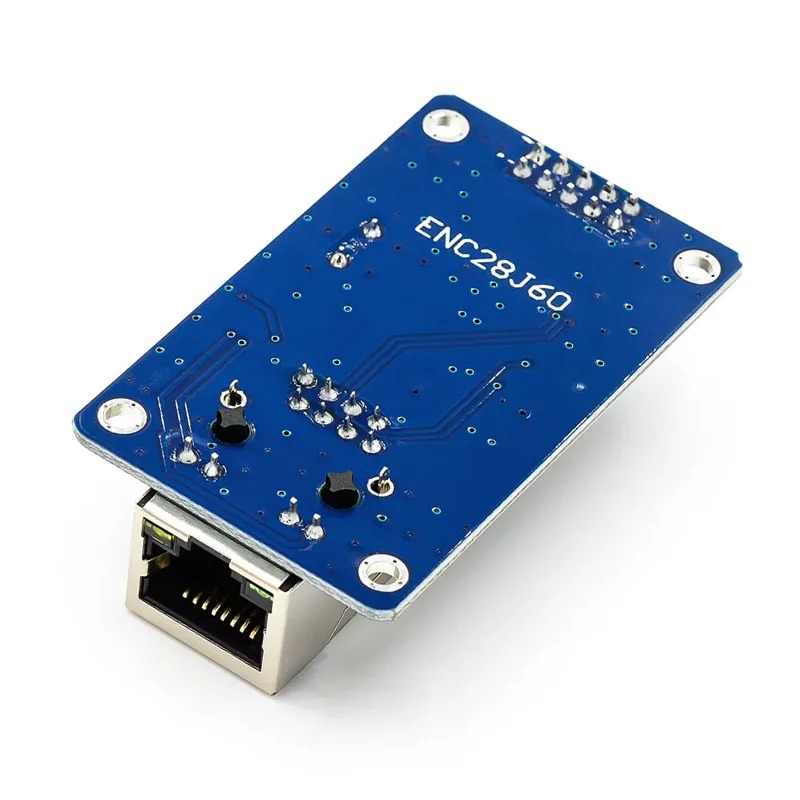

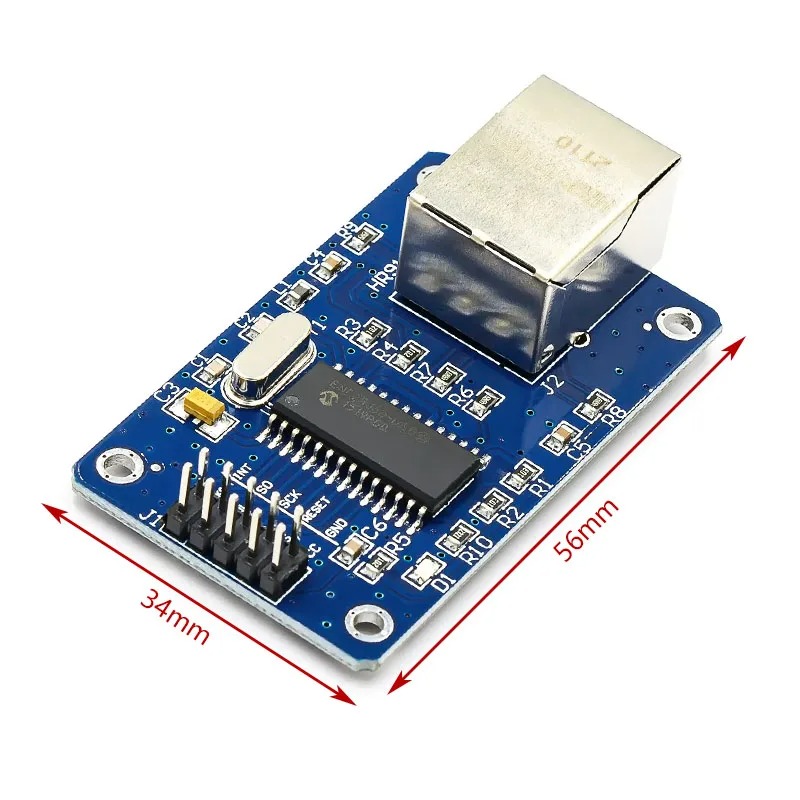

The Ethernet Module (ENC28J60) is a standalone Ethernet controller board built around Microchip’s ENC28J60 chip, giving Arduino and other microcontrollers wired network connectivity over a simple SPI interface.
It operates at 3.3V logic level and complies with the IEEE 802.3 standard for 10BASE-T Ethernet, connecting to the network through an integrated RJ45 jack with built-in magnetics, avoiding the need for external isolation components.
An onboard 8KB buffer memory, configurable for transmit and receive allocation, handles packet buffering, letting the module manage network traffic independently of the host microcontroller’s limited RAM.
Features:
- ENC28J60 standalone Ethernet controller
- SPI interface for microcontroller connection
- 3.3V logic level operation
- IEEE 802.3 compliant, 10BASE-T
- Integrated RJ45 connector with magnetics
- 8KB configurable transmit/receive buffer
- Adds wired Ethernet to Arduino-class microcontrollers
Specification
General
| WeightWeight | 0,0000 g |
|---|---|
| Module Type | Standalone Ethernet Controller |
| Controller IC | Microchip ENC28J60 |
| Interface | SPI |
| Operating Voltage | 3.3V |
| Network Standard | IEEE 802.3 compliant (10BASE-T) |
| Connector | RJ45 (Integrated magnetics) |
| Buffer Memory | 8KB (configurable TX/RX) |
