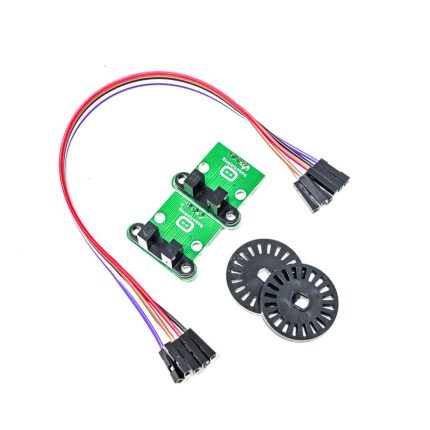

Dual-Speed Encoder with Pulse Output

Working voltage: 4.5V to 5.5 V
Transmit tube pressure drop: Vf = 1.6 V
Transmit tube current: 20 mA
Distinguish precision: 0.01 mm
Measurement frequency, 100 kHz

SKU: ND038 Categories: Rotary Encoder, Sensors Tags: Rotary Encoder, Sensors

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

250,00 EGP

Compare

8 People watching this product now!

Payment Methods:

Description

This speed measuring sensor is a wide voltage, high resolution, short response time, and the switch output speed measurement module. It can test the motor’s rotational speed with a black encoder (measured spec. is related to the encoder, the inner diameter of D type encoder that provided is 4mm, can be used for motor output shaft w/ 4mm diameter, which is TT motor we matched, yellow shell and white axis)

Features :

Signal output: A, B two way; The TTL level
Disc diameter: 24mm
Inner Disc Diameter: 4 mm
The encoder resolution is about 20 line
Speed measuring sensor configuration: The configuration can measure 1 road motor speed

Package Includes :

1 x Double Speed Measuring Module kit

1 x Screw set

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
Encoder	VCC/GND/A/B	3.3-5V / GND / board channel-A pin / board channel-B pin

📟

Dual-Speed Encoder with Pulse Output

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

Dual-Speed Encoder with Pulse Output - Arduino Uno

Dual-Speed Encoder with Pulse Output - Arduino Nano

Dual-Speed Encoder with Pulse Output - Arduino Mega

Dual-Speed Encoder with Pulse Output - ESP32

Dual-Speed Encoder with Pulse Output - ESP8266

Dual-Speed Encoder with Pulse Output - STM32

Dual-Speed Encoder with Pulse Output - Raspberry Pi Pico

📄 File: dual-speed_encoder_with_pulse_output_-_arduino_uno.inoArduino Uno

660 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Channel A=2, B=3 on Arduino Uno. Both A and B need interrupt-capable pins on AVR boards (2/3 on Uno/Nano); ESP32/ESP8266/STM32/Pico support interrupts on any GPIO.

6volatile long pulseCount = 0;

7#define ENC_A 2

8#define ENC_B 3

10void handleEncoder() {

11 int b = digitalRead(ENC_B);

12 if (b > 0) pulseCount++; else pulseCount--;

13}

15void setup() {

16 Serial.begin(115200);

17 pinMode(ENC_A, INPUT_PULLUP);

18 pinMode(ENC_B, INPUT_PULLUP);

19 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

20}

22void loop() {

23 Serial.print("Pulse count: "); Serial.println(pulseCount);

24 delay(200);

25}

📄 File: dual-speed_encoder_with_pulse_output_-_arduino_nano.inoArduino Nano

661 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Channel A=2, B=3 on Arduino Nano. Both A and B need interrupt-capable pins on AVR boards (2/3 on Uno/Nano); ESP32/ESP8266/STM32/Pico support interrupts on any GPIO.

6volatile long pulseCount = 0;

7#define ENC_A 2

8#define ENC_B 3

10void handleEncoder() {

11 int b = digitalRead(ENC_B);

12 if (b > 0) pulseCount++; else pulseCount--;

13}

15void setup() {

16 Serial.begin(115200);

17 pinMode(ENC_A, INPUT_PULLUP);

18 pinMode(ENC_B, INPUT_PULLUP);

19 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

20}

22void loop() {

23 Serial.print("Pulse count: "); Serial.println(pulseCount);

24 delay(200);

25}

📄 File: dual-speed_encoder_with_pulse_output_-_arduino_mega.inoArduino Mega

661 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Channel A=2, B=3 on Arduino Mega. Both A and B need interrupt-capable pins on AVR boards (2/3 on Uno/Nano); ESP32/ESP8266/STM32/Pico support interrupts on any GPIO.

6volatile long pulseCount = 0;

7#define ENC_A 2

8#define ENC_B 3

10void handleEncoder() {

11 int b = digitalRead(ENC_B);

12 if (b > 0) pulseCount++; else pulseCount--;

13}

15void setup() {

16 Serial.begin(115200);

17 pinMode(ENC_A, INPUT_PULLUP);

18 pinMode(ENC_B, INPUT_PULLUP);

19 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

20}

22void loop() {

23 Serial.print("Pulse count: "); Serial.println(pulseCount);

24 delay(200);

25}

📄 File: dual-speed_encoder_with_pulse_output_-_esp32.inoESP32

658 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Channel A=32, B=33 on ESP32. Both A and B need interrupt-capable pins on AVR boards (2/3 on Uno/Nano); ESP32/ESP8266/STM32/Pico support interrupts on any GPIO.

6volatile long pulseCount = 0;

7#define ENC_A 32

8#define ENC_B 33

10void handleEncoder() {

11 int b = digitalRead(ENC_B);

12 if (b > 0) pulseCount++; else pulseCount--;

13}

15void setup() {

16 Serial.begin(115200);

17 pinMode(ENC_A, INPUT_PULLUP);

18 pinMode(ENC_B, INPUT_PULLUP);

19 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

20}

22void loop() {

23 Serial.print("Pulse count: "); Serial.println(pulseCount);

24 delay(200);

25}

📄 File: dual-speed_encoder_with_pulse_output_-_esp8266.inoESP8266

660 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Channel A=D5, B=D6 on ESP8266. Both A and B need interrupt-capable pins on AVR boards (2/3 on Uno/Nano); ESP32/ESP8266/STM32/Pico support interrupts on any GPIO.

6volatile long pulseCount = 0;

7#define ENC_A D5

8#define ENC_B D6

10void handleEncoder() {

11 int b = digitalRead(ENC_B);

12 if (b > 0) pulseCount++; else pulseCount--;

13}

15void setup() {

16 Serial.begin(115200);

17 pinMode(ENC_A, INPUT_PULLUP);

18 pinMode(ENC_B, INPUT_PULLUP);

19 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

20}

22void loop() {

23 Serial.print("Pulse count: "); Serial.println(pulseCount);

24 delay(200);

25}

📄 File: dual-speed_encoder_with_pulse_output_-_stm32.inoSTM32

662 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Channel A=PA0, B=PA1 on STM32. Both A and B need interrupt-capable pins on AVR boards (2/3 on Uno/Nano); ESP32/ESP8266/STM32/Pico support interrupts on any GPIO.

6volatile long pulseCount = 0;

7#define ENC_A PA0

8#define ENC_B PA1

10void handleEncoder() {

11 int b = digitalRead(ENC_B);

12 if (b > 0) pulseCount++; else pulseCount--;

13}

15void setup() {

16 Serial.begin(115200);

17 pinMode(ENC_A, INPUT_PULLUP);

18 pinMode(ENC_B, INPUT_PULLUP);

19 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

20}

22void loop() {

23 Serial.print("Pulse count: "); Serial.println(pulseCount);

24 delay(200);

25}

📄 File: dual-speed_encoder_with_pulse_output_-_raspberry_pi_pico.inoRaspberry Pi Pico

670 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Channel A=20, B=21 on Raspberry Pi Pico. Both A and B need interrupt-capable pins on AVR boards (2/3 on Uno/Nano); ESP32/ESP8266/STM32/Pico support interrupts on any GPIO.

6volatile long pulseCount = 0;

7#define ENC_A 20

8#define ENC_B 21

10void handleEncoder() {

11 int b = digitalRead(ENC_B);

12 if (b > 0) pulseCount++; else pulseCount--;

13}

15void setup() {

16 Serial.begin(115200);

17 pinMode(ENC_A, INPUT_PULLUP);

18 pinMode(ENC_B, INPUT_PULLUP);

19 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

20}

22void loop() {

23 Serial.print("Pulse count: "); Serial.println(pulseCount);

24 delay(200);

25}

Project Notes:

Dual-channel pulse encoder (same quadrature counting approach as a standard rotary encoder).

Specification

WeightWeight	18,0000 g
Dimensions	3 × 2 × 1 cm
working-voltage	4.5V to 5.5 V
transmit-tube-pressure-drop	Vf = 1.6 V
transmit-tube-current	20 mA
distinguish-precision	0.01 mm
measurement-frequency	100 kHz
signal-output	A, B two way; The TTL level
disc-diameter	24mm
inner-disc-diameter	4 mm
