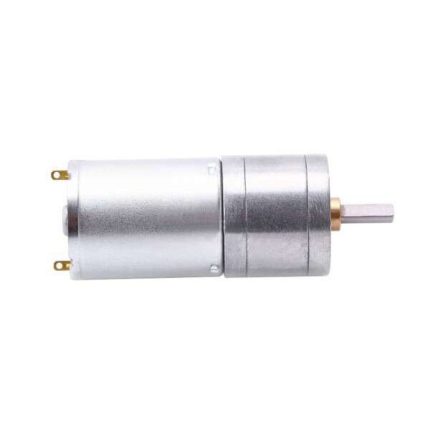

JGA25-370-12V-250RPM 8.8Kg.cm DC motor Gear box

⚙️ JGA25-370 DC geared motor with gearbox
⚡ 12VDC operation for robotics and automation projects
🚀 Output speed: 250 RPM (geared)
💪 High torque: 8.8 kg·cm for heavy-load applications
🤖 Ideal for robot cars, smart mechanisms, and conveyors
🔁 Smooth, stable rotation with gear reduction
🛠️ Easy to drive using H-bridge motor drivers
✅ Great choice for strong compact motion systems

SKU: SG555123000-20K Categories: DC Motor with Gearbox, Motors | Drivers | Pumps | Actuators Tags: DC Motor with Gearbox, Motors

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

400,00 EGP

Compare

18 People watching this product now!

Payment Methods:

Compare

Quick view

JGA25-370-12V-250RPM 8.8Kg.cm DC motor Gear box

Motors | Drivers | Pumps | Actuators, DC Motor with Gearbox

400,00 EGP

High-Traction Robot Wheel (65mm x 26mm) with 4mm Metal Hex Coupler – Blue - Ekostra Electronics In Egypt اكوسترا الكترونيكس

Compare

Quick view

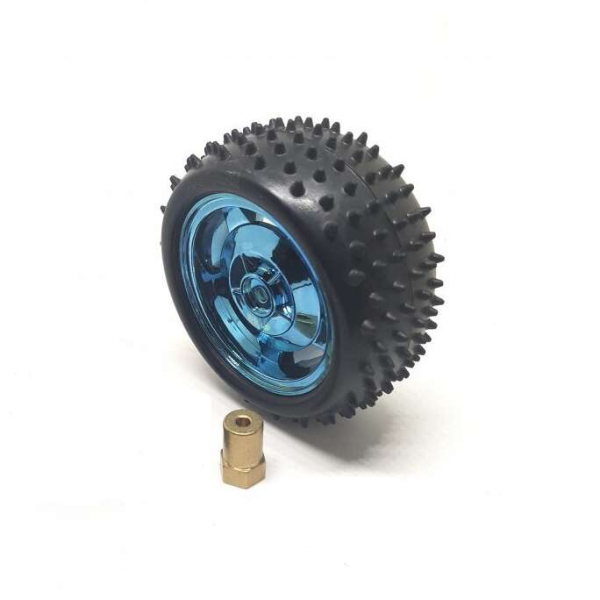

High-Traction Robot Wheel (65mm x 26mm) with 4mm Metal Hex Coupler – Blue

DIY Hobby Project Parts, Robot Kits and Parts

200,00 EGP

Description

JGA25-370-12V-250RPM 8.8Kg.cm DC motor Gear box

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
Motor	to H-bridge OUT	motor leads into an H-bridge driver's output terminals

📟

JGA25-370-12V-250RPM 8.8Kg.cm DC motor Gear box

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

JGA25-370-12V-250RPM 8.8Kg.cm DC motor Gear box - Arduino Uno

JGA25-370-12V-250RPM 8.8Kg.cm DC motor Gear box - Arduino Nano

JGA25-370-12V-250RPM 8.8Kg.cm DC motor Gear box - Arduino Mega

JGA25-370-12V-250RPM 8.8Kg.cm DC motor Gear box - ESP32

JGA25-370-12V-250RPM 8.8Kg.cm DC motor Gear box - ESP8266

JGA25-370-12V-250RPM 8.8Kg.cm DC motor Gear box - STM32

JGA25-370-12V-250RPM 8.8Kg.cm DC motor Gear box - Raspberry Pi Pico

📄 File: jga25-370-12v-250rpm_8.8kg.cm_dc_motor_gear_box_-_arduino_uno.inoArduino Uno

652 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// JGA25-370-12V-250RPM 8.8Kg.cm DC motor Gear box needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=8, IN2=9, ENA(speed)=10 on Arduino Uno.

6#define IN1 8

7#define IN2 9

8#define ENA 10

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: jga25-370-12v-250rpm_8.8kg.cm_dc_motor_gear_box_-_arduino_nano.inoArduino Nano

653 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

6#define IN1 8

7#define IN2 9

8#define ENA 10

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: jga25-370-12v-250rpm_8.8kg.cm_dc_motor_gear_box_-_arduino_mega.inoArduino Mega

653 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

6#define IN1 8

7#define IN2 9

8#define ENA 10

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: jga25-370-12v-250rpm_8.8kg.cm_dc_motor_gear_box_-_esp32.inoESP32

650 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

6#define IN1 26

7#define IN2 27

8#define ENA 25

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: jga25-370-12v-250rpm_8.8kg.cm_dc_motor_gear_box_-_esp8266.inoESP8266

652 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

6#define IN1 D5

7#define IN2 D6

8#define ENA D7

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: jga25-370-12v-250rpm_8.8kg.cm_dc_motor_gear_box_-_stm32.inoSTM32

656 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

6#define IN1 PB0

7#define IN2 PB1

8#define ENA PA8

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: jga25-370-12v-250rpm_8.8kg.cm_dc_motor_gear_box_-_raspberry_pi_pico.inoRaspberry Pi Pico

662 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

6#define IN1 14

7#define IN2 15

8#define ENA 16

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

Project Notes:

Bare DC motor - needs an H-bridge driver module (L298N/L293D/L9110S) wired between it and the microcontroller.

Specification

WeightWeight	40 g
Dimensions	2,5 × 2,5 × 4,7 cm
Product Name	JGA25-370-12V-250RPM DC Gear Motor
Operating Voltage	12V DC
Speed	250 RPM
Torque	8.8 kg.cm
Motor Type	Brushed DC Gear Motor
Gearbox Type	Metal Gearbox
Shaft Diameter	4mm (D-shaft)
Shaft Length	10mm
Motor Body Diameter	25mm
Motor Length (without shaft)	37mm
Stall Current	1.2A
No-Load Current	150mA
Usage	Robotics, automation, DIY projects
