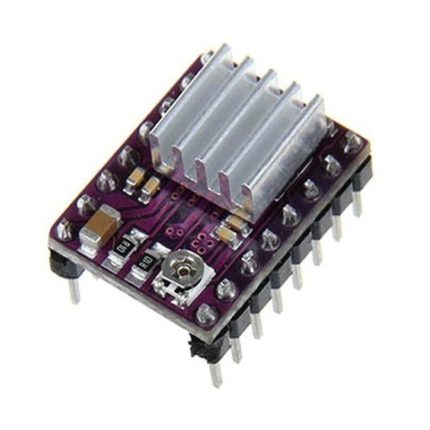

DRV8825 Stepper Motor Driver with Heat Sink

  1. Supply Voltage: 8.2 – 42 VDC.
  2. Current Capacity : 2.2A max(24V).
  3. Continuous current per phase: 1.5 A.
  4. Minimum Logic voltage: 2.5V.
  5. Maximum Logic Voltage: 5V.
  6. Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, and 1/32.
  7. Dimensions : 15 x 20 mm.
  8. Weight: 4 gm.
Quantity Price Discount
1-5 EGP120.00 0%
6-10 EGP108.00 10%
11+ EGP96.00 20%

EGP120.00

In stock

Estimated delivery dates: 03-12-2024 - 05-12-2024

The DRV8825 Stepper Motor Driver with Aluminum Heat Sink is a breakout board for TI’s DRV8825 microstepping bipolar stepper motor driver.

The module has a pinout and interface that are nearly identical to those of the A4988 stepper motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications.

The DRV8825 features adjustable current limiting, overcurrent, and overtemperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).

Note: We are supplying two DRV8825 Drivers as DRV8825 Stepper Motor Driver with Aluminum Heat Sink- Good Quality and DRV8825 Stepper Motor Driver with Aluminum Heat Sink- Normal QualityThe difference between them is, the good quality DRV8825 has more number of PCB layers and it features the connecting pins which are of gold plated as compared to other. (refer to above image)



Using the Driver

Wiring diagram for DRV8825 Stepper Motor Driver


Features :

  1. Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, and 1/32.
  2. Simple step and direction control interface
  3. Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
  4. Adjustable current control lets you set the maximum current output with a potentiometer. Hence lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
  5. Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
  6. 45 V maximum supply voltage
  7. Built-in regulator (no external logic voltage supply needed)
  8. Can interface directly with 3.3 V and 5 V systems
  9. Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
  10. Short-to-ground and shorted-load protection
  11. 4-layer, 2 oz copper PCB for improved heat dissipation
  12. Exposed solderable ground pad below the driver IC on the bottom of the PCB

Package Includes :

1 x DRV8825 Stepper Motor Driver with Aluminum Heat Sink- Good Quality.

Attach Document

0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “DRV8825 Stepper Motor Driver with Heat Sink”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Get a discount when you buy more

Quantity Price Discount
1-5 EGP120.00 0%
6-10 EGP108.00 10%
11+ EGP96.00 20%

Specification

Dimensions 15 × 20 × 4 mm
Model Series:

DRV Series, Heat Sink

Voltage Rating (V):

8.2 to 42VDC

Current Rating (A):

1.5 to 2.2

Input Voltage (VDC)

8.2 ~ 42

Logic Voltage (V)

2.5 ~ 5

Max. Current (A)

2.2

Continuous Current (A):

1.5 (per phase)
