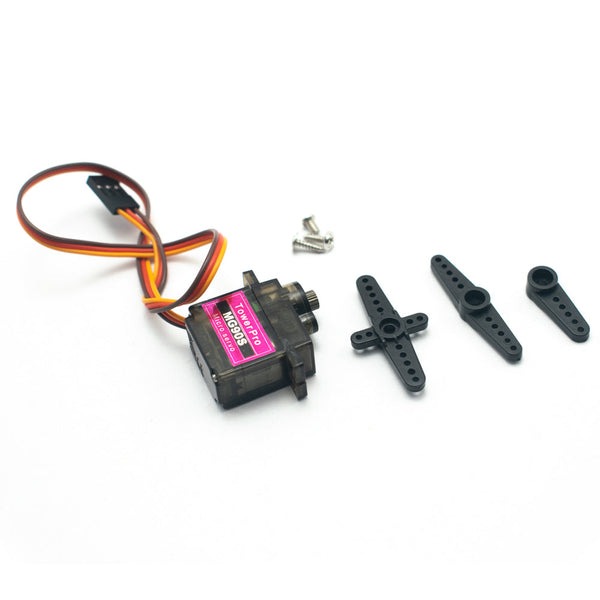

The Towerpro MG90S Mini Digital Servo is 180° rotation servo. It is a Digital Servo Motor which receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.
The good optimized performance and reliability of our servos have made them the favorite choice of many RC hobbyists.
They are packed within a tight sturdy plastic case which makes them water and dust resistant which is a very useful feature in RC planes, Boats, and RC Monster Trucks etc. It equips 3-wire JR servo plug which is compatible with Futaba connectors too.
MG90S Mini Digital 180 Degree Servo 2.2kg - Arduino Uno
MG90S Mini Digital 180 Degree Servo 2.2kg - Arduino Nano
MG90S Mini Digital 180 Degree Servo 2.2kg - Arduino Mega
MG90S Mini Digital 180 Degree Servo 2.2kg - ESP32
MG90S Mini Digital 180 Degree Servo 2.2kg - ESP8266
MG90S Mini Digital 180 Degree Servo 2.2kg - STM32
MG90S Mini Digital 180 Degree Servo 2.2kg - Raspberry Pi Pico
📄 File: mg90s_mini_digital_180_degree_servo_2.2kg_-_arduino_uno.inoArduino Uno
567 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// Signal pin 9 on Arduino Uno. Power the servo from a separate 5V supply for anything beyond a single small SG90 - a board's own 5V pin can't supply a servo's stall current.
5// Signal pin 9 on Arduino Nano. Power the servo from a separate 5V supply for anything beyond a single small SG90 - a board's own 5V pin can't supply a servo's stall current.
6#include <Servo.h>
7
8Servo myServo;
9#define SERVO_PIN 9
10
11voidsetup() {
12Serial.begin(115200);
13 myServo.attach(SERVO_PIN);
14}
15
16voidloop() {
17for (int angle = 0; angle <= 180; angle += 5) {
18 myServo.write(angle);
19delay(20);
20 }
21for (int angle = 180; angle >= 0; angle -= 5) {
22 myServo.write(angle);
23delay(20);
24 }
25}
📄 File: mg90s_mini_digital_180_degree_servo_2.2kg_-_arduino_mega.inoArduino Mega
568 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// Signal pin 9 on Arduino Mega. Power the servo from a separate 5V supply for anything beyond a single small SG90 - a board's own 5V pin can't supply a servo's stall current.
5// Signal pin 25 on ESP32. Power the servo from a separate 5V supply for anything beyond a single small SG90 - a board's own 5V pin can't supply a servo's stall current.
5// Signal pin D1 on ESP8266. Power the servo from a separate 5V supply for anything beyond a single small SG90 - a board's own 5V pin can't supply a servo's stall current.
5// Signal pin PA8 on STM32. Power the servo from a separate 5V supply for anything beyond a single small SG90 - a board's own 5V pin can't supply a servo's stall current.
6#include <Servo.h>
7
8Servo myServo;
9#define SERVO_PIN PA8
10
11voidsetup() {
12Serial.begin(115200);
13 myServo.attach(SERVO_PIN);
14}
15
16voidloop() {
17for (int angle = 0; angle <= 180; angle += 5) {
18 myServo.write(angle);
19delay(20);
20 }
21for (int angle = 180; angle >= 0; angle -= 5) {
22 myServo.write(angle);
23delay(20);
24 }
25}
📄 File: mg90s_mini_digital_180_degree_servo_2.2kg_-_raspberry_pi_pico.inoRaspberry Pi Pico
575 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// Signal pin 15 on Raspberry Pi Pico. Power the servo from a separate 5V supply for anything beyond a single small SG90 - a board's own 5V pin can't supply a servo's stall current.
6#include <Servo.h>
7
8Servo myServo;
9#define SERVO_PIN 15
10
11voidsetup() {
12Serial.begin(115200);
13 myServo.attach(SERVO_PIN);
14}
15
16voidloop() {
17for (int angle = 0; angle <= 180; angle += 5) {
18 myServo.write(angle);
19delay(20);
20 }
21for (int angle = 180; angle >= 0; angle -= 5) {
22 myServo.write(angle);
23delay(20);
24 }
25}
Digital micro servo, higher torque than SG90, 0-180 degree position control.
Specification
