Load / Pressure / Force / Flex Sensor

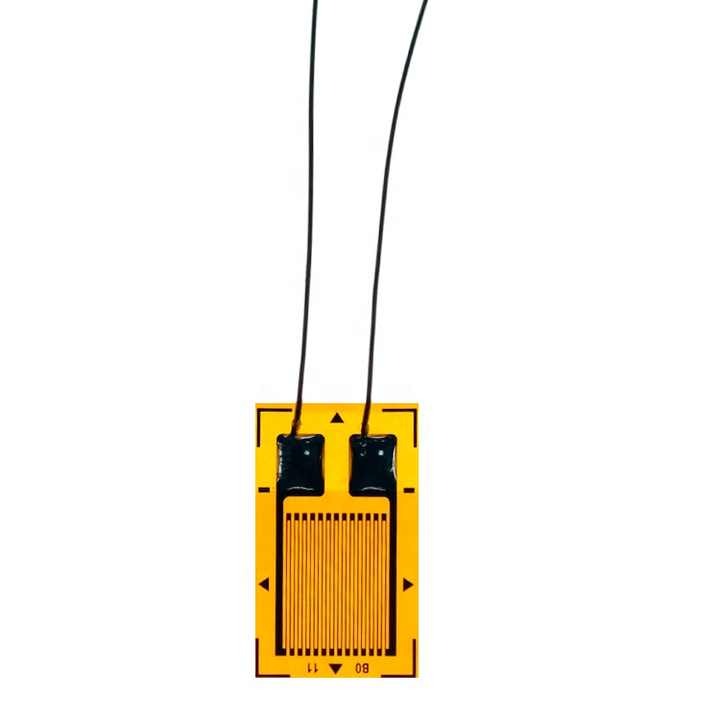

BF120-3AA Precision Strain Gauges (120Ω) for Load Cells
50,00 EGP- 120Ω high-accuracy foil strain gauge
- Gauge factor: 2.0 ± 1% for precise signal output
- Compact 3×5mm grid for easy mounting
- Wide temperature range: -20°C to +80°C
- Stable, durable build suitable for long-term engineering use
Flex Sensor 5.6 cm (Detect Bending Motion)
750,00 EGP-
5.6 cm length flexible sensor
-
Resistance varies with bending angle (approx. 10 kΩ flat)
-
Easy to interface with microcontrollers
-
Durable and responsive to motion
-
Ideal for motion and gesture detection

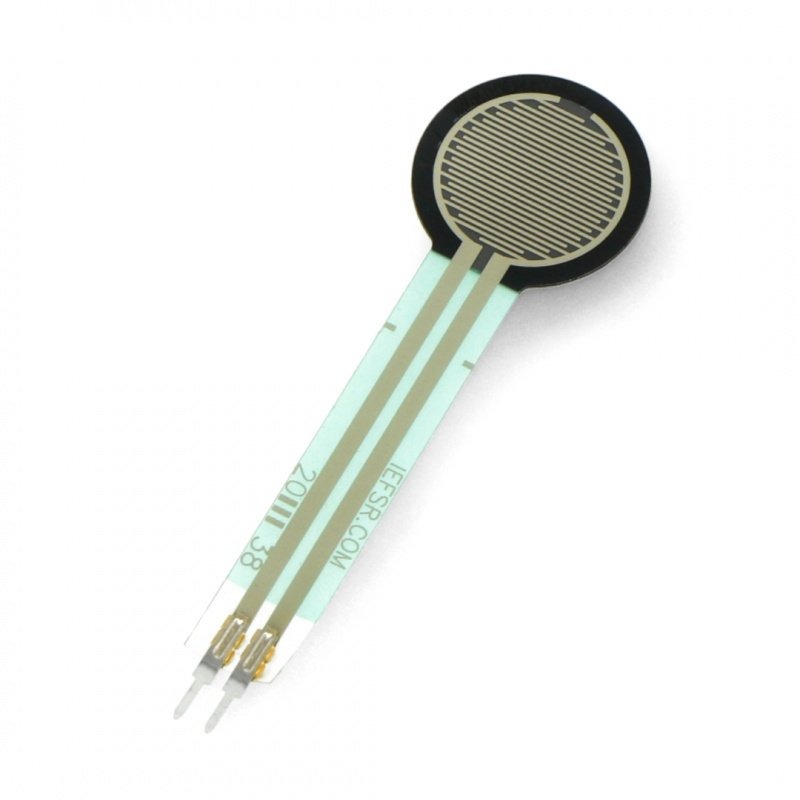

FSR402 Round Force Sensor
450,00 EGP-
Force-sensitive resistor – resistance decreases with applied pressure
-
12.7mm round sensing area for compact integration
-
Thin and flexible – fits easily into tight or curved spaces
-
Compatible with analog input on Arduino, Raspberry Pi, ESP32, etc.
-
Detects touch, weight, and pressure from ~0.2N to 20N
-
Fast response time – <1 millisecond activation

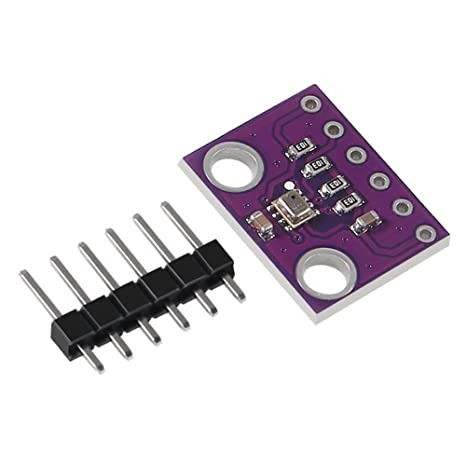

GY-BMP280-3.3 Precision Altimeter Atmospheric Pressure BMP280 Sensor Module
70,00 EGP- Comes with the BME280 sensor.
- Pressure accuracy of ±1 hPa.
- Temperature accuracy ±1.0°C.
- Altimeter accuracy ±1 meter.
- Humidity: +-3%

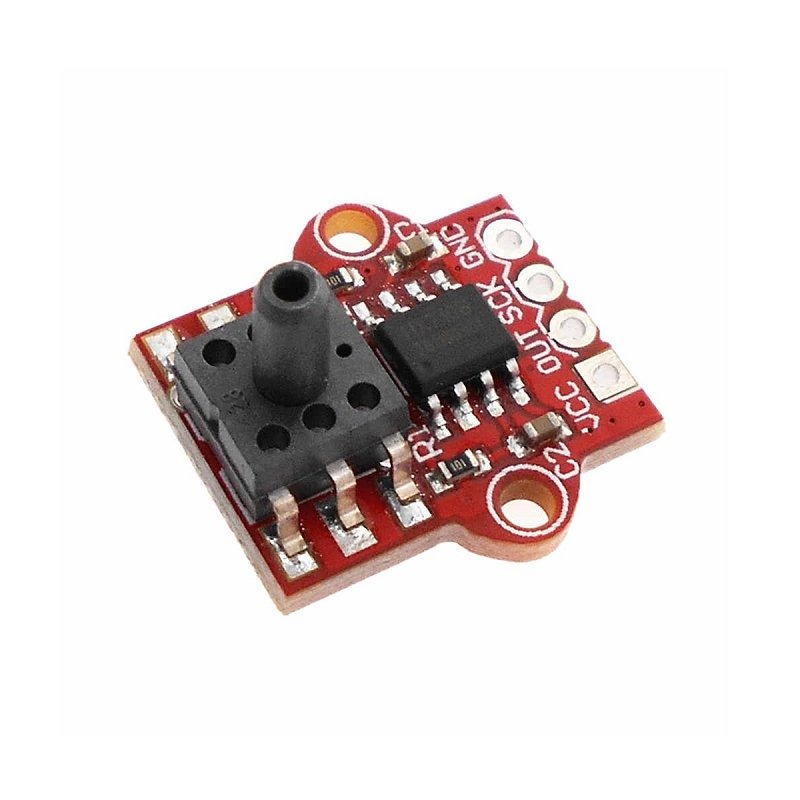

Hx710B Air Pressure (0-40Kpa) Sensor Module
230,00 EGP- Model: HX710B
- Data Output Rate:10 SPS / 80SPS
- Max. Operating Current (mA):1.5
- IC Package:16 Pin SOP

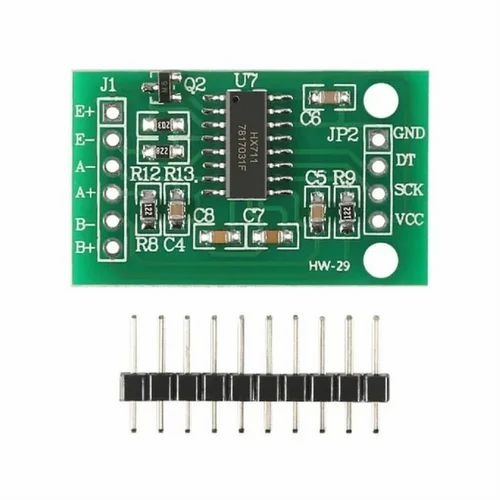

HX711 Dual-Channel 24 Bit Precision A/D weight Pressure Sensor
65,00 EGP- Output Sensitivity: 1.0 ± 0.1 mV / V.
- Two selectable differential input channels.
- On-chip active low noise PGA with the selectable gain of 32, 64 and 128.
- On-chip oscillator requiring no external component with optional external crystal.
- On-chip power-on-reset.
- Measurement Resolution: 24 bit.

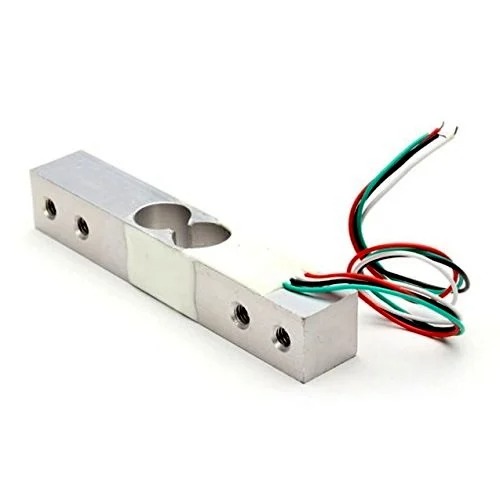

Load Cell Sensor 10Kg
125,00 EGP- Measures weight/force up to 10 kg with high precision
- Uses strain gauge technology with 4-wire Wheatstone bridge
- Made from durable aluminum alloy for reliable performance
- Easy to interface with HX711 24-bit ADC module for Arduino
- Operates on 5-10V driving voltage
- Compact design, simple installation with screw mount
- Ideal for electronic weighing scales and force measurement applications
Load Cell Sensor 1Kg
105,00 EGP- Measures weight/force up to 1 kg with high precision
- Uses strain gauge technology with 4-wire Wheatstone bridge
- Made from durable aluminum alloy for reliable performance
- Easy to interface with HX711 24-bit ADC module for Arduino
- Operates on 5-10V driving voltage
- Compact design, simple installation with screw mount
- Ideal for electronic weighing scales and force measurement applications
Load Cell Sensor 20Kg
180,00 EGP- Rated Load: 20Kg
- Rated Output: 1.0 ±0.15mV/V
- Zero Output: ±0.1mV/V
- Cree: 0.03%F.S./30min
- Input End: Red+, Black-
- Output End: Green+, White-
- Input Impedance: 1115±10% Ω
Load Cell Sensor 5Kg
120,00 EGP- Measures weight/force up to 5 kg with high precision
- Uses strain gauge technology with 4-wire Wheatstone bridge
- Made from durable aluminum alloy for reliable performance
- Easy to interface with HX711 24-bit ADC module for Arduino
- Operates on 5-10V driving voltage
- Compact design, simple installation with screw mount
- Ideal for electronic weighing scales and force measurement applications
