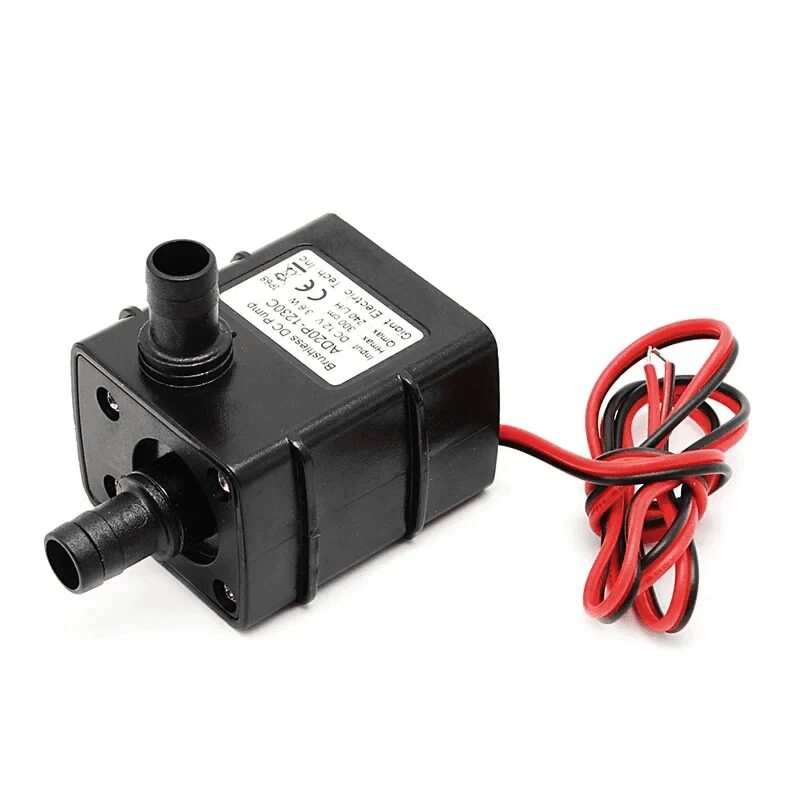

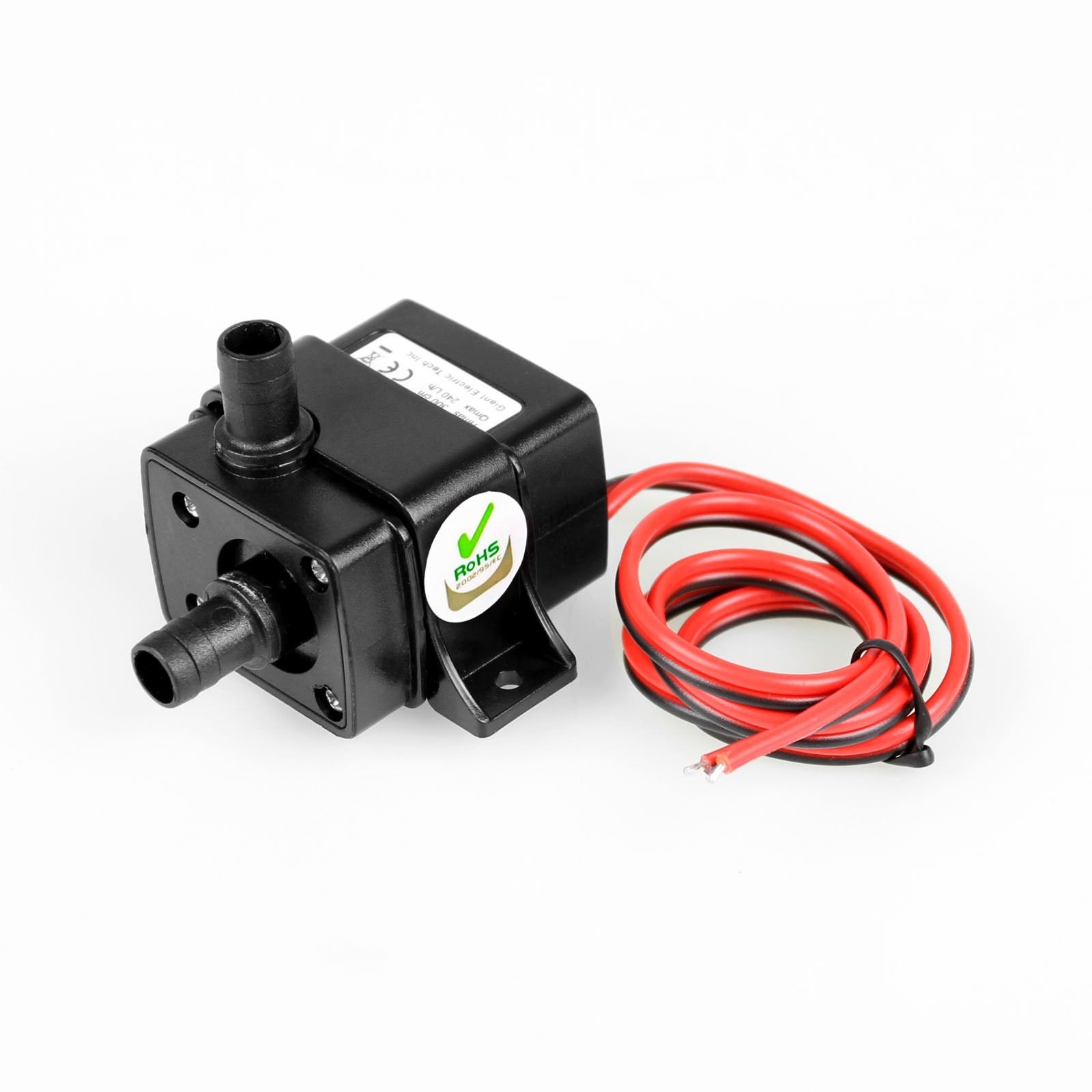

Ultra-Quiet DC 12V 3M 240L/H Brushless Submersible Water Pump

12V DC brushless motor pump
Max flow: 240 liters/hour
Max lift height: 3 meters
Ultra-quiet and energy-efficient
Submersible and compact design

SKU: aa0196 Categories: Motors | Drivers | Pumps | Actuators, Water Pump Tags: Motors, Water Pump

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

300,00 EGP

Compare

16 People watching this product now!

Payment Methods:

Description

You might be searching for a pump that operates on 12 V and gives an output of above 240L/H then this could be the best choice for your project.

This Ultra-Quiet DC 12V 3M 240L/H Brushless Submersible Water Pump is a low-cost, small size Submersible Pump. It can take up to 240 liters per hour with a very low current consumption from 300mA. Just connect the tube pipe to the motor outlet, submerge it in water, and power it. The black color pump comes with a heavy-duty cable and a 5mm DC female jack at the end to connect directly to the 12V power supply. It is widely used in prototype projects as well as for decoration purposes.

Caution:

Make sure that the water level is always higher than the motor. The dry run may damage the motor due to heating and it will also produce noise.

Features :

Super long working life(more than 30000 hours); Adopt high-performance ceramic shaft.
The axis is enclosed with static sealing, not dynamic, which can avoid leaking problems.
Amphibious design; Submersible installation and entirely waterproof.
low consumption; low noise(less than 35db), used in computer cooling system, Garden fountain.
Used in Aquarium, car cooling, humidifier, air conditioner, other cooling and circulation systems.

Package Includes :

1 x Ultra-Quiet DC 12V 3M 240L/H Brushless Submersible Water Pump

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
Pump	to H-bridge OUT	motor leads into an H-bridge driver's output terminals

📟

Ultra-Quiet DC 12V 3M 240L/H Brushless Submersible Water Pump

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

Ultra-Quiet DC 12V 3M 240L/H Brushless Submersible Water Pump - Arduino Uno

Ultra-Quiet DC 12V 3M 240L/H Brushless Submersible Water Pump - Arduino Nano

Ultra-Quiet DC 12V 3M 240L/H Brushless Submersible Water Pump - Arduino Mega

Ultra-Quiet DC 12V 3M 240L/H Brushless Submersible Water Pump - ESP32

Ultra-Quiet DC 12V 3M 240L/H Brushless Submersible Water Pump - ESP8266

Ultra-Quiet DC 12V 3M 240L/H Brushless Submersible Water Pump - STM32

Ultra-Quiet DC 12V 3M 240L/H Brushless Submersible Water Pump - Raspberry Pi Pico

📄 File: ultra-quiet_dc_12v_3m_240l/h_brushless_submersible_water_pump_-_arduino_uno.inoArduino Uno

666 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Ultra-Quiet DC 12V 3M 240L/H Brushless Submersible Water Pump needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=8, IN2=9, ENA(speed)=10 on Arduino Uno.

6#define IN1 8

7#define IN2 9

8#define ENA 10

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: ultra-quiet_dc_12v_3m_240l/h_brushless_submersible_water_pump_-_arduino_nano.inoArduino Nano

667 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

6#define IN1 8

7#define IN2 9

8#define ENA 10

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: ultra-quiet_dc_12v_3m_240l/h_brushless_submersible_water_pump_-_arduino_mega.inoArduino Mega

667 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

6#define IN1 8

7#define IN2 9

8#define ENA 10

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: ultra-quiet_dc_12v_3m_240l/h_brushless_submersible_water_pump_-_esp32.inoESP32

664 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

6#define IN1 26

7#define IN2 27

8#define ENA 25

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: ultra-quiet_dc_12v_3m_240l/h_brushless_submersible_water_pump_-_esp8266.inoESP8266

666 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

6#define IN1 D5

7#define IN2 D6

8#define ENA D7

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: ultra-quiet_dc_12v_3m_240l/h_brushless_submersible_water_pump_-_stm32.inoSTM32

670 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

6#define IN1 PB0

7#define IN2 PB1

8#define ENA PA8

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: ultra-quiet_dc_12v_3m_240l/h_brushless_submersible_water_pump_-_raspberry_pi_pico.inoRaspberry Pi Pico

676 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

6#define IN1 14

7#define IN2 15

8#define ENA 16

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

Project Notes:

A DC water pump is electrically just a DC motor - drive it through the same kind of H-bridge or single-transistor switch.

Specification

WeightWeight	3,0000 g
Dimensions	6 × 3,5 × 3,5 cm
Product Name	Ultra-Quiet DC 12V Brushless Submersible Water Pump – 3M, 240 L/H
Type	Submersible Water Pump
Operating Voltage	12 V DC
Pump Type	Brushless DC Motor
Maximum Flow Rate	240 L/H
Maximum Head / Lift	3 m
Power Consumption	~4–6 W (typical)
Noise Level	Ultra-Quiet
Material	Plastic Housing with Internal Brushless Motor
Connection Type	2-Pin Wire Leads
Operating Temperature	0°C to +50°C (liquid temperature)
Applications	Aquarium, Fountain, Water Circulation, Arduino / DIY Water Projects, Small Hydroponics Systems
Package Contents	1× Ultra-Quiet DC 12V Brushless Submersible Water Pump – 3M, 240 L/H
