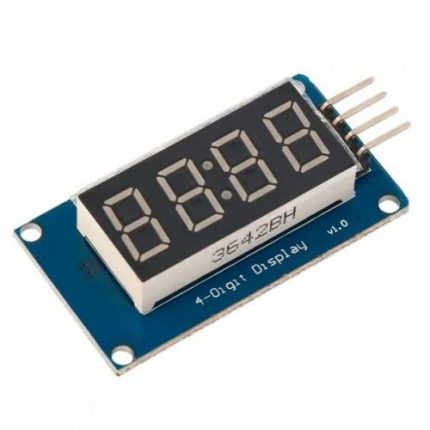

TM1637 4 Bits Digital Tube LED Display Module With Clock Display for Arduino

  1. Driver Chip: MAX7219
  2. Input Voltage: 3.7 to 5.3 V
  3. Input Current: 30 mA
  4. Display Dimensions: 42x24x12 (LxWxH) mm
SKU: NA042 Categories: , Tag:

EGP70.00

16 People watching this product now!
  • Pick up from the Ekostra Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

1-3 Days

50 LE

  • Free 14-Day returns

Payment Methods:

Description

The TM1637 4 Bits Digital Tube LED Display Module is an affordable solution for displaying the output data of your Arduino project. Though the data displayed is restricted by numbers still it allows users to display some characters too like A, B, C etc.

This 7 segment LED Display has 4 digits which are controlled by TM1637 Driver Chip. It requires only two connections to control this TM1637 4 Bits Digital Tube LED Display Module. Also thanks to the I2C Bus you can control it using only 2 wires, leaving more pins available on your MicroController to connect other things.

The module is a 12-foot clock with four common anode tube (0.36 inch) display module for driver IC TM1637, only two signal lines can make the MCU control four 7-segment digital tubes.

There are several modules using this TM1637 chip to form a 4 digit numerical display module. TM1637 has also keyboard input capability but is not used in this module.

Pinout Description :

LED Display module to Arduino

GND    –    GND
Vcc       –     5V
DIO     –      D2
CLK     –     D3


Features :

  1. Ease to use.
  2. Ease of multiplexing.
  3. Can use as a 4 digit display unit.
  4. Can use as a clock display.
  5. DIY clock project.
  6. 4 digit display unit.
  7. Electrical/Electronic projects.
  8. The counter project using 7 segment display.
  9. 4 M2 screws positioning holes for easy installation

Package Includes :

1 x 4 Bits Digital Tube LED Display Module (Version V1.2 )


Tutorial :

Specification

Overview

Input Voltage (V)

3.3 to 5.5

Max. Operating Current (mA)

30

Shipping Info

Weight

10.0000 g

Dimensions

42 × 24 × 12 mm

attach files



Code

//WWW.EKOSTRA.COM
// Include the library
#include <TM1637Display.h>

// Define the connections pins
#define CLK 3
#define DIO 4

// Create a display object of type TM1637Display
TM1637Display display = TM1637Display(CLK, DIO);

// Create an array that turns all segments ON
const uint8_t allON[] = {0xff, 0xff, 0xff, 0xff};

// Create an array that turns all segments OFF
const uint8_t allOFF[] = {0x00, 0x00, 0x00, 0x00};

// Create an array that sets individual segments per digit to display the word "dOnE"
const uint8_t done[] = {
  SEG_B | SEG_C | SEG_D | SEG_E | SEG_G,           // d
  SEG_A | SEG_B | SEG_C | SEG_D | SEG_E | SEG_F,   // O
  SEG_C | SEG_E | SEG_G,                           // n
  SEG_A | SEG_D | SEG_E | SEG_F | SEG_G            // E
};

// Create degree celsius symbol
const uint8_t celsius[] = {
  SEG_A | SEG_B | SEG_F | SEG_G,  // Degree symbol
  SEG_A | SEG_D | SEG_E | SEG_F   // C
};

void setup() {

}

void loop() {
    // Set the brightness to 5 (0=dimmest 7=brightest)
    display.setBrightness(5);

    // Set all segments ON
    display.setSegments(allON);

    delay(2000);
    display.clear();

    // Show counter 0-9
    int i;
    for (i = 0; i < 10; i++) {
        display.showNumberDec(i);
        delay(50);
    }

    delay(2000);
    display.clear();

    display.showNumberDec(-12);			// Prints _-12
    delay(2000);
    display.clear();

    display.showNumberDec(-999);		// Prints -999
    delay(2000);
    display.clear();

    display.showNumberDec(31, false);	// Prints __31
    delay(2000);
    display.clear();

    display.showNumberDec(31, true);	// Prints 0031
    delay(2000);
    display.clear();

    display.showNumberDec(14, false, 2, 1);	// Prints _14_
    delay(2000);
    display.clear();

    display.showNumberDec(-5, false, 3, 0);	// Prints _-5_
    delay(2000);
    display.clear();

    // Prints 12:34
    display.showNumberDecEx(1234, 0b11100000, false, 4, 0);

    delay(2000);
    display.clear();

    // Prints 15°C
    int temperature = 15;
    display.showNumberDec(temperature, false, 2, 0);
    display.setSegments(celsius, 2, 2);

    delay(2000);
    display.clear();

    // Prints dOnE
    display.setSegments(done);

    while(1);
}



Circuit diagram
