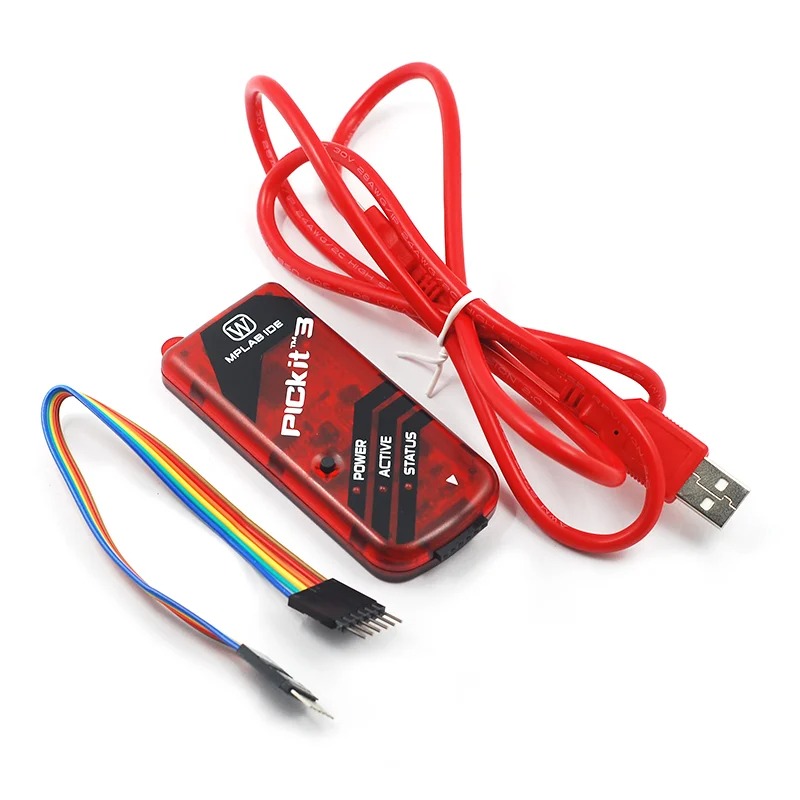

PICkit3 Debugger Programmer Emulator Controller Development Board

  1. Full-speed USB support using Windows standard drivers
  2. Real-time execution
  3. Processors run at maximum speeds
  4. Built-in over-voltage/short circuit monitor
  5. Low voltage to 5V (1.8 to the 5V range)
  6. Read/write program and data memory of the microcontroller
  7. Program up to 512K byte flash.

EGP1,800.00

In stock

SKU: AA036 Category: Tag:
Estimated delivery dates: 12-12-2024 - 16-12-2024

This is PICkit3 Debugger Programmer Emulator Controller Development board w/ Pinout diagram to ease the customer. The USB connection is more stable than ICD2.

PICKIT3.5, begin to support Win7 system. Full patch design, patch through the reflow soldering processing, more stable quality. PIC developing data, C language development tool manual. A lot of PIC basic experiment program code; ICD2 PICKIT3 etc application specification.

The MPLAB PICkit 3 allows debugging and programming of PIC® and dsPIC® Flash microcontrollers at a most affordable price point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit 3 is connected to the design engineer’s PC using a full-speed USB interface and can connect to the target via a Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2, MPLAB ICD 3 and MPLAB REAL ICE).

Note: This product comes with 5 pin cable. For more info., please refer the video shown in the attachments.

Pickit3 Pinout:

Buy Pickit3 Pinout At Low Price


Features :

  1. Full-speed USB support using Windows standard drivers
  2. Real-time execution
  3. Processors run at maximum speeds
  4. Built-in over-voltage/short circuit monitor
  5. Low voltage to 5V (1.8 to the 5V range)
  6. Read/write program and data memory of the microcontroller
  7. Diagnostic LEDs (power, active, status)
  8. Read/write program and data memory of the microcontroller
  9. 1Erase of all memory types (EEPROM, ID, configuration, and program) with verification
  10. Peripheral freeze at the breakpoint.
  11. Program up to 512K byte flash.

Package Includes :

1 x PICKIT3 Programmer.

1 x USB cable

1x 6pin cable

A DVD

Video

Attachments

0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “PICkit3 Debugger Programmer Emulator Controller Development Board”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Get a discount when you buy more

Specification

Dimensions 95 × 40 × 11.5 mm
Input Supply voltage (V)

1.8 ~ 5

Flash Memory (Kbytes)

512

Dimensions of PicKit3

As per below
