lm35 module

Name: lm35 module
SKU: EK2074
Price: 110.00 EGP
Availability: InStock

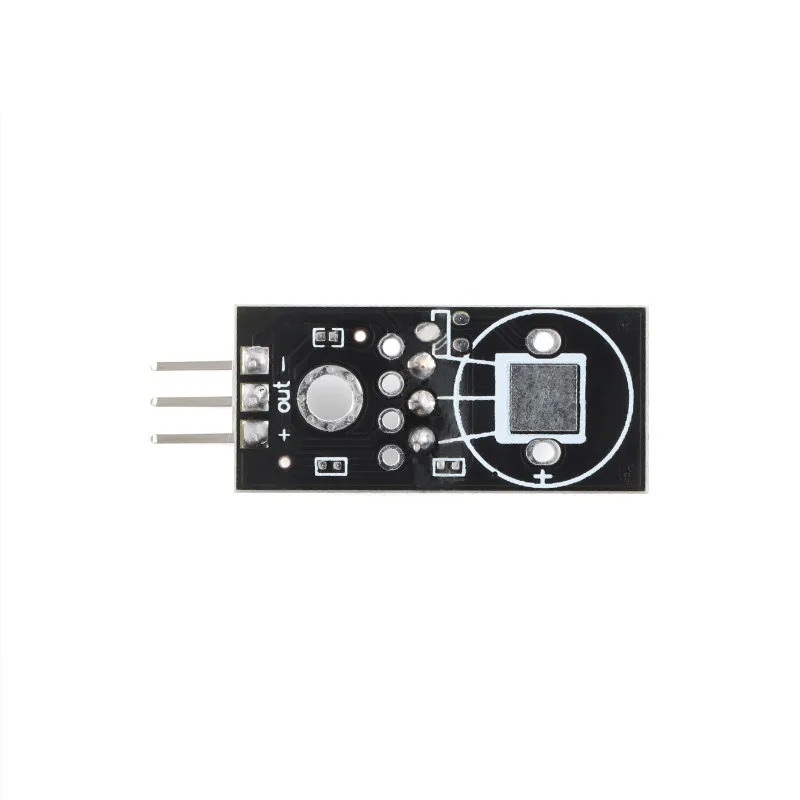

LM35 Module Temperature Sensor
1. Type: Analog Temperature Sensor
2. Output: 10mV per °C
3. Voltage: 4V – 20V DC
4. Current: < 60µA
5. Range: -55°C to +150°C

SKU: EK2074 Category: Temperature & Humidity Sensor Tags: analog sensor, Arduino, Celsius sensor, LM35 | LM35، مستشعر درجة حرارة، مستشعر تماثلي، مستشعر سيليزيوس، متحكم دقيق، أردوينو، مستشعر حراري، استشعار دقيق, Microcontroller, precision sensing, Temperature & Humidity Sensor, Temperature Sensor, thermal sensor

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

110,00 EGP

Compare

2 People watching this product now!

Payment Methods:

Description

The LM35 module is a precision temperature sensor that outputs an analog voltage directly proportional to the Celsius temperature scale. It eliminates the need for external calibration or trimming, providing a reliable and linear output for embedded systems and microcontroller-based projects. The module typically includes the LM35 IC alongside supporting passive components, offering a simple interface for temperature measurement.

Operating with a voltage range of 4-20V DC, the sensor draws a low quiescent current of less than 60µA, ensuring minimal power consumption. Its output voltage changes by 10mV per degree Celsius, enabling direct reading without complex mathematical conversions. The sensor’s linear scale and predictable response make it suitable for a wide range of thermal monitoring applications where accuracy and stability are prioritized over absolute precision.

Linear temperature coefficient: 10mV/°C
Wide operating voltage: 4V to 20V DC
Low self-heating: 0.08°C in still air
Operating temperature range: -55°C to +150°C
Low quiescent current: < 60µA
Direct Celsius scale output
Minimal external components required for operation
Standard analog output interface for easy integration

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
LM35	VCC/GND/OUT	4-5V (or 3.3V, still works) / GND / board analog pin

📟

lm35 module

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

lm35 module - Arduino Uno

lm35 module - Arduino Nano

lm35 module - Arduino Mega

lm35 module - ESP32

lm35 module - ESP8266

lm35 module - STM32

lm35 module - Raspberry Pi Pico

📄 File: lm35_module_-_arduino_uno.inoArduino Uno

518 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0 on Arduino Uno. LM35 outputs 10mV per degree C, referenced to 0V, so it also happens to fit 3.3V boards fine (max ~150C = 1.5V).

6#define LM35_PIN A0

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(LM35_PIN);

14 float voltage = raw * 5.0 / 1023.0;

15 float tempC = voltage * 100.0; // 10mV/C -> volts*100 = degrees C

17 Serial.print("Temperature: "); Serial.print(tempC); Serial.println(" C");

19 delay(500);

20}

📄 File: lm35_module_-_arduino_nano.inoArduino Nano

519 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0 on Arduino Nano. LM35 outputs 10mV per degree C, referenced to 0V, so it also happens to fit 3.3V boards fine (max ~150C = 1.5V).

6#define LM35_PIN A0

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(LM35_PIN);

14 float voltage = raw * 5.0 / 1023.0;

15 float tempC = voltage * 100.0; // 10mV/C -> volts*100 = degrees C

17 Serial.print("Temperature: "); Serial.print(tempC); Serial.println(" C");

19 delay(500);

20}

📄 File: lm35_module_-_arduino_mega.inoArduino Mega

519 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0 on Arduino Mega. LM35 outputs 10mV per degree C, referenced to 0V, so it also happens to fit 3.3V boards fine (max ~150C = 1.5V).

6#define LM35_PIN A0

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(LM35_PIN);

14 float voltage = raw * 5.0 / 1023.0;

15 float tempC = voltage * 100.0; // 10mV/C -> volts*100 = degrees C

17 Serial.print("Temperature: "); Serial.print(tempC); Serial.println(" C");

19 delay(500);

20}

📄 File: lm35_module_-_esp32.inoESP32

512 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin 34 on ESP32. LM35 outputs 10mV per degree C, referenced to 0V, so it also happens to fit 3.3V boards fine (max ~150C = 1.5V).

6#define LM35_PIN 34

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(LM35_PIN);

14 float voltage = raw * 3.3 / 4095.0;

15 float tempC = voltage * 100.0; // 10mV/C -> volts*100 = degrees C

17 Serial.print("Temperature: "); Serial.print(tempC); Serial.println(" C");

19 delay(500);

20}

📄 File: lm35_module_-_esp8266.inoESP8266

514 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0 on ESP8266. LM35 outputs 10mV per degree C, referenced to 0V, so it also happens to fit 3.3V boards fine (max ~150C = 1.5V).

6#define LM35_PIN A0

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(LM35_PIN);

14 float voltage = raw * 3.3 / 1023.0;

15 float tempC = voltage * 100.0; // 10mV/C -> volts*100 = degrees C

17 Serial.print("Temperature: "); Serial.print(tempC); Serial.println(" C");

19 delay(500);

20}

📄 File: lm35_module_-_stm32.inoSTM32

514 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin PA0 on STM32. LM35 outputs 10mV per degree C, referenced to 0V, so it also happens to fit 3.3V boards fine (max ~150C = 1.5V).

6#define LM35_PIN PA0

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(LM35_PIN);

14 float voltage = raw * 3.3 / 4095.0;

15 float tempC = voltage * 100.0; // 10mV/C -> volts*100 = degrees C

17 Serial.print("Temperature: "); Serial.print(tempC); Serial.println(" C");

19 delay(500);

20}

📄 File: lm35_module_-_raspberry_pi_pico.inoRaspberry Pi Pico

524 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin 26 on Raspberry Pi Pico. LM35 outputs 10mV per degree C, referenced to 0V, so it also happens to fit 3.3V boards fine (max ~150C = 1.5V).

6#define LM35_PIN 26

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(LM35_PIN);

14 float voltage = raw * 3.3 / 4095.0;

15 float tempC = voltage * 100.0; // 10mV/C -> volts*100 = degrees C

17 Serial.print("Temperature: "); Serial.print(tempC); Serial.println(" C");

19 delay(500);

20}

Project Notes:

Analog precision temperature IC, 10mV/deg C.

Specification

WeightWeight	10 g
Dimensions	5 × 4 × 2 cm
Output Type	Analog Voltage
Supply Voltage	4V – 20V DC
Quiescent Current	< 60µA
Temperature Range	-55°C to +150°C
Accuracy	±0.5°C (typical at 25°C)
Package Type	TO-92 (typically)
Interface	Analog
