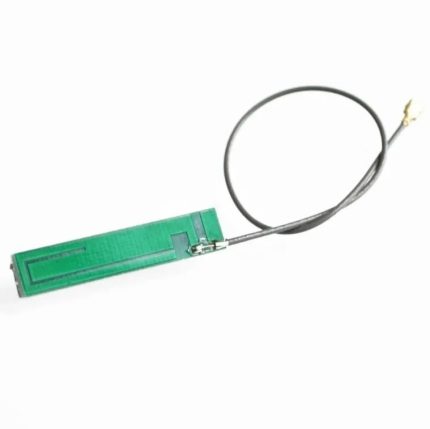

GSM/GPRS/3G PCB Antenna with IPEX Connector (15cm, 3dBi) for SIM800/Sim908/Sim900 (1520)
40,00 EGP
In stock
- Name: 2G 3G IPEX antenna
- Connector type: ipx13
- Gain definition: 3dBi (Typical)
- Frequency band definition: 1710
2170MHz 800960 - Impedance definition: 50 ohm
- Total length: as shown in Figure
- Impedance 50 Ohm
In stock
Shipping & Delivery
Receipt from the place on the same day or shipping to nearby places
On the same day
6PM - 10 PM
Delivery through a fast shipping company intermediary
1-3 Days
Description
GSM/GPRS/3G PCB Antenna with IPEX Connector (15cm, 3dBi) – Compatible with SIM800/SIM900/SIM908
This GSM/GPRS/3G PCB Antenna is designed for reliable and compact wireless communication in embedded systems. With a 3dBi gain and 15cm cable length, this antenna provides strong signal reception and transmission for GSM and 3G modules such as SIM800, SIM900, SIM908, and similar devices.
Equipped with an IPEX (U.FL) connector, it’s ideal for compact or enclosed applications where space is limited, yet a strong antenna signal is still essential.
Key Features
-
GSM/GPRS/3G compatible PCB antenna
-
Designed for use with SIM800, SIM900, SIM908 and other GSM modules
-
IPEX (U.FL) connector for easy integration with GSM breakout boards
-
Gain: 3dBi – enhances signal reception and transmission
-
Flexible 15cm coaxial cable for optimal placement
-
Compact and durable PCB design
Specifications
| Parameter | Value |
|---|---|
| Antenna Type | GSM/GPRS/3G PCB Antenna |
| Frequency Range | 824–960MHz / 1710–1990MHz |
| Gain | 3dBi |
| Connector Type | IPEX / U.FL |
| Cable Length | 15cm |
| Impedance | 50Ω |
| Compatibility | SIM800, SIM900, SIM908, etc. |
| Antenna Size | ~48mm x 18mm (PCB) |
Applications
-
GSM/GPRS/3G communication modules
-
Remote monitoring and control systems
-
IoT and M2M devices
-
Vehicle tracking systems
-
Smart meters and telemetry applications
Package Includes
-
1 × GSM/GPRS/3G PCB Antenna with IPEX Connector (15cm, 3dBi)
📡 Tip: Ensure your GSM module supports IPEX/U.FL connection before use. For better signal strength, position the antenna away from metal enclosures.
Customer Reviews
Specification
Overview
| Weight Weight | 0,0000 g |
|---|
Specification
| item-type |
PCB Antenna |
|---|---|
| material |
PCB |
| connector-type |
ipx13 |
| impedance-definition |
50 ohm |
| operating-temperature-c |
30 to ~ + 85°C |
| impedance-%cf%89 |
50 Ohm |
