FTDI FT232RL USB to TTL Converter Module TYPE-C USB
150,00 EGP
Only 1 left in stock
- FT232RL chipset – reliable USB-to-serial communication
- USB Type-C connector – reversible, modern design
- Supports 3.3V / 5V logic (selectable)
- Breakout pins: TX, RX, VCC, GND, CTS, DTR
- Plug-and-play on Windows, macOS, Linux
- Ideal for Arduino, ESP8266/ESP32, STM32
- Perfect for firmware flashing, serial debugging
Only 1 left in stock
Shipping & Delivery
Receipt from the place on the same day or shipping to nearby places
On the same day
6PM - 10 PM
Delivery through a fast shipping company intermediary
1-3 Days
Description

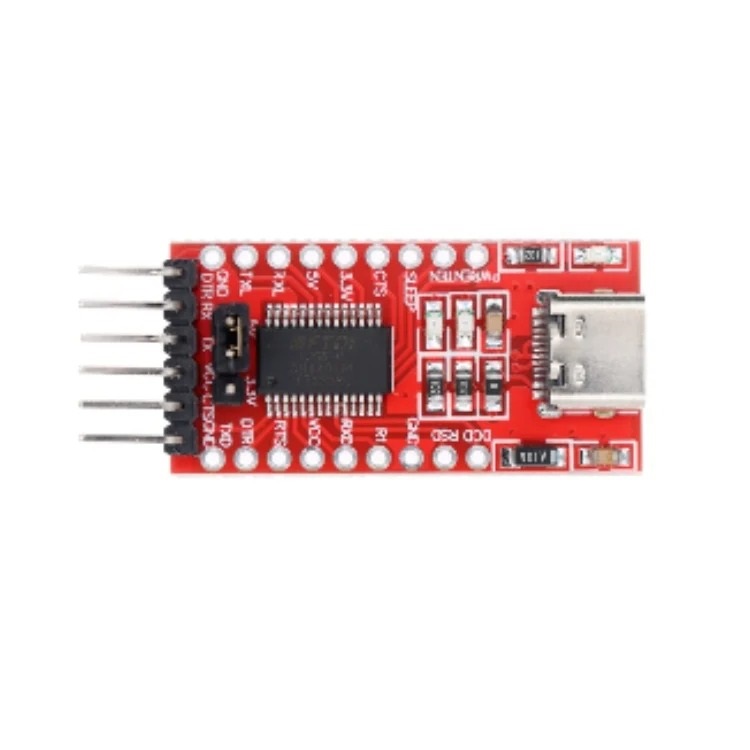

The FTDI FT232RL USB to TTL Converter Module (Type-C USB) is a compact and reliable serial communication interface that allows seamless data transfer between a computer and microcontroller or serial-enabled device. Built around the FT232RL chipset, it provides high-performance USB to UART (TTL) conversion with full support for modern operating systems.
Featuring a Type-C USB connector, this module ensures reversible plug orientation, durability, and future compatibility. It supports 3.3V and 5V logic levels, making it ideal for use with Arduino boards, ESP8266, ESP32, STM32, and other development platforms.
Key Features
-
Based on FTDI FT232RL chipset for reliable USB-to-serial communication
-
USB Type-C connector for modern connectivity and reversible plug
-
Supports both 3.3V and 5V logic levels (selectable via jumper or onboard switch)
-
Standard TX, RX, VCC, GND, CTS, DTR breakout pins
-
Compatible with Windows, macOS, Linux drivers (plug-and-play)
-
Ideal for programming microcontrollers, flashing firmware, debugging serial data
Specifications
| Parameter | Value |
|---|---|
| Chipset | FTDI FT232RL |
| USB Connector | USB Type-C |
| Logic Level Support | 3.3V / 5V (selectable) |
| Output Pins | TX, RX, VCC, GND, CTS, DTR |
| Driver Support | Windows, Linux, macOS |
| Baud Rate | Up to 3 Mbps |
| Board Dimensions | Compact, breadboard-friendly |
| Applications | UART communication, microcontroller programming, serial debugging |
Package Includes
-
1 × FTDI FT232RL USB to TTL Converter Module (Type-C USB)
