DC motor GW370 12V with encoder 200 RPM

Name: DC motor GW370 12V with encoder 200 RPM
SKU: Ek2070
Price: 750.00 EGP
Availability: InStock

DC Motor GW370 12V with Encoder 200 RPM
1. Voltage: 12V DC
2. Speed: 200 RPM (no-load)
3. Motor Size: GW370
4. Encoder: Incremental (quadrature)
5. Gear Type: Metal

SKU: Ek2070 Category: DC Motor Tags: 12V motor, 200 RPM, closed loop motor, DC Motor, DC motor | محرك تيار مستمر، GW370، محرك 12 فولت، 200 دورة في الدقيقة، محرك مزدوج التروس، محرك مزود بمشفر، مشفر رباعي، محرك حلقة مغلقة, encoder motor, geared motor, GW370, quadrature encoder

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

750,00 EGP

Compare

19 People watching this product now!

Payment Methods:

Description

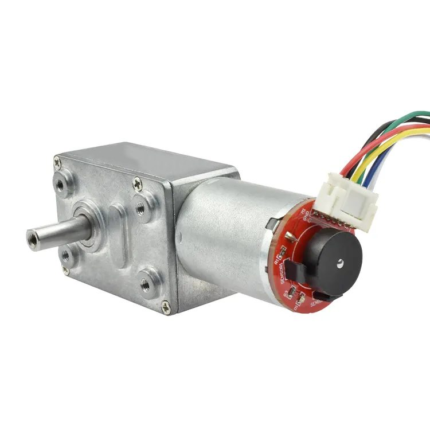

The DC Motor GW370 12V with Encoder is a brushed DC gearmotor offering a rated no-load speed of 200 RPM. It integrates a magnetic or optical encoder that provides feedback on the motor’s actual rotational position and speed, enabling closed-loop control. This feature is essential for applications requiring precise speed regulation, position control, or distance measurement.

Employing a GW370 size frame, this motor includes a durable metal gearbox, delivering increased torque at a moderate output speed. The quadrature encoder outputs two channels (A and B) that produce pulses with a 90° phase shift. By reading these signals, a controller can determine the direction of rotation, the speed, and the absolute position of the output shaft, allowing for sophisticated motion control algorithms.

Rated voltage: 12V DC
No-load speed: 200 RPM
Built-in incremental encoder for feedback
Quadrature output (Channel A and B)
GW370 frame size with metal gears
Suitable for precision robotics and automation
Compatible with microcontroller encoder inputs
Reliable performance in diverse operating conditions

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
Motor	to H-bridge OUT	motor leads into an H-bridge driver's output terminals

📟

DC motor GW370 12V with encoder 200 RPM

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

DC motor GW370 12V with encoder 200 RPM - Arduino Uno

DC motor GW370 12V with encoder 200 RPM - Arduino Nano

DC motor GW370 12V with encoder 200 RPM - Arduino Mega

DC motor GW370 12V with encoder 200 RPM - ESP32

DC motor GW370 12V with encoder 200 RPM - ESP8266

DC motor GW370 12V with encoder 200 RPM - STM32

DC motor GW370 12V with encoder 200 RPM - Raspberry Pi Pico

📄 File: dc_motor_gw370_12v_with_encoder_200_rpm_-_arduino_uno.inoArduino Uno

809 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC motor GW370 12V with encoder 200 RPM: drive via H-bridge (IN1=8, IN2=9, ENA=10) + read its built-in quadrature encoder (A=2, B=3) on Arduino Uno.

6#define IN1 8

7#define IN2 9

8#define ENA 10

9#define ENC_A 2

10#define ENC_B 3

12volatile long pulseCount = 0;

13void handleEncoder() {

14 pulseCount += (digitalRead(ENC_B) > 0) ? 1 : -1;

15}

17void setup() {

18 Serial.begin(115200);

19 pinMode(IN1, OUTPUT); pinMode(IN2, OUTPUT); pinMode(ENA, OUTPUT);

20 pinMode(ENC_A, INPUT_PULLUP); pinMode(ENC_B, INPUT_PULLUP);

21 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

22}

24void loop() {

25 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

26 analogWrite(ENA, 200);

28 Serial.print("Encoder pulses: "); Serial.println(pulseCount);

29 delay(200);

30}

📄 File: dc_motor_gw370_12v_with_encoder_200_rpm_-_arduino_nano.inoArduino Nano

810 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC motor GW370 12V with encoder 200 RPM: drive via H-bridge (IN1=8, IN2=9, ENA=10) + read its built-in quadrature encoder (A=2, B=3) on Arduino Nano.

6#define IN1 8

7#define IN2 9

8#define ENA 10

9#define ENC_A 2

10#define ENC_B 3

12volatile long pulseCount = 0;

13void handleEncoder() {

14 pulseCount += (digitalRead(ENC_B) > 0) ? 1 : -1;

15}

17void setup() {

18 Serial.begin(115200);

19 pinMode(IN1, OUTPUT); pinMode(IN2, OUTPUT); pinMode(ENA, OUTPUT);

20 pinMode(ENC_A, INPUT_PULLUP); pinMode(ENC_B, INPUT_PULLUP);

21 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

22}

24void loop() {

25 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

26 analogWrite(ENA, 200);

28 Serial.print("Encoder pulses: "); Serial.println(pulseCount);

29 delay(200);

30}

📄 File: dc_motor_gw370_12v_with_encoder_200_rpm_-_arduino_mega.inoArduino Mega

810 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC motor GW370 12V with encoder 200 RPM: drive via H-bridge (IN1=8, IN2=9, ENA=10) + read its built-in quadrature encoder (A=2, B=3) on Arduino Mega.

6#define IN1 8

7#define IN2 9

8#define ENA 10

9#define ENC_A 2

10#define ENC_B 3

12volatile long pulseCount = 0;

13void handleEncoder() {

14 pulseCount += (digitalRead(ENC_B) > 0) ? 1 : -1;

15}

17void setup() {

18 Serial.begin(115200);

19 pinMode(IN1, OUTPUT); pinMode(IN2, OUTPUT); pinMode(ENA, OUTPUT);

20 pinMode(ENC_A, INPUT_PULLUP); pinMode(ENC_B, INPUT_PULLUP);

21 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

22}

24void loop() {

25 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

26 analogWrite(ENA, 200);

28 Serial.print("Encoder pulses: "); Serial.println(pulseCount);

29 delay(200);

30}

📄 File: dc_motor_gw370_12v_with_encoder_200_rpm_-_esp32.inoESP32

811 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC motor GW370 12V with encoder 200 RPM: drive via H-bridge (IN1=26, IN2=27, ENA=25) + read its built-in quadrature encoder (A=32, B=33) on ESP32.

6#define IN1 26

7#define IN2 27

8#define ENA 25

9#define ENC_A 32

10#define ENC_B 33

12volatile long pulseCount = 0;

13void handleEncoder() {

14 pulseCount += (digitalRead(ENC_B) > 0) ? 1 : -1;

15}

17void setup() {

18 Serial.begin(115200);

19 pinMode(IN1, OUTPUT); pinMode(IN2, OUTPUT); pinMode(ENA, OUTPUT);

20 pinMode(ENC_A, INPUT_PULLUP); pinMode(ENC_B, INPUT_PULLUP);

21 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

22}

24void loop() {

25 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

26 analogWrite(ENA, 200);

28 Serial.print("Encoder pulses: "); Serial.println(pulseCount);

29 delay(200);

30}

📄 File: dc_motor_gw370_12v_with_encoder_200_rpm_-_esp8266.inoESP8266

813 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC motor GW370 12V with encoder 200 RPM: drive via H-bridge (IN1=D5, IN2=D6, ENA=D7) + read its built-in quadrature encoder (A=D5, B=D6) on ESP8266.

6#define IN1 D5

7#define IN2 D6

8#define ENA D7

9#define ENC_A D5

10#define ENC_B D6

12volatile long pulseCount = 0;

13void handleEncoder() {

14 pulseCount += (digitalRead(ENC_B) > 0) ? 1 : -1;

15}

17void setup() {

18 Serial.begin(115200);

19 pinMode(IN1, OUTPUT); pinMode(IN2, OUTPUT); pinMode(ENA, OUTPUT);

20 pinMode(ENC_A, INPUT_PULLUP); pinMode(ENC_B, INPUT_PULLUP);

21 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

22}

24void loop() {

25 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

26 analogWrite(ENA, 200);

28 Serial.print("Encoder pulses: "); Serial.println(pulseCount);

29 delay(200);

30}

📄 File: dc_motor_gw370_12v_with_encoder_200_rpm_-_stm32.inoSTM32

821 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC motor GW370 12V with encoder 200 RPM: drive via H-bridge (IN1=PB0, IN2=PB1, ENA=PA8) + read its built-in quadrature encoder (A=PA0, B=PA1) on STM32.

6#define IN1 PB0

7#define IN2 PB1

8#define ENA PA8

9#define ENC_A PA0

10#define ENC_B PA1

12volatile long pulseCount = 0;

13void handleEncoder() {

14 pulseCount += (digitalRead(ENC_B) > 0) ? 1 : -1;

15}

17void setup() {

18 Serial.begin(115200);

19 pinMode(IN1, OUTPUT); pinMode(IN2, OUTPUT); pinMode(ENA, OUTPUT);

20 pinMode(ENC_A, INPUT_PULLUP); pinMode(ENC_B, INPUT_PULLUP);

21 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

22}

24void loop() {

25 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

26 analogWrite(ENA, 200);

28 Serial.print("Encoder pulses: "); Serial.println(pulseCount);

29 delay(200);

30}

📄 File: dc_motor_gw370_12v_with_encoder_200_rpm_-_raspberry_pi_pico.inoRaspberry Pi Pico

823 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC motor GW370 12V with encoder 200 RPM: drive via H-bridge (IN1=14, IN2=15, ENA=16) + read its built-in quadrature encoder (A=20, B=21) on Raspberry Pi Pico.

6#define IN1 14

7#define IN2 15

8#define ENA 16

9#define ENC_A 20

10#define ENC_B 21

12volatile long pulseCount = 0;

13void handleEncoder() {

14 pulseCount += (digitalRead(ENC_B) > 0) ? 1 : -1;

15}

17void setup() {

18 Serial.begin(115200);

19 pinMode(IN1, OUTPUT); pinMode(IN2, OUTPUT); pinMode(ENA, OUTPUT);

20 pinMode(ENC_A, INPUT_PULLUP); pinMode(ENC_B, INPUT_PULLUP);

21 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

22}

24void loop() {

25 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

26 analogWrite(ENA, 200);

28 Serial.print("Encoder pulses: "); Serial.println(pulseCount);

29 delay(200);

30}

Project Notes:

Bare DC motor - needs an H-bridge driver module (L298N/L293D/L9110S) wired between it and the microcontroller, shown here with its built-in encoder read alongside.

Specification

WeightWeight	10 g
Dimensions	5 × 4 × 2 cm
Motor Type	Brushed DC
Voltage	12V DC
Speed (No-load)	200 RPM
Encoder Type	Incremental (quadrature)
Output Channels	2 (A and B)
Gearbox	Integrated, metal gears
Shaft Diameter	Standard GW370
Housing Size	GW370
