DC Gear Motor JGA25-370 (130RPM – 12V)
DC Gear Motor JGA25-370 (130RPM – 12V)
1. Model: JGA25-370
2. Operating Voltage: 12V DC
3. No-Load Speed: 130 RPM
4. Gearbox Type: Metal Spur Gear
5. Motor Diameter: 25mm
6. Shaft Type: D-cut (typically 4mm)
350,00 EGP
Description

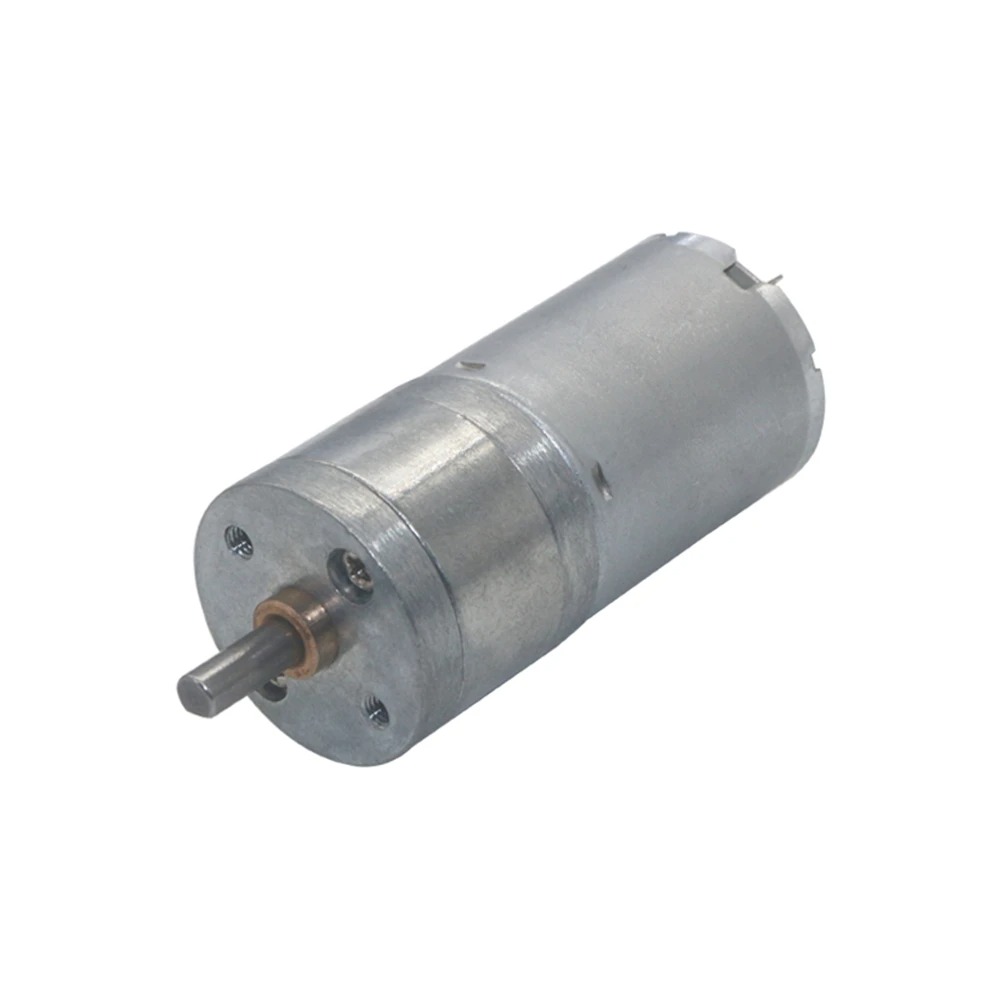

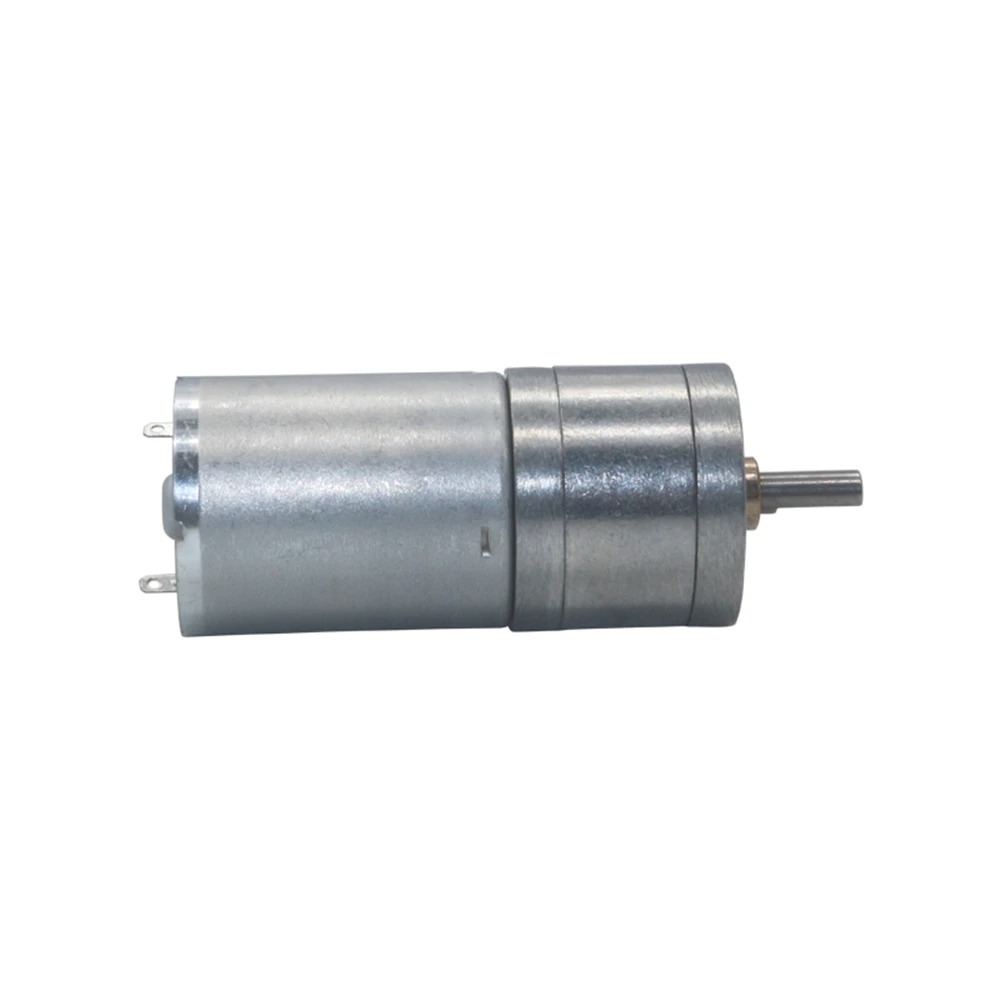

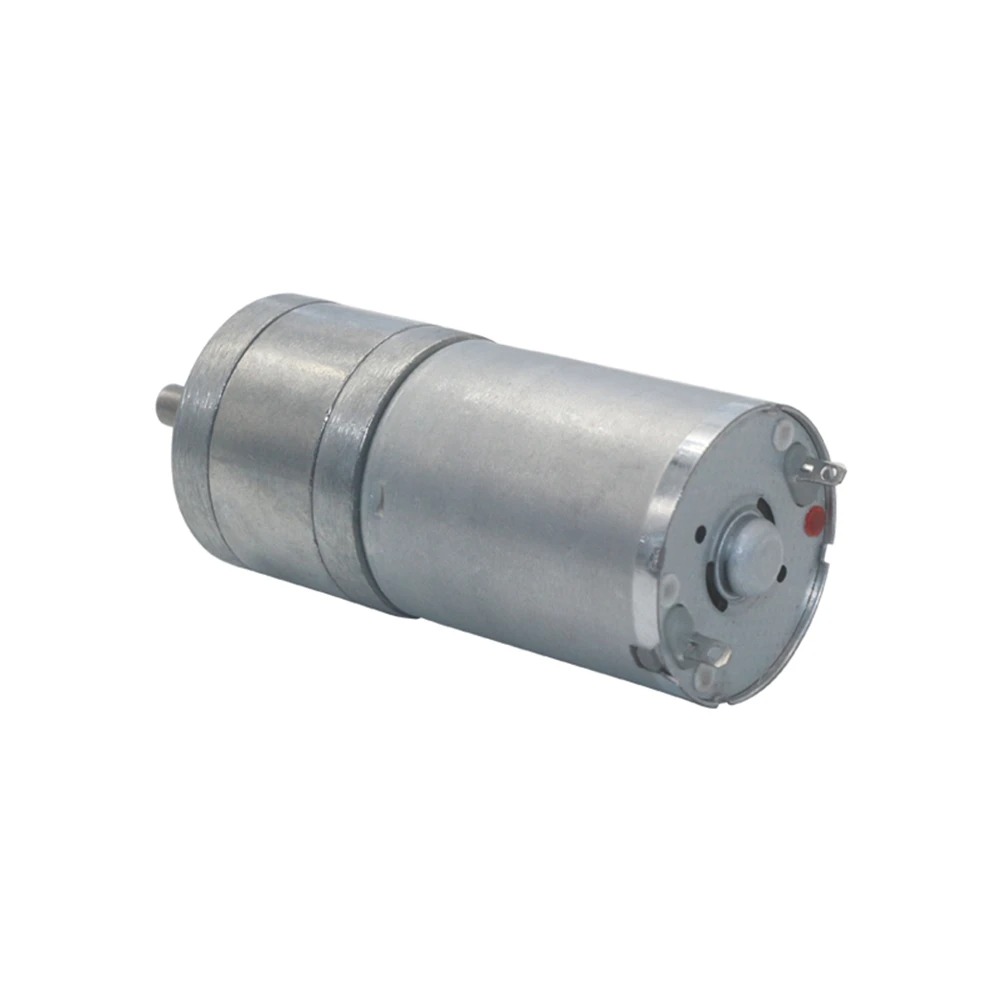

The DC Gear Motor JGA25-370 is a 12V DC motor paired with a metal spur gearbox, producing a no-load output speed of 130 RPM. The gearbox reduces the motor’s high native RPM down to a usable output speed while increasing torque.

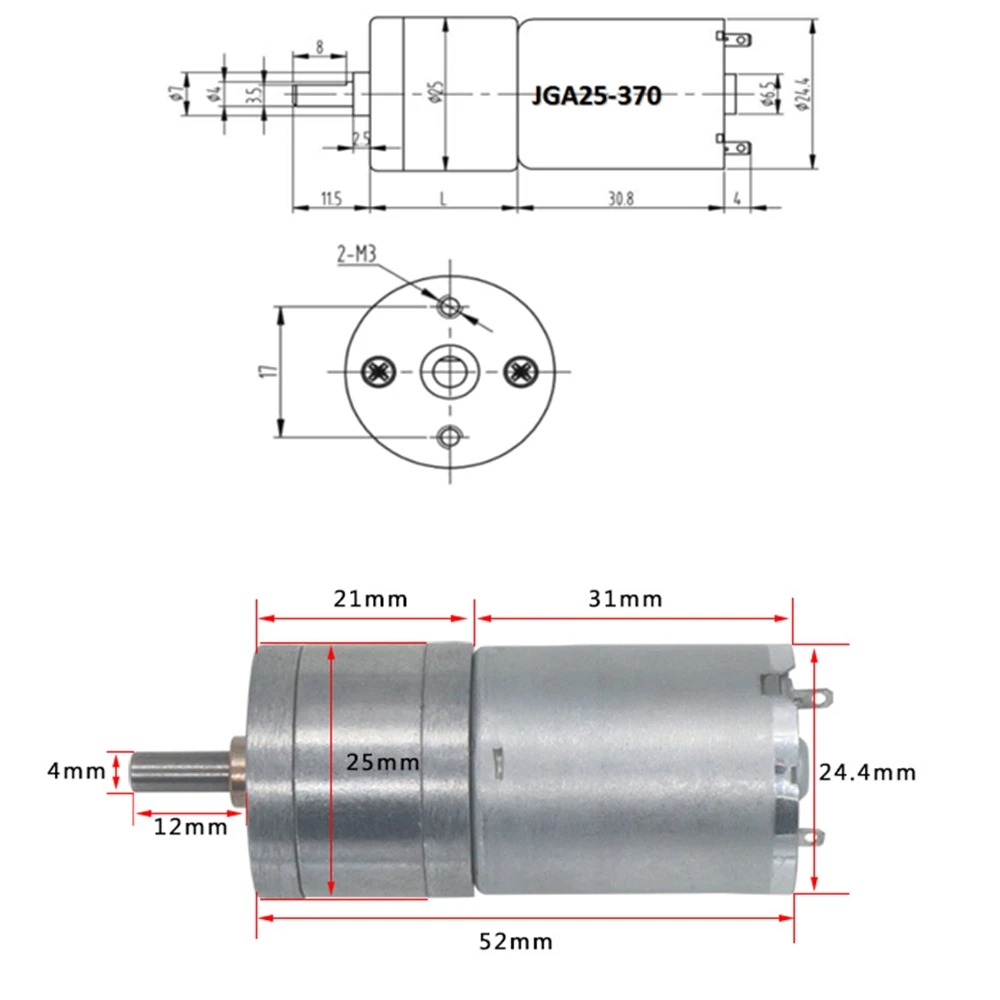

The motor housing measures 25mm in diameter, and output is delivered through a D-cut shaft, typically 4mm in diameter, which mates with wheel hubs, couplers, and other D-shaft-compatible mounting hardware without slipping.
Built with metal gears rather than plastic, this motor is aimed at applications needing sustained torque delivery, such as robotics, electric locks, and other DIY motorized mechanisms.
Features:
- Model: JGA25-370
- Operating voltage: 12V DC
- No-load speed: 130 RPM
- Metal spur gearbox for durability
- 25mm motor diameter, compact form factor
- D-cut output shaft (typically 4mm)
- Suited for robotics, electric locks, and motorized mechanisms
Specification
General
| WeightWeight | 0,0000 g |
|---|---|
| Model | JGA25-370 |
| Operating Voltage | 12V DC |
| No-Load Speed | 130 RPM |
| Gearbox Type | Spur Gear (Metal Gears) |
| Motor Diameter | 25mm |
| Shaft Type | D-cut (typically 4mm diameter) |
