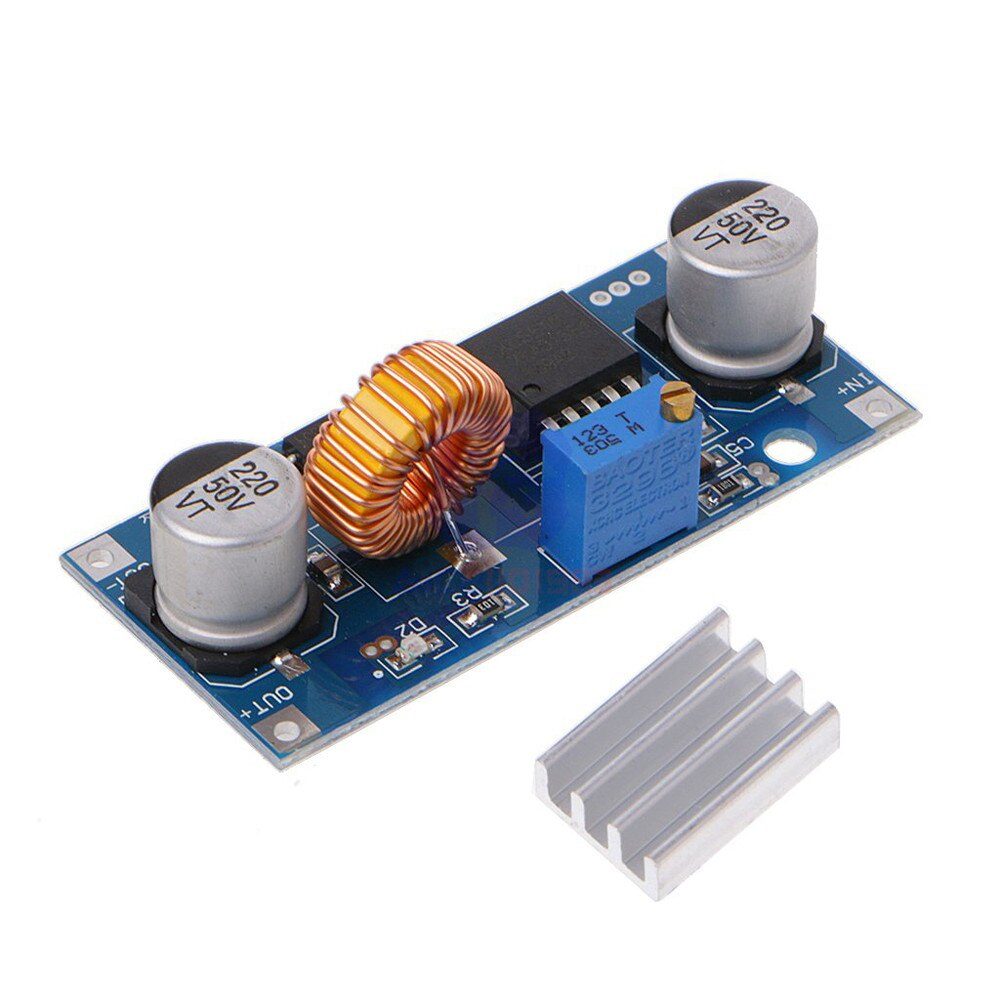

DC DC adjustable voltage converter 5A XL4015 With Heat Sink
- Adjustable output voltage via onboard potentiometer
- High output current up to 5A (4A recommended)
- Built-in heat sink for efficient cooling
- High efficiency up to 96%
- Overcurrent and thermal protection
- Stable and reliable power conversion
- LED indicator for power status
80,00 EGP
19
People watching this product now!
Description

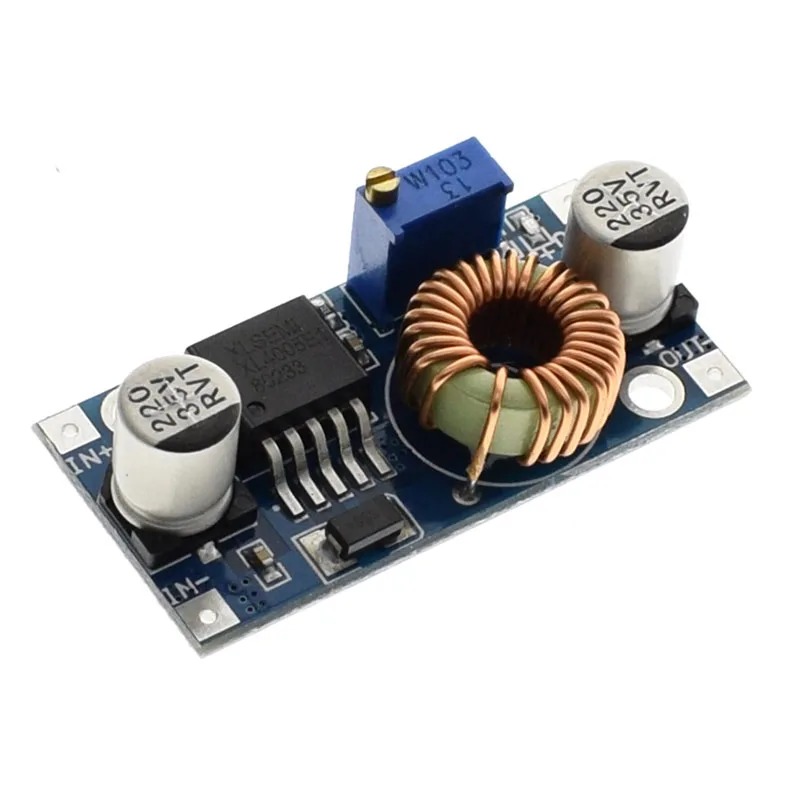

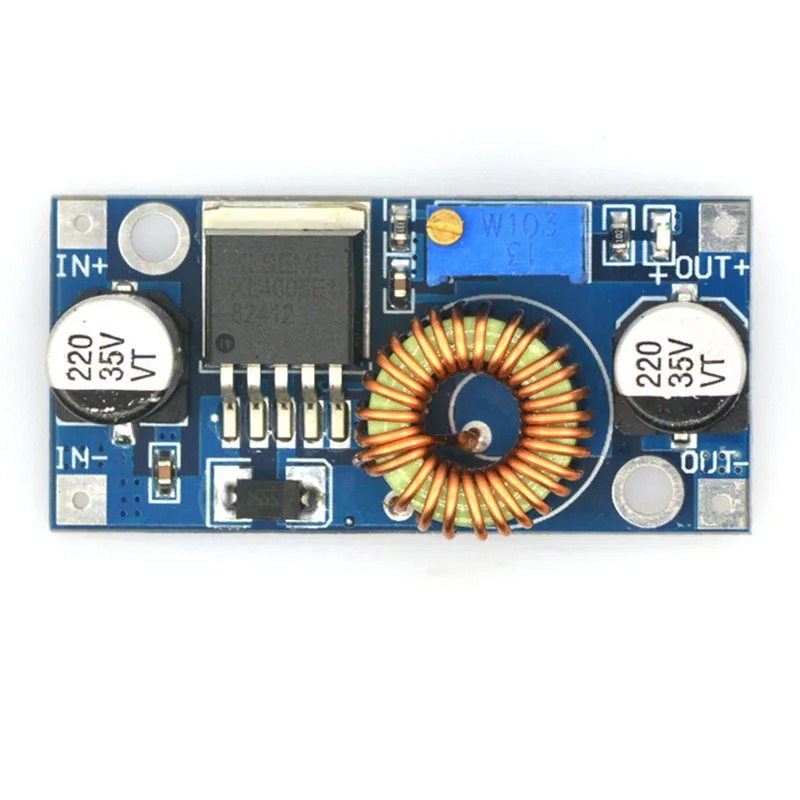

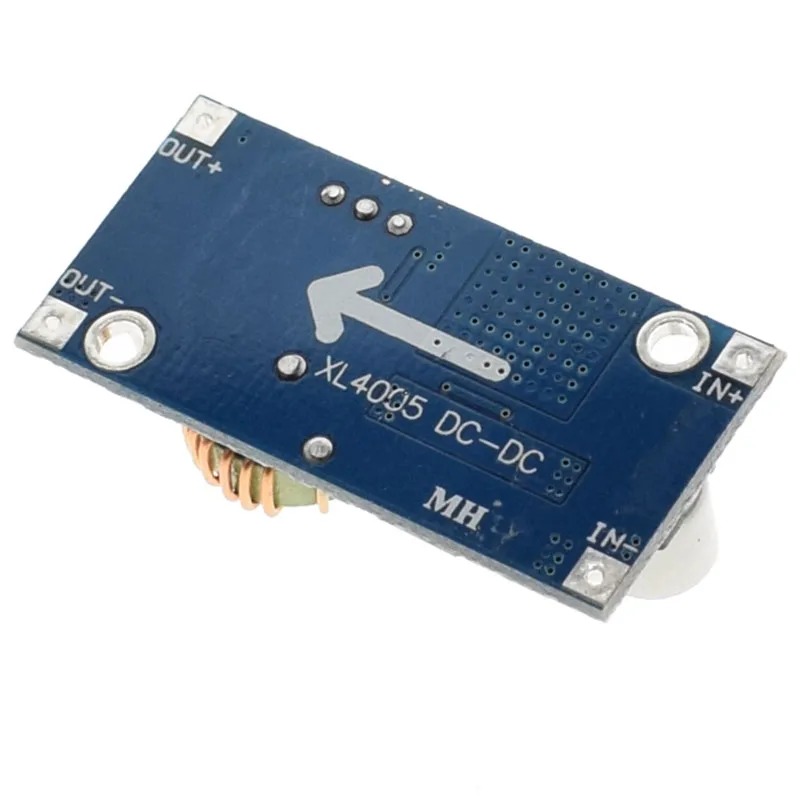

A high-efficiency DC-DC step-down (buck) converter module based on the XL4015 chip, designed to provide stable and adjustable output voltage up to 5A. Equipped with a heat sink for improved thermal performance, making it ideal for power supply applications, DIY electronics, and battery-powered systems.
Features:
- Adjustable output voltage with onboard potentiometer
- High current output up to 5A (recommended ≤4A for continuous use)
- Built-in heat sink for better heat dissipation
- High efficiency up to 96%
- Overcurrent and thermal protection
- LED indicator for power status
Specifications:
- Model: XL4015 DC-DC Buck Converter
- Input Voltage: 5V – 36V DC
- Output Voltage: 1.25V – 32V DC (adjustable)
- Output Current: 5A max (4A recommended)
- Conversion Efficiency: Up to 96%
- Switching Frequency: 180 kHz
- Operating Temperature: -40°C to +85°C
- Cooling: Aluminum heat sink
- Applications: Power supply modules, battery chargers, LED drivers, DIY electronics
هذا الوصف والمواصفات تمت كتابته بمساعدة الذكاء الاصطناعي، يُرجى مراجعته قبل الشراء.
برجاء تأكيد الطلب على
الواتساب
للتأكد من توفر المخزون قبل الدفع
Specification
General
| WeightWeight | 0,0000 g |
|---|---|
| Module Type | DC-DC Step-Down (Buck) Converter |
| Main Chip | XL4015 |
| Input Voltage | 8V ~ 36V DC |
| Output Voltage | 1.25V ~ 32V DC (Continuously Adjustable) |
| Output Current | Up to 5A (Heatsink required for continuous draw > 3A) |
| Output Power | 75W (Maximum) |
| Conversion Efficiency | Up to 96% |
| Switching Frequency | 180 KHz |
| Voltage Adjustment | On-board Multi-turn Potentiometer |
| On-Board Components | 2× 220uF 50V Filter Capacitors, High-Power Toroidal Inductor |
| Protection Features | Short Circuit Protection, Thermal Shutdown, Built-in Current Limiting (Note: No reverse polarity protection) |
| Included Hardware | 1× XL4015 Module, 1× Aluminum Heatsink |
| Applications | Embedded Systems Power, Custom Arduino/ESP32 Projects, High-Power LED Driving, DIY Variable Power Supplies |
