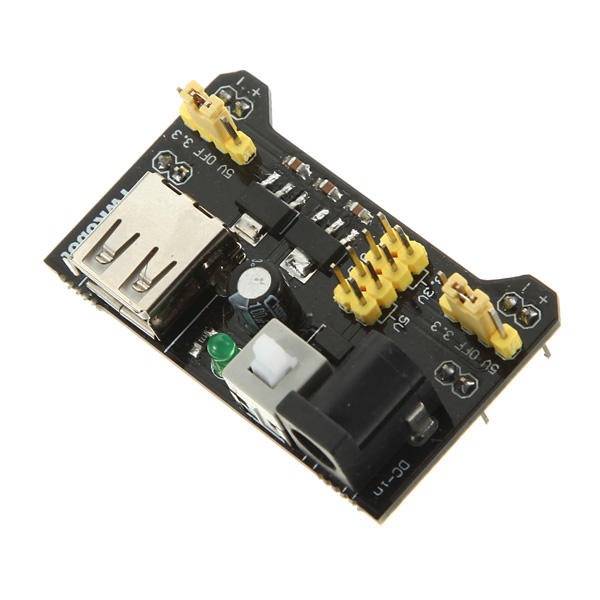

3.3V/5V MB102 Breadboard Power Supply Module

Breadboard power supply module, compatible with 5V, 3.3V.
Apply to MB102 breadboard
Input voltage: 6.5-12 V (DC) or USB power supply
Output voltage: 3.3V/5V can switch over
Maximum output current: <700 ma
Fluctuation two road independent control can switch over to 0 V, 3.3 V, 5 V
On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.

EGP45.00

In stock

SKU: AA076 Categories: ,
Estimated delivery dates: 03-12-2024 - 05-12-2024

The MB102 Breadboard Power Supply Module is a convenient and reliable power supply solution designed to power your breadboard projects with either 3.3V or 5V. It is commonly used in electronics prototyping, making it easy to provide stable voltage for Arduino, sensors, LEDs, and other components directly on a breadboard without the need for external power sources. With switchable voltage options, it offers flexibility for different types of projects.

Key Features:

  • Dual Voltage Options: The module offers two selectable voltage levels, 3.3V and 5V, making it versatile for powering a wide range of components and microcontrollers.
  • Easy Breadboard Integration: Designed to fit perfectly onto a standard 400-point breadboard, allowing easy distribution of power to various components.
  • Onboard Switch: Includes a switch to easily toggle between 3.3V and 5V output, providing flexibility for different applications.
  • Compact Size: Small and lightweight, it doesn’t take up much space on the breadboard and is easy to integrate into prototyping setups.
  • Stable Output: Provides a reliable and stable output voltage with good filtering to ensure clean power for sensitive electronics.
  • LED Indicators: Equipped with LED indicators to show which voltage is currently being output (green for 5V, red for 3.3V).
  • Overcurrent Protection: Built-in protection against overcurrent to ensure the safety of both the power supply module and the powered components.

Specifications:

  • Input Voltage: 6.5V to 12V (through a DC jack or 5.5mm barrel connector).
  • Output Voltage: Selectable between 3.3V or 5V.
  • Output Current: Typically up to 700mA for the 5V output and 500mA for the 3.3V output.
  • Efficiency: High efficiency for stable voltage regulation, minimizing power loss.
  • Size: Approximately 2.1 x 1.1 x 0.7 inches (53.4mm x 28mm x 18mm), compact for easy breadboard integration.
  • Input Connector: DC barrel jack or terminal block for easy connection to a power source.
  • LED Indicators: Green for 5V output, Red for 3.3V output.

Applications:

  • Arduino Projects: Ideal for powering Arduino boards, sensors, and peripherals that require 5V or 3.3V power.
  • Prototyping: Perfect for powering breadboard-based circuits in DIY electronics, robotics, or educational projects.
  • Testing and Debugging: Provides reliable power for testing and debugging circuits directly on the breadboard.
  • Embedded Systems: Useful for small embedded systems where a stable and adjustable power supply is needed.
  • IoT Devices: Can be used to power small IoT devices, sensors, and communication modules during development.

Benefits:

  • Convenient Power Supply: No need for external power adapters or separate voltage regulators, simplifying your breadboard setup.
  • Dual Voltage Support: Supports a wide range of components that require either 3.3V or 5V.
  • Compact and Easy to Use: Designed for breadboard use, making it easy to integrate into your projects without additional wiring.
  • Cost-Effective: An affordable way to provide reliable power for breadboard-based prototyping and development.
  • Protection Features: Built-in overcurrent protection ensures safe operation for both the module and the components.

The MB102 Breadboard Power Supply Module is an essential tool for electronics enthusiasts, hobbyists, and engineers. It simplifies the power distribution for breadboard projects, ensuring you have reliable, stable voltage options in a compact and easy-to-use package.

0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “3.3V/5V MB102 Breadboard Power Supply Module”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Get a discount when you buy more

Specification

Dimensions 53 × 32 × 23 mm
Maximum Output Current(mA)

<700
