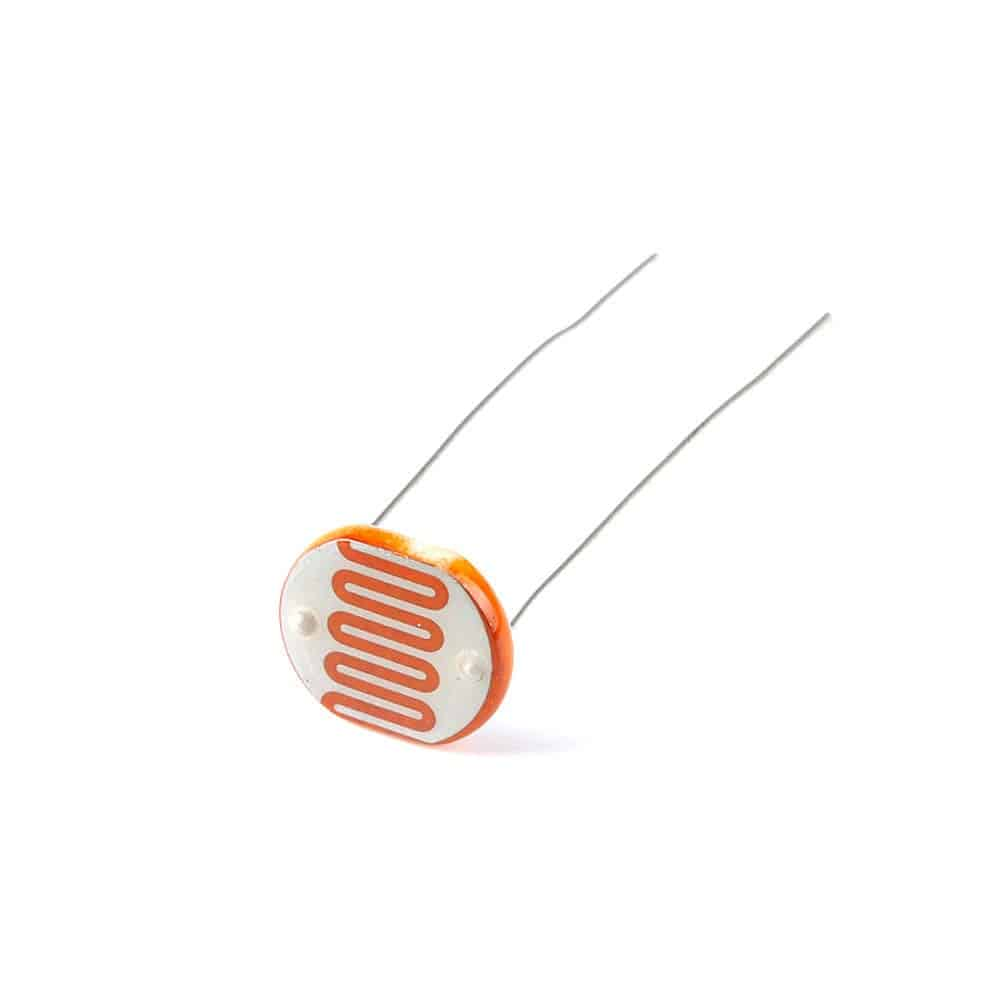

12mm 12528 LDR,10-20K

12,00 EGP

In stock

  1. Diameter: 12 mm
  2. No. of pins: 2
  3. Type of mounting: PCB Through Hole
  4. Maximum Operating Temperature: +70˚C (Approx.)
  5. Dark resistance: 1-20MΩ
  6. Spectral peak: 560nm
  7. Maximum voltage: 250 VDC
  8. Maximum wattage: 200 mW
  9. Light resistance (10 Lux): 10-20 KΩ
  10. Dark resistance: 2 MΩ
  11. Resistance illumination: 3
  12. Response time: 20ms (Rise), 30ms (Down)

In stock

Estimated delivery dates: March 17, 2025 – March 20, 2025

Shipping & Delivery

  • Local pickup

Receipt from the place on the same day or shipping to nearby places

On the same day

6PM - 10 PM

  • Shipping company

Delivery through a fast shipping company intermediary

1-3 Days



Specification

Overview

Weight 3,0000 g

Processor

Diameter (mm)

12

No. of Pins

2

Dark resistance

max. 20MΩ

Spectral Peak

560 nm

Light Resistance (10 lux)

10 – 20 kΩ

Maximum Voltage(V)

250 VDC

Maximum Power (W)

0.2

Operating Temperature (°C)

-30˚C to 70˚C

Resistance Illumination

3

Response Time ( μS)

20(Rise), 30 (Down)

Description

<p>The resistance of 12mm GL12528 Light Sensitive Photoresistor LDR changes with the change in the ambient light exposed on the surface of the sensor. As the light on the sensor increases then the resistance across the two leads decreases. Light Dependent Resistor is a type of photocell which finds excellent use in light sensing device application, whether it is automatic outdoor light ON/OFF switch or indoor automatic light switch; moreover, the 12mm LDR or photoresistor sensor works best in both light and dark regions. The photo-resistors are a staple of electronics. If you need a way to sense the level of ambient light then there is no easier way to do it without an LDR/photo-resistor.</p> <p>Two Cadmium Sulphide PhotoConductive Cells with spectral responses similar to that of the human eye. Cell resistance falls with increasing light intensity. Applications of this product include smoke detection, automatic lighting control, batch counting, and burglar alarm systems. Furthermore, some of the applications are given below.</p> <p><strong> Analog Applications:</strong></p> <div> <ol> <li>Camera exposure control</li> <li>Auto slide focus – dual cell</li> <li>Photocopy machines – the density of the toner</li> <li>Colorimetric test Equipment</li> <li>Densitometer</li> <li>Electronics scales – dual cell</li> <li>Automatic gain control – modulated light source</li> <li>Automated rearview mirror</li> </ol> <p><strong>Digital Applications:</strong></p> </div> <div> <ol> <li>Automatic headlight dimmer</li> <li>Nightlight control</li> <li>Oil burner flame out</li> <li>Streetlight control</li> <li>Absence/presence (beam breaker)</li> <li>Position sensor</li> </ol> <p><strong>Other applications:</strong></p> <ol> <li>Annunciator</li> <li>Camera automatic photometry</li> <li>Electronic toy</li> <li>Industrial control</li> <li>Light control</li> <li>Light control lamp</li> <li>Photoelectric control</li> <li>Switch</li> </ol> </div> <div><hr /></div> <h4><strong>Features:</strong></h4> <ol> <li>Spectral peak: 560nm</li> <li>Maximum voltage: 250 VDC</li> <li>Maximum wattage: 200 mW</li> <li>Operating temperature: -30˚C ~ +70˚C</li> <li>Light resistance (10 Lux): 10-20 KΩ</li> <li>Dark resistance: 2 MΩ</li> <li>Resistance illumination: 3</li> <li>Response time: 20ms (Rise), 30ms (Down)</li> </ol> <hr /> <h4><strong>Package Includes :</strong></h4> <div>1x 12mm GL12528 Light Sensitive Photoresistor LDR ().</div>
