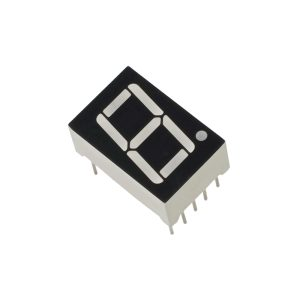

1 Digit 7 Segment LED Display 10pin Common Anode
7,00 EGP
In stock
- Single digit numeric display
- Common anode configuration
- 10-pin package for straightforward connections
- Bright LED segments for clear visibility
- Ideal for clocks, counters, and digital readouts
- Compatible with standard 7-segment driver circuits and microcontrollers
In stock
Shipping & Delivery
Receipt from the place on the same day or shipping to nearby places
On the same day
6PM - 10 PM
Delivery through a fast shipping company intermediary
1-3 Days
Description
1 Digit 7-Segment LED Display – 10-pin Common Anode
A 1-digit 7-segment LED display is used to visually represent numbers and some letters. This model features a common anode configuration with 10 pins, which makes it suitable for various digital display projects with microcontrollers and other electronics.
⚙️ Key Features
-
Single digit 7-segment display plus decimal point
-
Common anode configuration: all anodes of the LED segments are connected together
-
10-pin package for segment and decimal point control
-
Bright, clear LED segments
-
Easy to interface with Arduino, Raspberry Pi, and other microcontrollers
-
Low power consumption and long lifespan
-
Compact size ideal for various electronics projects
📋 Specifications
| Parameter | Description |
|---|---|
| Display Type | 7-Segment LED Display |
| Digit Count | 1 |
| Pin Count | 10 |
| Configuration | Common Anode |
| Segment Color | Usually Red (varies by model) |
| Operating Voltage | Typically 1.8V to 2.2V per segment |
| Forward Current | 10-20 mA per segment |
| Operating Temperature | -40°C to +85°C |
| Package Type | Through-hole, 10-pin |
Pin Configuration (Typical for 10-pin Common Anode)
| Pin Number | Connection |
|---|---|
| 1 | Segment E |
| 2 | Segment D |
| 3 | Common Anode |
| 4 | Segment C |
| 5 | Decimal Point (DP) |
| 6 | Segment B |
| 7 | Segment A |
| 8 | Segment F |
| 9 | Segment G |
| 10 | Common Anode |
Note: Pinout may vary; always check the datasheet for the exact model.
Basic Operation
-
In common anode displays, all segment anodes are connected together and tied to a positive voltage (e.g., +5V).
-
To light a segment, pull its corresponding cathode pin LOW (logic 0).
-
By activating different segment pins, you can display digits 0-9 and some alphabets.
Applications
-
Digital clocks, counters, and timers
-
Scoreboards and meters
-
Embedded system numeric displays
-
DIY electronics and educational projects
Package Includes
-
1 × 1 Digit 7-Segment LED Display, 10-pin Common Anode
Customer Reviews
Specification
Overview
| Weight Weight | 0,0000 g |
|---|
Specification
| display-type |
7-Segment LED Display |
|---|---|
| configuration |
Common Anode |
| digit-size |
0.56 inch |
| color |
Red |
| pins |
10-Pin |
| application |
Clocks, Meters, Calculators, Electronics |
