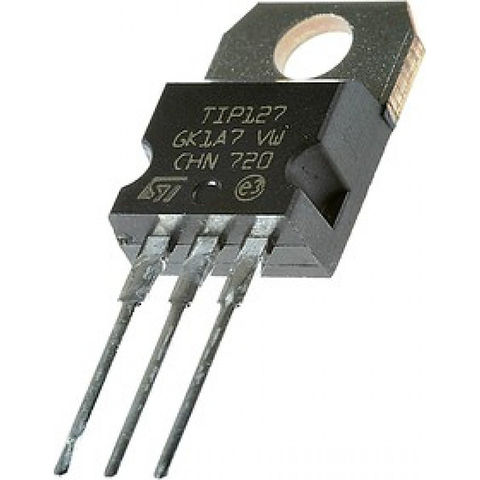

TIP127 Darlington PNP Transistor
- 🔌 TIP127 PNP Darlington power transistor
- 💪 High current gain—easy control with low base current
- ⚡ Ideal for switching motors, relays, solenoids, and lamps
- 🧩 Great for high-side switching with Arduino/MCUs
- 🛠️ TO-220 package—easy mounting and heatsinking
- 🔥 Use a heatsink for high current/continuous loads
- 🔁 Darlington design for strong amplification
- ✅ Reliable choice for power driver circuits
15,00 EGP
17
People watching this product now!
Payment Methods:
Description
TIP127 is a PNP type Darlington pair Transistor. It has a high gain value of 1000 and a collector current of 5A.
Package Includes:
1 x TIP127 Darlington PNP Transistor.
Specification
General
| WeightWeight | 0,00 g |
|---|---|
| Product Type | Darlington Power Transistor |
| Model | TIP127 |
| Polarity | PNP |
| Application | Medium Power Switching / Amplification |
| Mounting Type | Through-Hole |
| Package | TO-220 |
| Pin Count | 3 |
| Pin Configuration | B-C-E (front view, typical) |
| Collector-Emitter Voltage (VCEO) | 100 V |
| Collector Current (IC) | 5 A |
| Power Dissipation (PD) | 65 W (with proper heatsink) |
| DC Current Gain (hFE) | 1000 (typical) |
| VCE(sat) | 2.0 V (typical @ IC=3 A) |
| Base-Emitter Voltage (VBE(on)) | 2.5 V (typical @ IC=3 A) |
| Transition Frequency (fT) | 3 MHz (typical) |
| Operating Junction Temperature (TJ) | -65°C to +150°C |
| Applications | High-side switching, motor/relay driving, power control |
