Ra-01 LoRa SX1278 433M 10KM Wireless Module
Product Highlights
- Ultra-Long Range: Reliable data transmission up to 10KM (Line of Sight).
- SX1278 Technology: Advanced LoRa™ modulation for superior interference immunity.
- Battery Optimized: Sleep current lower than 1µA for multi-year sensor operation.
- Industrial Grade: High sensitivity (-148dBm) and wide temperature tolerance.
- Compact & Integrated: Small SMD footprint with an included spring antenna.
500,00 EGP
Only 1 left in stock
Only 1 left in stock
12
People watching this product now!
Payment Methods:
Description

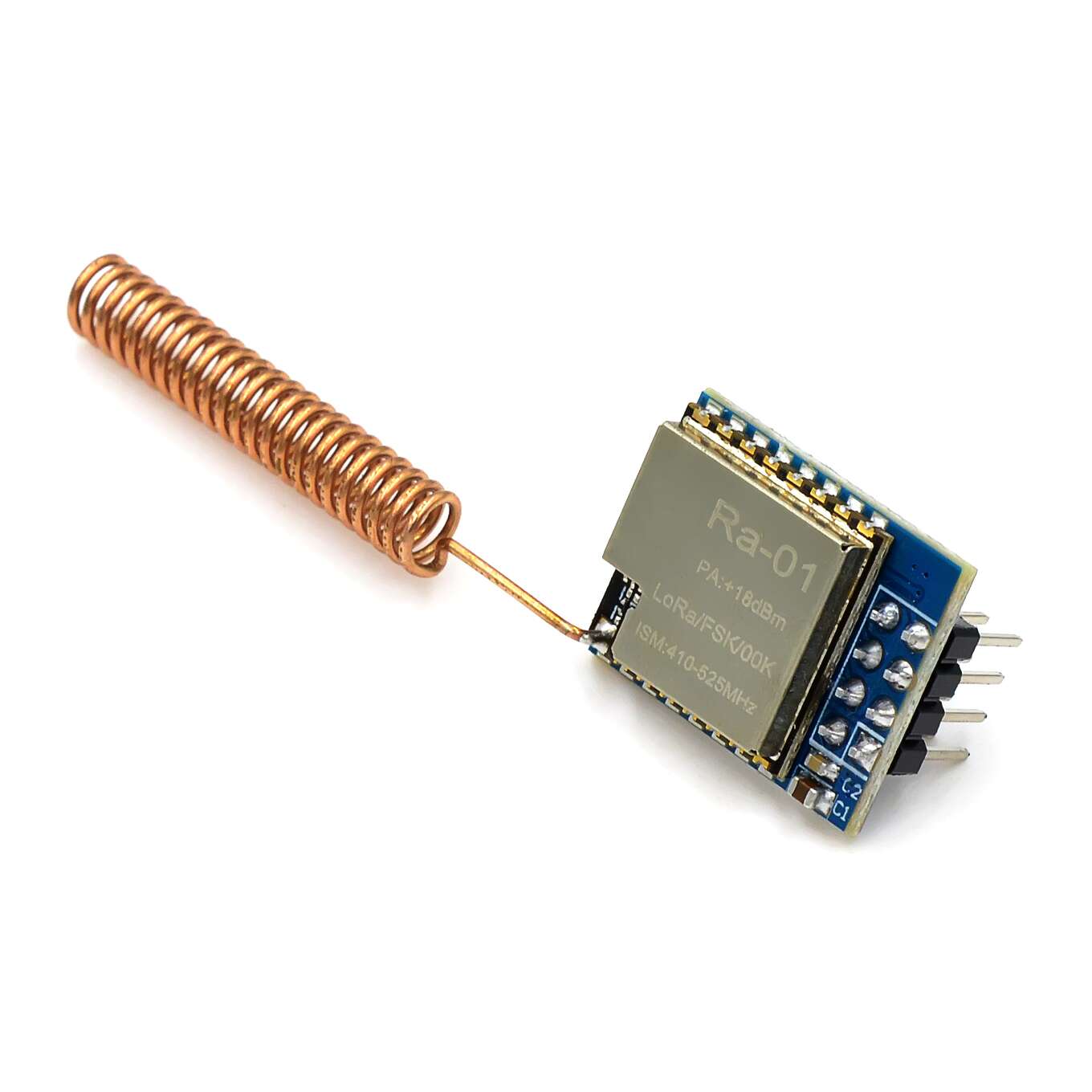

Ra-01 LoRa SX1278 433MHz Wireless Module (10KM Range)
The Ra-01 is a high-performance long-range wireless transceiver module developed by
Ai-Thinker, based on the Semtech SX1278 chip. Using LoRa™ spread
spectrum technology, it overcomes the limitations of traditional RF communication, offering
extraordinary interference immunity and ultra-long-distance data transmission (up to 10KM).
It is the ultimate solution for IoT projects, remote sensing, and smart agriculture.
Key Features
- Extreme Long Range: Capable of transmitting data up to 10KM in open-field (Line of Sight) conditions.
- LoRa™ Modulation: Provides superior anti-interference performance compared to standard FSK/GFSK.
- Ultra-Low Power Consumption: Features a sleep mode current of less than 1µA, perfect for battery-powered sensors.
- High Sensitivity: Industry-leading sensitivity down to -148 dBm.
- Compact Form Factor: Small SMD package (17 x 16 mm) with an integrated spring antenna for easy integration.
Full Technical Specifications
| Attribute | Details |
|---|---|
| Main Chipset | Semtech SX1278 |
| Operating Frequency | 433 MHz (420MHz – 450MHz range) |
| Communication Interface | SPI (Half-Duplex) |
| Operating Voltage | 1.8V to 3.7V DC (3.3V Recommended) |
| Max Transmit Power | +20 dBm (100mW) |
| Dynamic Range | 127dB RSSI |
| Packet Engine | Up to 256 bytes with CRC |
| Operating Temperature | -40°C to +85°C (Industrial Grade) |
Common Applications
- Smart Agriculture: Monitoring soil moisture or weather stations across large farms.
- Industrial Control: Long-distance wireless monitoring of machinery and equipment.
- Smart City: Automated meter reading (AMR) and environmental monitoring.
- Remote Robotics: Reliable control links for drones or outdoor ground vehicles.
⚠️ Critical Engineering Notes:
- Logic Level: This module uses 3.3V logic. Connecting it directly to a 5V Arduino board without a level shifter will damage the chip.
- Antenna Safety: Never power the module without the antenna connected. Operating without a load can cause permanent damage to the transmitter.
- Power Supply: Ensure your 3.3V supply can handle the peak current (approx. 120mA) during transmission.
Specification
General
| WeightWeight | 0,0000 g |
|---|---|
| Product Name | Ra-01 LoRa SX1278 Wireless Module |
| Type | LoRa Wireless Communication Module |
| Chipset | SX1278 |
| Frequency | 433 MHz |
| Communication Range | Up to 10 km (Line of Sight) |
| Operating Voltage | 3.3V DC |
| Interface | SPI |
| Transmission Power | 20 dBm (Max) |
| Sensitivity | -137 dBm |
| Modulation | LoRa / FSK |
| Features | Long Range, Low Power, Reliable Wireless Communication |
| Application | IoT Projects, Remote Sensing, Smart Agriculture, Wireless Data Transmission |
