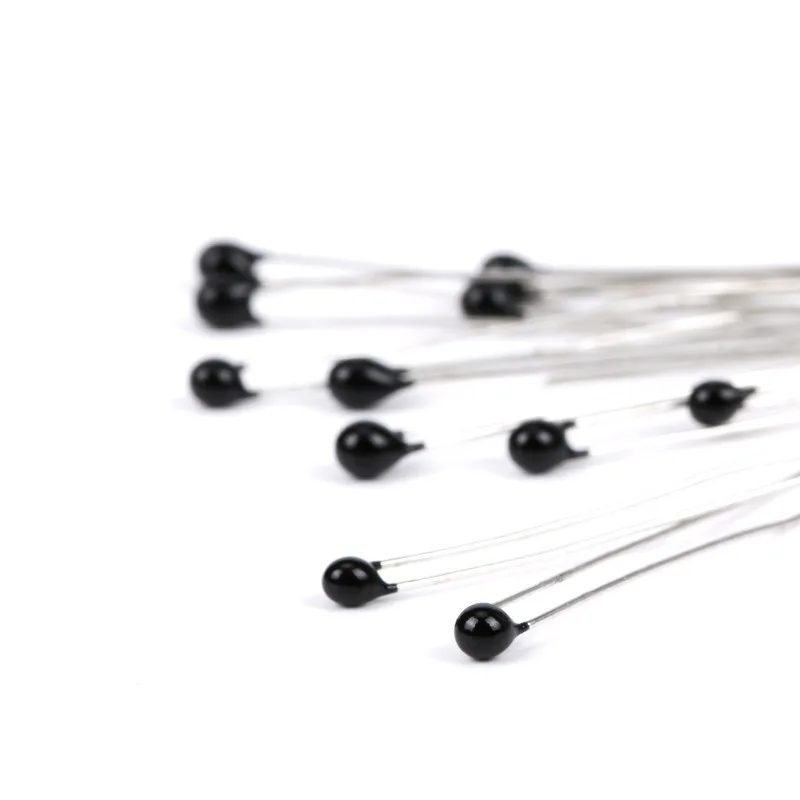

NTC Thermistor 10K ±5% 3950K P=1.7mm (MF52A103J3950

Accurate temperature sensing
Stable and reliable performance
Fast thermal response
Compact size for easy integration
Wide operating temperature range
Suitable for control and monitoring circuits
Ideal for Arduino and industrial applications

SKU: EK1972 Category: Sensors Tags: Arduino Temperature Sensor, DIY Electronics, MF52A103J3950, Precision Thermistor., Sensors, Temperature Sensor, Thermal Sensing, Thermistor, مقاوم حراري NTC 10K، حساس حرارة MF52A103J3950، مستشعر درجة الحرارة، مقاومة متغيرة بالحرارة، مشاريع أردوينو، إلكترونيات قياس الحرارة، NTC Thermistor 10K

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

4,00 EGP

Compare

6 People watching this product now!

Payment Methods:

Description

The NTC Thermistor 10K (MF52A103J3950) is a highly reliable temperature-sensitive resistor designed for accurate temperature measurement and control. With a negative temperature coefficient (NTC), its resistance decreases as temperature increases, making it ideal for sensing and compensation applications. Commonly used in Arduino projects, home appliances, and industrial systems, this thermistor offers stable performance and fast response.

Specifications

Type: NTC Thermistor
Resistance: 10KΩ at 25°C
Tolerance: ±5%
B-Value: 3950K
Model: MF52A103J3950
Lead Spacing (P): 1.7 mm
Operating Temperature Range: -40°C to +125°C (typical)
Material: Epoxy-coated thermistor bead
Response Time: Fast thermal response
Mounting: Through-hole

Features

High accuracy temperature sensing
Stable and reliable performance
Fast response to temperature changes
Compact size for easy integration
Wide operating temperature range
Suitable for temperature measurement and control circuits
Ideal for Arduino, HVAC systems, and бытовые (household) appliances

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
NTC Thermistor	Leg 1/Leg 2	one leg to 3.3-5V, other leg to board analog pin AND a fixed 10k resistor to GND

📟

NTC Thermistor 10K ±5% 3950K P=1.7mm (MF52A103J3950

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

NTC Thermistor 10K ±5% 3950K P=1.7mm (MF52A103J3950 - Arduino Uno

NTC Thermistor 10K ±5% 3950K P=1.7mm (MF52A103J3950 - Arduino Nano

NTC Thermistor 10K ±5% 3950K P=1.7mm (MF52A103J3950 - Arduino Mega

NTC Thermistor 10K ±5% 3950K P=1.7mm (MF52A103J3950 - ESP32

NTC Thermistor 10K ±5% 3950K P=1.7mm (MF52A103J3950 - ESP8266

NTC Thermistor 10K ±5% 3950K P=1.7mm (MF52A103J3950 - STM32

NTC Thermistor 10K ±5% 3950K P=1.7mm (MF52A103J3950 - Raspberry Pi Pico

📄 File: ntc_thermistor_10k_±5%_3950k_p=1.7mm_(mf52a103j3950_-_arduino_uno.inoArduino Uno

820 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0 on Arduino Uno

6#define THERMISTOR_PIN A0

7const float ADC_MAX = 1023.0;

8const float SERIES_RESISTOR = 10000.0;

9const float NOMINAL_RESISTANCE = 10000.0;

10const float NOMINAL_TEMP = 25.0;

11const float B_COEFFICIENT = 3950.0;

13void setup() {

14 Serial.begin(115200);

15}

17void loop() {

18 int raw = analogRead(THERMISTOR_PIN);

19 float resistance = SERIES_RESISTOR * (ADC_MAX / raw - 1.0); // NTC on the low side of the divider (pin to GND)

21 float steinhart = resistance / NOMINAL_RESISTANCE;

22 steinhart = log(steinhart);

23 steinhart /= B_COEFFICIENT;

24 steinhart += 1.0 / (NOMINAL_TEMP + 273.15);

25 steinhart = 1.0 / steinhart;

26 steinhart -= 273.15;

28 Serial.print("Temperature: "); Serial.print(steinhart); Serial.println(" C");

29 delay(500);

30}

📄 File: ntc_thermistor_10k_±5%_3950k_p=1.7mm_(mf52a103j3950_-_arduino_nano.inoArduino Nano

821 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0 on Arduino Nano

6#define THERMISTOR_PIN A0

7const float ADC_MAX = 1023.0;

8const float SERIES_RESISTOR = 10000.0;

9const float NOMINAL_RESISTANCE = 10000.0;

10const float NOMINAL_TEMP = 25.0;

11const float B_COEFFICIENT = 3950.0;

13void setup() {

14 Serial.begin(115200);

15}

17void loop() {

18 int raw = analogRead(THERMISTOR_PIN);

19 float resistance = SERIES_RESISTOR * (ADC_MAX / raw - 1.0); // NTC on the low side of the divider (pin to GND)

21 float steinhart = resistance / NOMINAL_RESISTANCE;

22 steinhart = log(steinhart);

23 steinhart /= B_COEFFICIENT;

24 steinhart += 1.0 / (NOMINAL_TEMP + 273.15);

25 steinhart = 1.0 / steinhart;

26 steinhart -= 273.15;

28 Serial.print("Temperature: "); Serial.print(steinhart); Serial.println(" C");

29 delay(500);

30}

📄 File: ntc_thermistor_10k_±5%_3950k_p=1.7mm_(mf52a103j3950_-_arduino_mega.inoArduino Mega

821 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0 on Arduino Mega

6#define THERMISTOR_PIN A0

7const float ADC_MAX = 1023.0;

8const float SERIES_RESISTOR = 10000.0;

9const float NOMINAL_RESISTANCE = 10000.0;

10const float NOMINAL_TEMP = 25.0;

11const float B_COEFFICIENT = 3950.0;

13void setup() {

14 Serial.begin(115200);

15}

17void loop() {

18 int raw = analogRead(THERMISTOR_PIN);

19 float resistance = SERIES_RESISTOR * (ADC_MAX / raw - 1.0); // NTC on the low side of the divider (pin to GND)

21 float steinhart = resistance / NOMINAL_RESISTANCE;

22 steinhart = log(steinhart);

23 steinhart /= B_COEFFICIENT;

24 steinhart += 1.0 / (NOMINAL_TEMP + 273.15);

25 steinhart = 1.0 / steinhart;

26 steinhart -= 273.15;

28 Serial.print("Temperature: "); Serial.print(steinhart); Serial.println(" C");

29 delay(500);

30}

📄 File: ntc_thermistor_10k_±5%_3950k_p=1.7mm_(mf52a103j3950_-_esp32.inoESP32

814 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin 34 on ESP32

6#define THERMISTOR_PIN 34

7const float ADC_MAX = 4095.0;

8const float SERIES_RESISTOR = 10000.0;

9const float NOMINAL_RESISTANCE = 10000.0;

10const float NOMINAL_TEMP = 25.0;

11const float B_COEFFICIENT = 3950.0;

13void setup() {

14 Serial.begin(115200);

15}

17void loop() {

18 int raw = analogRead(THERMISTOR_PIN);

19 float resistance = SERIES_RESISTOR * (ADC_MAX / raw - 1.0); // NTC on the low side of the divider (pin to GND)

21 float steinhart = resistance / NOMINAL_RESISTANCE;

22 steinhart = log(steinhart);

23 steinhart /= B_COEFFICIENT;

24 steinhart += 1.0 / (NOMINAL_TEMP + 273.15);

25 steinhart = 1.0 / steinhart;

26 steinhart -= 273.15;

28 Serial.print("Temperature: "); Serial.print(steinhart); Serial.println(" C");

29 delay(500);

30}

📄 File: ntc_thermistor_10k_±5%_3950k_p=1.7mm_(mf52a103j3950_-_esp8266.inoESP8266

816 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0 on ESP8266

6#define THERMISTOR_PIN A0

7const float ADC_MAX = 1023.0;

8const float SERIES_RESISTOR = 10000.0;

9const float NOMINAL_RESISTANCE = 10000.0;

10const float NOMINAL_TEMP = 25.0;

11const float B_COEFFICIENT = 3950.0;

13void setup() {

14 Serial.begin(115200);

15}

17void loop() {

18 int raw = analogRead(THERMISTOR_PIN);

19 float resistance = SERIES_RESISTOR * (ADC_MAX / raw - 1.0); // NTC on the low side of the divider (pin to GND)

21 float steinhart = resistance / NOMINAL_RESISTANCE;

22 steinhart = log(steinhart);

23 steinhart /= B_COEFFICIENT;

24 steinhart += 1.0 / (NOMINAL_TEMP + 273.15);

25 steinhart = 1.0 / steinhart;

26 steinhart -= 273.15;

28 Serial.print("Temperature: "); Serial.print(steinhart); Serial.println(" C");

29 delay(500);

30}

📄 File: ntc_thermistor_10k_±5%_3950k_p=1.7mm_(mf52a103j3950_-_stm32.inoSTM32

816 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin PA0 on STM32

6#define THERMISTOR_PIN PA0

7const float ADC_MAX = 4095.0;

8const float SERIES_RESISTOR = 10000.0;

9const float NOMINAL_RESISTANCE = 10000.0;

10const float NOMINAL_TEMP = 25.0;

11const float B_COEFFICIENT = 3950.0;

13void setup() {

14 Serial.begin(115200);

15}

17void loop() {

18 int raw = analogRead(THERMISTOR_PIN);

19 float resistance = SERIES_RESISTOR * (ADC_MAX / raw - 1.0); // NTC on the low side of the divider (pin to GND)

21 float steinhart = resistance / NOMINAL_RESISTANCE;

22 steinhart = log(steinhart);

23 steinhart /= B_COEFFICIENT;

24 steinhart += 1.0 / (NOMINAL_TEMP + 273.15);

25 steinhart = 1.0 / steinhart;

26 steinhart -= 273.15;

28 Serial.print("Temperature: "); Serial.print(steinhart); Serial.println(" C");

29 delay(500);

30}

📄 File: ntc_thermistor_10k_±5%_3950k_p=1.7mm_(mf52a103j3950_-_raspberry_pi_pico.inoRaspberry Pi Pico

826 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin 26 on Raspberry Pi Pico

6#define THERMISTOR_PIN 26

7const float ADC_MAX = 4095.0;

8const float SERIES_RESISTOR = 10000.0;

9const float NOMINAL_RESISTANCE = 10000.0;

10const float NOMINAL_TEMP = 25.0;

11const float B_COEFFICIENT = 3950.0;

13void setup() {

14 Serial.begin(115200);

15}

17void loop() {

18 int raw = analogRead(THERMISTOR_PIN);

19 float resistance = SERIES_RESISTOR * (ADC_MAX / raw - 1.0); // NTC on the low side of the divider (pin to GND)

21 float steinhart = resistance / NOMINAL_RESISTANCE;

22 steinhart = log(steinhart);

23 steinhart /= B_COEFFICIENT;

24 steinhart += 1.0 / (NOMINAL_TEMP + 273.15);

25 steinhart = 1.0 / steinhart;

26 steinhart -= 273.15;

28 Serial.print("Temperature: "); Serial.print(steinhart); Serial.println(" C");

29 delay(500);

30}

Project Notes:

Bare NTC thermistor - wire into a voltage divider with a fixed resistor, then convert via the Steinhart-Hart equation.

Specification

WeightWeight	10 g
Dimensions	5 × 4 × 2 cm
Component Type	NTC (Negative Temperature Coefficient) Thermistor
Nominal Resistance	10KΩ at 25°C
B-Value	3950K (Sensitivity constant)
Tolerance	±5%
Operating Range	-40°C to +125°C
Lead Spacing	1.7 mm
Construction	Epoxy-coated bead
