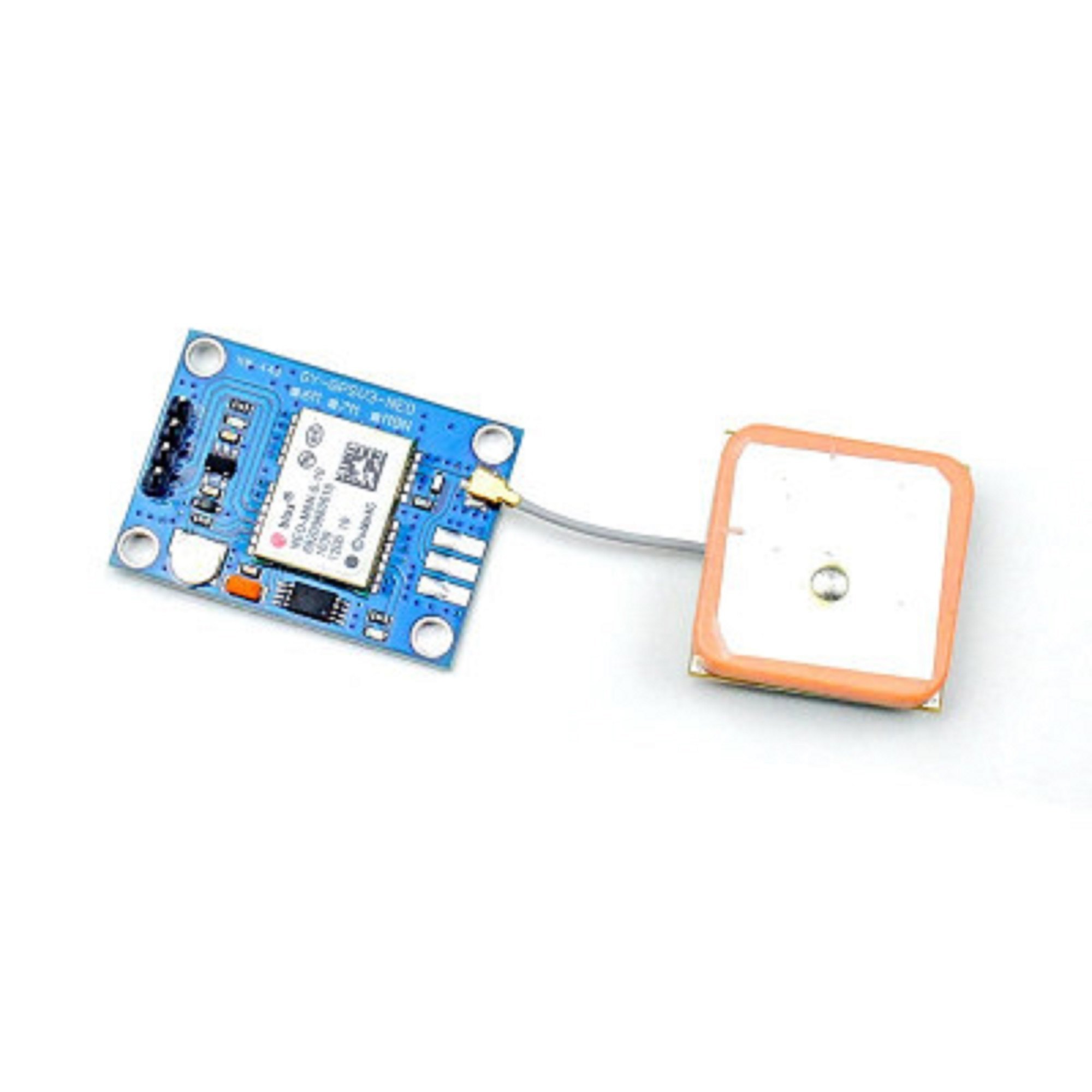

NEO-M8N GPS Module with Ceramic Active Antenna

The APM2.5 NEO-M8N GPS Module GYGPSV1-8M is optimized for cost-sensitive applications, while NEO-M8N/M8Q provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The futureproof NEO-M8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.

The NEO-M8 series of concurrent GNSS modules are built on the high performing M8 GNSS engine in the industry proven NEO form factor.NEO-M8N provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The future-proof NEOM8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.

Note: It is a manual measurement, there may be 2-3 mm error. And item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.

Features :

1. The ceramic antenna provides a very strong signal
2. With LED indicator lamp
3. The default baud rate: 9600.
4. With data backup battery.
5. LED signal indicator.
6. Compatible with various flight controller module.
7. EEPROM save the configuration parameter data when power-down.
8. Assistance AssistNow GNSS Online
9. AssistNow GNSS Offline (up to 35 days)
10. AssistNow Autonomous (up to 6 days)
11. OMA SUPL & 3GPP compliant
12. Oscillator TCXO
13. Built-in RTC crystal
14. Anti-jamming Active CW detection and removal.
15. Extra onboard SAW bandpass filter
16. Memory Flash
17. Supported antennas Active and passive
18. Odometer Travelled distance
19. Data-logger For position, velocity, and time

Find detailed features and specifications in datasheet at Attachment.

Package Includes :

1 x APM 2.5 NEO M8N GPS Module.

1 x Ceramic Active Antenna.
