Product Description

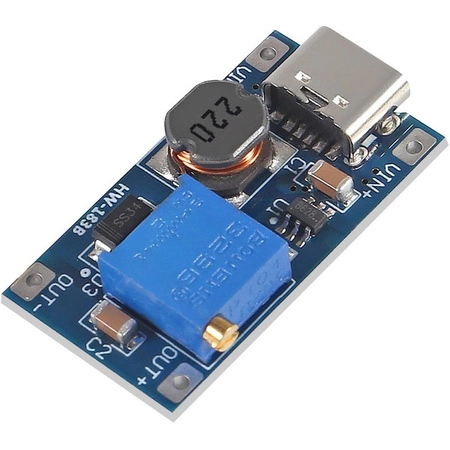

The MT3608 DC-DC Boost Converter Module is a compact, high-efficiency step-up (boost) converter designed to increase input voltages from as low as 2V up to 28V (adjustable via a potentiometer). It is based on the MT3608 IC and supports up to 2A output current, making it ideal for DIY electronics, battery-powered projects, and power supply applications. This version includes a convenient Type-C USB input, making it compatible with modern USB power sources.

Specifications

• Input Voltage: 2V to 24V DC (via Type-C or VIN pin)

• Output Voltage: 3V to 28V DC (adjustable)

• Output Current: Up to 2A (depending on input/output voltage and cooling)

• Efficiency: Up to 93%

• Conversion Type: Step-Up (Boost)

• Switching Frequency: 1.2MHz

• Dimensions: Approx. 36mm × 17mm × 14mm

• Type-C Input Port: Yes (for convenient USB power)

• Adjustment: Multi-turn potentiometer for precise voltage setting

• Protection: No built-in short circuit or overcurrent protection (external protection recommended)

Key Features

• Wide input voltage range from 2V to 24V

• Output voltage adjustable from 3V to 28V

• High efficiency up to 93%

• Small and compact module size

• Type-C USB input for modern power sources

• Up to 2A current output (with heat dissipation)

• Easy to integrate into DIY and embedded systems

• LED indicator (optional, varies by version)

Package Includes

• 1 × MT3608 DC-DC Boost Converter Module with Type-C USB
