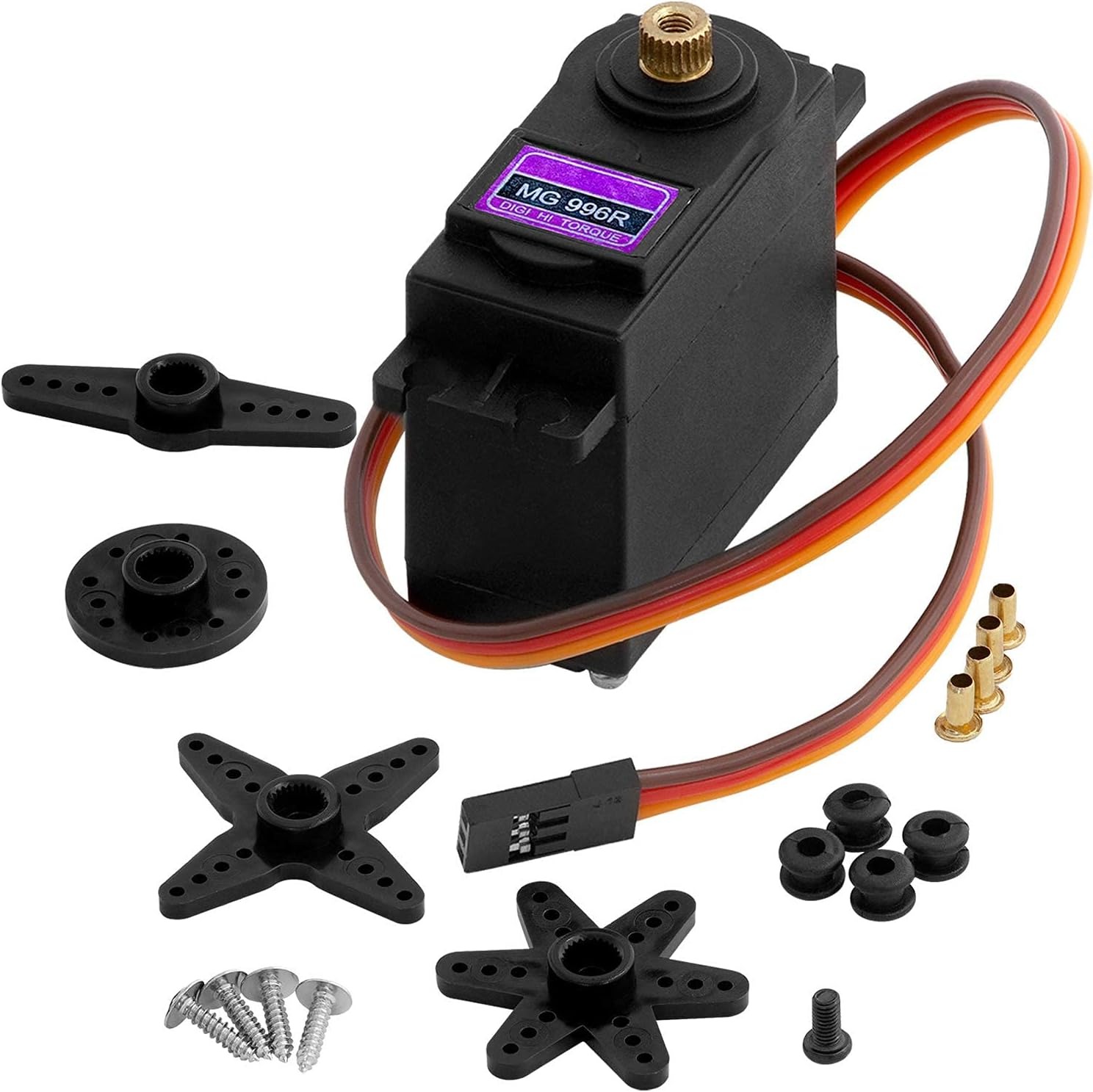

MG996R Digital High Torque Servo Motor
- Weight: 55g
- Dimension: 40.7×19.7×42.9mm
- Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6.0v)
- Operating speed: 0.19sec/60degree (4.8v); 0.15sec/60degree (6.0v)
- Operating voltage: 4.8 ~ 6.6V
- Gear Type: Half-Metal gear
- Dead band width: 1us
- Wire length: 32cm
225,00 EGP
Additional information
TowerPro Servo Motors are optimum-quality and affordable cost servos.! They are suitable for a wide range of applications, including RC aircraft, automobiles, and robotics, Or just to have some fun with whatever crazy project you’re working on.
When you purchase TowerPro motors in India, they are almost usually NOT ORIGINAL, and these are no exception… These are NOT ORIGINAL Tower Pro Servos, either. However, they are dead cheap and Serve the purpose. We put them to the test and found them to be of good quality for the price.
Wire Description
- Red – Positive
- Brown – Negative
- Orange – Signal
Features:
- Gear Type: Metal gear
- Servo Plug: JR (Fits JR and Futaba)
- Servo arms & screws included, and fit with Futaba servo arm
- It’s a universal “S” type connector that fits most receivers, including Futaba, JR, Hitec , GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, and Spektrum.
- CE & RoHS approved
- We have upgraded our servo gear set and shaft to aluminum 6061-T6. It is stronger and lighter than copper.
Package Includes:
1 x TowerPro MG996R Digital High Torque Servo Motor and Accessories Parts(as shown in the image)
Additional information
| Weight | 55,0000 g |
|---|---|
| Operating Voltage (VDC) |
4.8 ~ 6.6 |
| Temperature Range |
0- 55℃ |
| Stall Torque @ 4.8V (Kg-Cm) |
9.40 |
| Stall Torque @6.6V (Kg-Cm) |
11 |
| Operating Speed @4.8V |
0.19sec/60° |
| Operating Speed @6.6V |
0.15sec/60° |
| Dead Bandwidth |
1uS |
| Gear Type |
Half Metal |
| No. of teeth |
25 |
| Angle |
0~180° |
| Weight | 55,0000 g |
|---|---|
| Operating Voltage (VDC) |
4.8 ~ 6.6 |
| Temperature Range |
0- 55℃ |
| Stall Torque @ 4.8V (Kg-Cm) |
9.40 |
| Stall Torque @6.6V (Kg-Cm) |
11 |
| Operating Speed @4.8V |
0.19sec/60° |
| Operating Speed @6.6V |
0.15sec/60° |
| Dead Bandwidth |
1uS |
| Gear Type |
Half Metal |
| No. of teeth |
25 |
| Angle |
0~180° |
