Load Cell Sensor 5Kg
115,00 EGP
In stock
In stock
Shipping & Delivery
Receipt from the place on the same day or shipping to nearby places
On the same day
6PM - 10 PM
Delivery through a fast shipping company intermediary
1-3 Days
Specification
Overview
Weight | 0,0000 g |
---|
Description

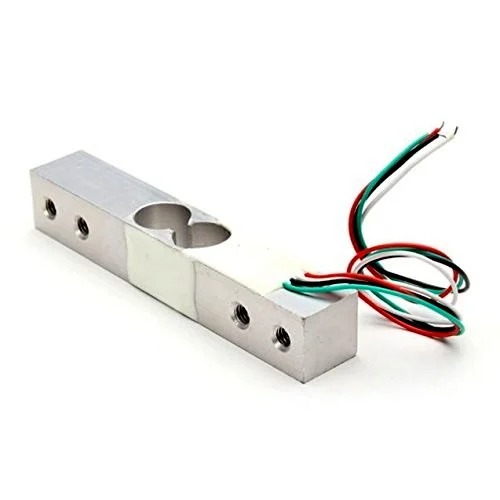

<p>This straight bar load cell (sometimes called a strain gauge) <strong>can translate up to 10 kg of pressure</strong> (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar.</p> <p>With this gauge, you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.<strong> This straight bar load cell is made from an aluminum alloy and is capable of reading a capacity of 1KG of weight</strong></p> <p>It has Four lead wires which can be connected to HX711 A/D Pressure Sensor. It is easy to use with <strong>driving voltage 5-10V</strong> and produces the output voltage as per the force changes over it.</p> <p>Installation of the Sensor is also a simple task, it needs to fix one end through the screw hole and the other end left floating state, according to the label indicates <strong>the direction of the gravitational force exerted particular attention must not directly push the white plastic cover part of the sensor in order to avoid damage</strong>.</p> <p>An electronic weighing machine uses a load cell to measure the load or pressure produced by the load, here most load cells follow the method of the strain gauge, Which<strong> converts the pressure (force) into an electrical signal, these load cells have four strain gauges</strong> that are hooked up in a Wheatstone bridge formation.</p> <p>When we apply to load the strain gauge resistance will change and hence the output voltage from the load cell get changes by the way we can measure the load value.</p> <p> </p> <hr /> <h5><strong>Wheatstone bridge formation of Load Cell:</strong></h5> <p><img class=""wp-image-33544 aligncenter entered lazyloaded"" title=""Load Cell 10Kg, Yzc-133, Pressure Sensor 510Ihq5Hshl. Sl1038"" src=""https://robu.in/wp-content/uploads/2017/04/510IHq5HSHL._SL1038_.jpg"" alt=""510Ihq5Hshl._Sl1038_"" width=""613"" height=""432"" data-lazy-srcset=""https://robu.in/wp-content/uploads/2017/04/510IHq5HSHL._SL1038_.jpg 1038w, https://robu.in/wp-content/uploads/2017/04/510IHq5HSHL._SL1038_-300×211.jpg 300w, https://robu.in/wp-content/uploads/2017/04/510IHq5HSHL._SL1038_-768×541.jpg 768w, https://robu.in/wp-content/uploads/2017/04/510IHq5HSHL._SL1038_-1024×721.jpg 1024w"" data-lazy-sizes=""(max-width: 613px) 100vw, 613px"" data-lazy-src=""https://robu.in/wp-content/uploads/2017/04/510IHq5HSHL._SL1038_.jpg"" data-ll-status=""loaded"" /></p> <hr /> <h5><strong>HX711 (24 bit Analog to Digital Converter</strong><strong>)</strong></h5> <p><strong>HX 711</strong> is a precision <strong>24-bit analog to digital converter (ADC)</strong> specially designed for weighing scales and industrial control applications to interface directly with a bridge sensor.</p> <p><img class=""wp-image-33545 aligncenter entered lazyloaded"" title=""Load Cell 10Kg, Yzc-133, Pressure Sensor"" src=""https://robu.in/wp-content/uploads/2017/04/hx711.jpeg"" alt=""Hx711"" width=""368"" height=""209"" data-lazy-srcset=""https://robu.in/wp-content/uploads/2017/04/hx711.jpeg 400w, https://robu.in/wp-content/uploads/2017/04/hx711-300×170.jpeg 300w"" data-lazy-sizes=""(max-width: 368px) 100vw, 368px"" data-lazy-src=""https://robu.in/wp-content/uploads/2017/04/hx711.jpeg"" data-ll-status=""loaded"" /></p> <p>Simply connect Load cell wires to the<strong> HX711</strong> module based on their color, then <strong>connect DAT (Data) pin to Arduino Analog pin A1 and connect CLK (Clock) pin to Arduin0 Analog pin A0, Put Vcc and GND supply from Arduino power source pin</strong>s.</p> <p><img class=""wp-image-33546 aligncenter entered lazyloaded"" title=""Load Cell 10Kg, Yzc-133, Pressure Sensor Weight Tutorial Content1"" src=""https://robu.in/wp-content/uploads/2017/04/weight_tutorial_content1.png"" alt=""Weight_Tutorial_Content1"" width=""752"" height=""423"" data-lazy-srcset=""https://robu.in/wp-content/uploads/2017/04/weight_tutorial_content1.png 615w, https://robu.in/wp-content/uploads/2017/04/weight_tutorial_content1-300×169.png 300w"" data-lazy-sizes=""(max-width: 752px) 100vw, 752px"" data-lazy-src=""https://robu.in/wp-content/uploads/2017/04/weight_tutorial_content1.png"" data-ll-status=""loaded"" /></p> <hr /> <h4><strong>Package Includes :</strong></h4> <div>1 x YZC-133 Weighing Load Cell Sensor 10kg For Electronic Weighing Scale</div>
