FTDI FT232RL USB to TTL Converter Module
155,00 EGP
Only 1 left in stock
Based on reliable FTDI FT232RL chipset
Converts USB to 3.3V or 5V TTL serial signals
Selectable VCC output (3.3V / 5V) via jumper or solder pads
Standard 6-pin interface: DTR, RX, TX, VCC, CTS, GND
Supports auto-reset for Arduino boards (via DTR)
High-speed data rate up to 3 Mbps
Compatible with Windows, macOS, and Linux
Integrated USB Type-A / Mini / Micro USB (varies by version)
Compact and easy-to-use design
Only 1 left in stock
Shipping & Delivery
Receipt from the place on the same day or shipping to nearby places
On the same day
6PM - 10 PM
Delivery through a fast shipping company intermediary
1-3 Days
Description

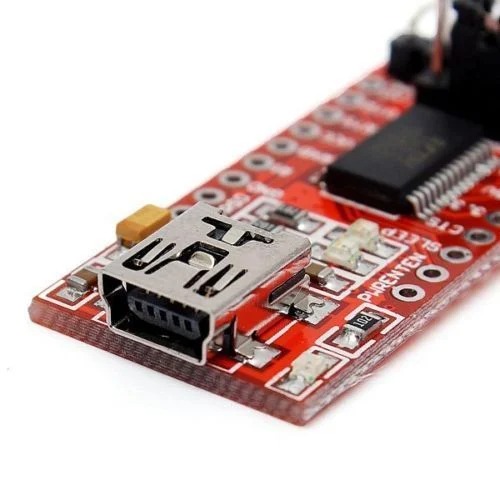

FTDI FT232RL USB to TTL Converter Module
The FTDI FT232RL USB to TTL Converter Module is a premium USB-to-Serial adapter designed for reliable communication between your computer and microcontrollers or embedded devices. Based on the FT232RL chip by FTDI (Future Technology Devices International), this module is widely supported across platforms and operating systems, offering stable performance and excellent compatibility.
It’s a favorite tool among developers for flashing, debugging, or establishing serial communication with boards such as Arduino Pro Mini, ESP8266, STM32, and more.
Key Features
Based on FTDI FT232RL chipset – highly reliable and compatible
Converts USB to 3.3V or 5V TTL-level serial signals
Selectable VCC output (3.3V / 5V) via jumper or solder pads
Standard 6-pin interface: DTR, RX, TX, VCC, CTS, GND
Fully compatible with Windows, Linux, and macOS
Integrated USB Type-A or Mini/Micro USB (varies by version)
Supports auto-reset for Arduino boards (via DTR)
Specifications
Parameter | Value |
---|---|
Chipset | FTDI FT232RL |
Input Voltage | 5V via USB |
Output Voltage | Selectable 3.3V or 5V TTL |
Interface Pins | DTR, RXD, TXD, VCC, CTS, GND |
Baud Rate | Up to 3 Mbps |
USB Interface | Type-A / Mini USB / Micro USB |
Dimensions | ~45mm × 17mm (varies by model) |
OS Support | Windows, macOS, Linux |
Applications
Programming Arduino Pro Mini, ESP8266, or similar boards
Debugging embedded systems
USB to serial communication bridge
Interfacing TTL serial modules: GSM, GPS, Bluetooth, etc.
Uploading firmware to IoT devices and sensors
Package Includes
1 × FTDI FT232RL USB to TTL Converter Module
⚠️ Tip: Be sure to match the correct voltage level (3.3V or 5V) before connecting to your target device.
