ESP32 D1 Mini – Dual Core WiFi Bluetooth Module
- Dual-core ESP32 @ 240MHz
- Built-in WiFi (802.11 b/g/n) + Bluetooth 4.2
- Compact D1 Mini form factor
- 4MB Flash memory
- Supports Arduino IDE and MicroPython
350,00 EGP
Only 1 left in stock
Only 1 left in stock
Payment Methods:
Description

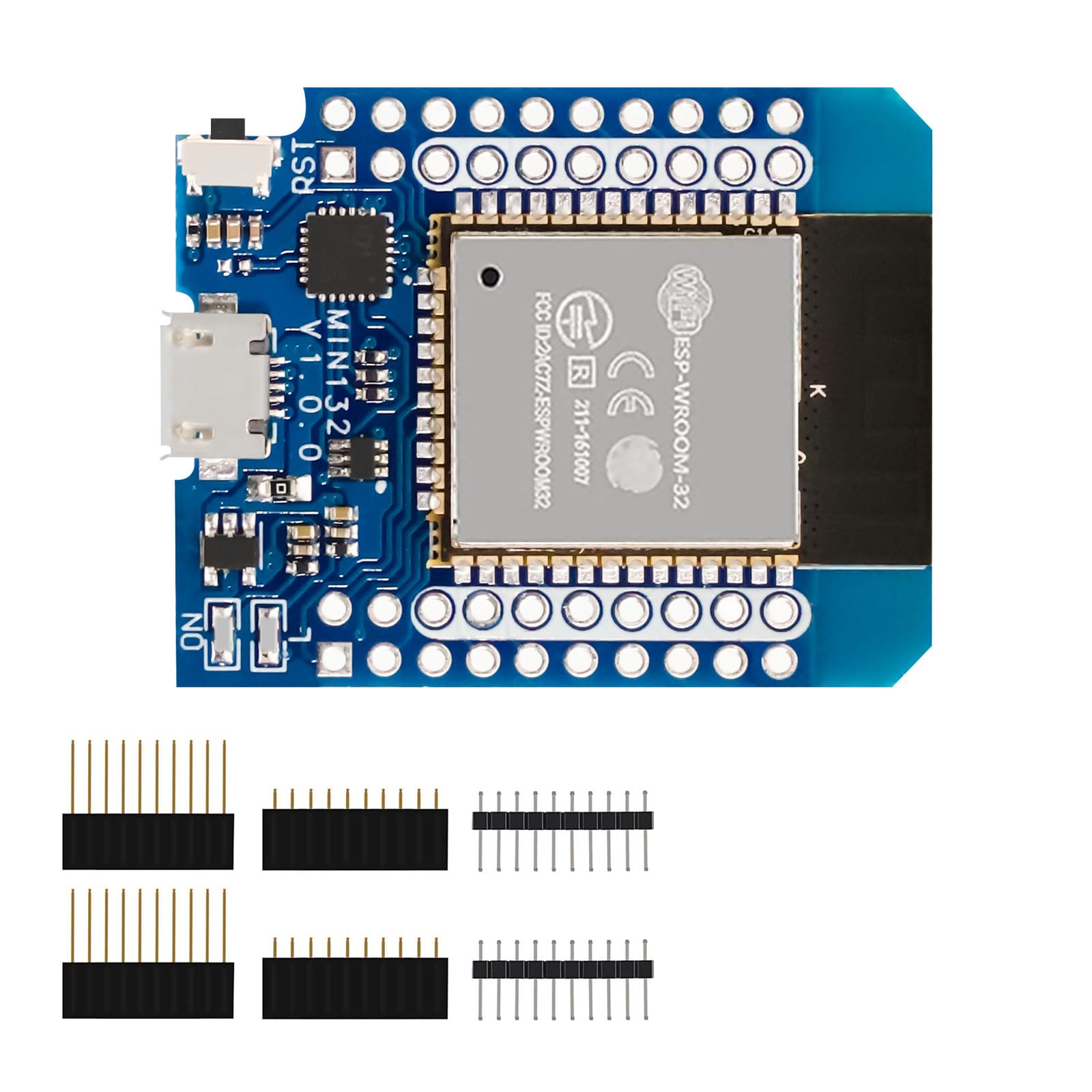

The ESP32 D1 Mini is a compact and powerful development board based on the ESP32 microcontroller, ideal for IoT, smart home, and embedded projects. It features dual-core processing, integrated WiFi and Bluetooth, and is pin-compatible with the classic NodeMCU D1 Mini, making it a perfect upgrade for more demanding applications.
✅ Key Features:
-
Dual-core 32-bit LX6 processor
-
Built-in WiFi 802.11 b/g/n
-
Bluetooth v4.2 (BR/EDR + BLE)
-
Compact D1 Mini form factor
-
Multiple I/O pins and peripherals
-
USB-to-Serial for easy programming
-
Compatible with Arduino IDE, MicroPython, and ESP-IDF
Specifications:
| Feature | Details |
|---|---|
| MCU | ESP32 (dual-core Tensilica LX6) |
| Clock Speed | Up to 240 MHz |
| Flash Memory | 4MB (typical) |
| SRAM | 520KB |
| WiFi | 802.11 b/g/n |
| Bluetooth | v4.2 BR/EDR + BLE |
| Operating Voltage | 3.3V |
| I/O Pins | GPIO, ADC, DAC, PWM, SPI, I2C, UART |
| USB Interface | Micro USB (with CH340 or CP2102) |
| Form Factor | D1 Mini compatible |
| Dimensions | Approx. 34mm x 25mm |
Specification
General
| Weight Weight | 0,00 g |
|---|---|
| Product Name |
ESP32 D1 Mini – Dual Core WiFi Bluetooth Module |
| Type |
Microcontroller Development Board |
| Processor |
Dual-core 32-bit Xtensa LX6 |
| Operating Voltage |
3.3V |
| Connectivity |
WiFi 802.11 b/g/n, Bluetooth 4.2 BLE |
| Flash Memory |
4MB (typical) |
| GPIO |
11 digital I/O pins |
| Features |
Compact design, low power, supports Arduino IDE programming |
| Applications |
IoT projects, smart devices, robotics, home automation |
