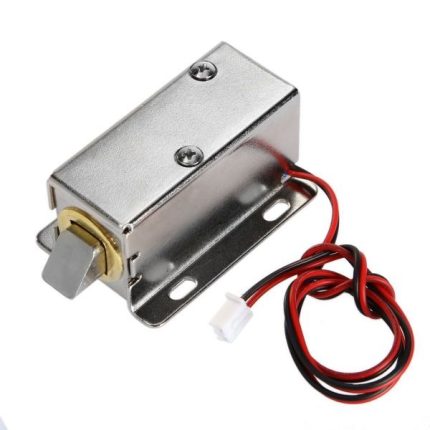

Electromagnet Solenoid Lock 5mm 12VDC 350mA

🔒 12VDC solenoid lock / electromagnet latch
⚡ Current draw: ~350mA (5mm stroke)
🔁 Push/pull action for locking and release mechanisms
🧩 Ideal for cabinets, access control, and DIY lock projects
🛠️ Easy to control using relay or MOSFET driver
💪 Strong holding force for compact size
📦 Compact design—fits inside small enclosures
✅ Great for Arduino/ESP32 smart lock applications

SKU: aA1643 Categories: Mounting Motors, Solenoids and Electromagnets Tags: Mounting Motors, Solenoids and Electromagnets

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

220,00 EGP

Compare

2 People watching this product now!

Payment Methods:

Description

This 12V Electromagnetic Solenoid Lock is a compact and secure locking mechanism ideal for DIY access control systems, smart lockers, vending machines, and other automation projects. When powered, the solenoid pulls the bolt in, unlocking the latch; when power is cut, a spring pushes it back to lock.

It features a 5mm stroke and operates reliably at 12V DC, drawing only 350mA, making it efficient for battery-powered or microcontroller-controlled systems.

Key Features

Electromagnetic solenoid lock with spring-loaded bolt
12V DC operating voltage, low power consumption (350mA)
5mm linear stroke for smooth locking/unlocking
Durable metal housing for long-lasting operation
Easy integration with Arduino, ESP32, Raspberry Pi, relays, etc.
Ideal for cabinets, lockers, access control, and vending mechanisms

Specifications

Parameter	Value
Operating Voltage	12V DC
Current Consumption	~350mA
Stroke Length	5mm
Operation Type	Pull-type (spring return)
Material	Metal body and plunger
Mounting	Pre-drilled mounting holes
Cable Length	~15–20cm
Applications	Smart locks, cabinets, drawers, automation

How It Works

Powered (ON): Lock bolt retracts
Unpowered (OFF): Spring pushes bolt back into locked position

Package Includes

1 × 12V DC Solenoid Lock (5mm stroke)

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
Solenoid	to switching transistor/relay	coil leads into a flyback-diode-protected switch, gated by a board digital pin

📟

Electromagnet Solenoid Lock 5mm 12VDC 350mA

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

Electromagnet Solenoid Lock 5mm 12VDC 350mA - Arduino Uno

Electromagnet Solenoid Lock 5mm 12VDC 350mA - Arduino Nano

Electromagnet Solenoid Lock 5mm 12VDC 350mA - Arduino Mega

Electromagnet Solenoid Lock 5mm 12VDC 350mA - ESP32

Electromagnet Solenoid Lock 5mm 12VDC 350mA - ESP8266

Electromagnet Solenoid Lock 5mm 12VDC 350mA - STM32

Electromagnet Solenoid Lock 5mm 12VDC 350mA - Raspberry Pi Pico

📄 File: electromagnet_solenoid_lock_5mm_12vdc_350ma_-_arduino_uno.inoArduino Uno

530 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Electromagnet Solenoid Lock 5mm 12VDC 350mA draws too much current for a GPIO pin directly - switch it through a flyback-diode-protected transistor or relay, gated by pin 7 on Arduino Uno.

6#define SOLENOID_PIN 7

8void setup() {

9 Serial.begin(115200);

10 pinMode(SOLENOID_PIN, OUTPUT);

11 digitalWrite(SOLENOID_PIN, LOW);

12}

14void loop() {

15 digitalWrite(SOLENOID_PIN, HIGH); // energize

16 delay(1000);

17 digitalWrite(SOLENOID_PIN, LOW); // release

18 delay(3000);

19}

📄 File: electromagnet_solenoid_lock_5mm_12vdc_350ma_-_arduino_nano.inoArduino Nano

531 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Electromagnet Solenoid Lock 5mm 12VDC 350mA draws too much current for a GPIO pin directly - switch it through a flyback-diode-protected transistor or relay, gated by pin 7 on Arduino Nano.

6#define SOLENOID_PIN 7

8void setup() {

9 Serial.begin(115200);

10 pinMode(SOLENOID_PIN, OUTPUT);

11 digitalWrite(SOLENOID_PIN, LOW);

12}

14void loop() {

15 digitalWrite(SOLENOID_PIN, HIGH); // energize

16 delay(1000);

17 digitalWrite(SOLENOID_PIN, LOW); // release

18 delay(3000);

19}

📄 File: electromagnet_solenoid_lock_5mm_12vdc_350ma_-_arduino_mega.inoArduino Mega

531 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Electromagnet Solenoid Lock 5mm 12VDC 350mA draws too much current for a GPIO pin directly - switch it through a flyback-diode-protected transistor or relay, gated by pin 7 on Arduino Mega.

6#define SOLENOID_PIN 7

8void setup() {

9 Serial.begin(115200);

10 pinMode(SOLENOID_PIN, OUTPUT);

11 digitalWrite(SOLENOID_PIN, LOW);

12}

14void loop() {

15 digitalWrite(SOLENOID_PIN, HIGH); // energize

16 delay(1000);

17 digitalWrite(SOLENOID_PIN, LOW); // release

18 delay(3000);

19}

📄 File: electromagnet_solenoid_lock_5mm_12vdc_350ma_-_esp32.inoESP32

526 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Electromagnet Solenoid Lock 5mm 12VDC 350mA draws too much current for a GPIO pin directly - switch it through a flyback-diode-protected transistor or relay, gated by pin 13 on ESP32.

6#define SOLENOID_PIN 13

8void setup() {

9 Serial.begin(115200);

10 pinMode(SOLENOID_PIN, OUTPUT);

11 digitalWrite(SOLENOID_PIN, LOW);

12}

14void loop() {

15 digitalWrite(SOLENOID_PIN, HIGH); // energize

16 delay(1000);

17 digitalWrite(SOLENOID_PIN, LOW); // release

18 delay(3000);

19}

📄 File: electromagnet_solenoid_lock_5mm_12vdc_350ma_-_esp8266.inoESP8266

528 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Electromagnet Solenoid Lock 5mm 12VDC 350mA draws too much current for a GPIO pin directly - switch it through a flyback-diode-protected transistor or relay, gated by pin D3 on ESP8266.

6#define SOLENOID_PIN D3

8void setup() {

9 Serial.begin(115200);

10 pinMode(SOLENOID_PIN, OUTPUT);

11 digitalWrite(SOLENOID_PIN, LOW);

12}

14void loop() {

15 digitalWrite(SOLENOID_PIN, HIGH); // energize

16 delay(1000);

17 digitalWrite(SOLENOID_PIN, LOW); // release

18 delay(3000);

19}

📄 File: electromagnet_solenoid_lock_5mm_12vdc_350ma_-_stm32.inoSTM32

528 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Electromagnet Solenoid Lock 5mm 12VDC 350mA draws too much current for a GPIO pin directly - switch it through a flyback-diode-protected transistor or relay, gated by pin PB2 on STM32.

6#define SOLENOID_PIN PB2

8void setup() {

9 Serial.begin(115200);

10 pinMode(SOLENOID_PIN, OUTPUT);

11 digitalWrite(SOLENOID_PIN, LOW);

12}

14void loop() {

15 digitalWrite(SOLENOID_PIN, HIGH); // energize

16 delay(1000);

17 digitalWrite(SOLENOID_PIN, LOW); // release

18 delay(3000);

19}

📄 File: electromagnet_solenoid_lock_5mm_12vdc_350ma_-_raspberry_pi_pico.inoRaspberry Pi Pico

538 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Electromagnet Solenoid Lock 5mm 12VDC 350mA draws too much current for a GPIO pin directly - switch it through a flyback-diode-protected transistor or relay, gated by pin 17 on Raspberry Pi Pico.

6#define SOLENOID_PIN 17

8void setup() {

9 Serial.begin(115200);

10 pinMode(SOLENOID_PIN, OUTPUT);

11 digitalWrite(SOLENOID_PIN, LOW);

12}

14void loop() {

15 digitalWrite(SOLENOID_PIN, HIGH); // energize

16 delay(1000);

17 digitalWrite(SOLENOID_PIN, LOW); // release

18 delay(3000);

19}

Project Notes:

Electromagnetic actuator - simple on/off (energize/release), switched through a transistor or relay, not PWM-speed-controlled like a motor.

Specification

WeightWeight	10 g
Dimensions	2,5 × 1,5 × 1 cm
Product Name	Electromagnet Solenoid Lock – 5mm, 12V DC, 350mA
Type	Electromagnetic Solenoid Lock
Model	5mm Stroke, 12V DC
Operating Voltage	12 V DC
Operating Current	350 mA
Force / Holding Strength	~5 N (typical)
Stroke / Plunger Travel	5 mm
Power Consumption	4.2 W (typical)
Material	Metal Body with Plastic Plunger
Mounting Type	Through-Hole / Screw Mount
Operating Temperature	-10°C to +50°C
Applications	Electronic Door Lock, Security Systems, Arduino / DIY Projects, Automated Cabinets
Package Contents	1× Electromagnet Solenoid Lock – 5mm, 12V DC, 350mA
