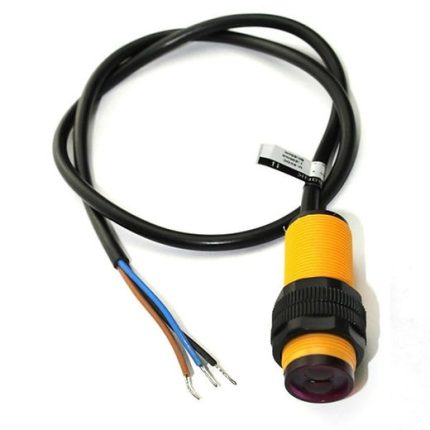

E18-D80NK Adjustable Infrared Sensor Switch 3-80cm
- Adjustable sensing range: 3 cm to 80 cm
- Digital NPN output (normally open)
- Operates at 5V DC with low current consumption
- Fast response time (<2 ms)
- Compact and easy to install
- Ideal for obstacle detection and automation applications
275,00 EGP
Payment Methods:
Description
The E18-D80NK Adjustable Infrared Sensor Switch 3-80cm is a set of transmitter and receiver in one of the photoelectric switch sensor. The detection distance can be adjusted according to the demand. The sensor has a detection range of 3-80cm.
The Adjustable Infrared Sensor Switch is small, easy to use, inexpensive, easy to assemble and can be widely used in a robot to avoid obstacles, interactive media, industrial assembly lines, and many other occasions.
The switching signal output differs in accordance with the obstacles. It remains high when no obstacles and remains low when there are obstacles. There is a bright light behind the probe to detect the scope of 3cm – 80cm.
Connection
Red wire: +5V
Green wire: GND
Yellow wire: Digital output
OR
Brown wire: +5V
Blue wire: GND
Black wire: Digital output.
Features :
- Diffuse reflective type.
- Digital output.
- Adjustable detection distance.
- Low consumption.
- Compact size.
Package Includes :
1 x E18-D80NK Adjustable Infrared Sensor Switch 3-80cm.
Specification
General
| WeightWeight | 0,0000 g |
|---|---|
 Dimensions | 3,6 × 1,4 × 1,8 cm |
| Product Name | E18-D80NK Adjustable Infrared Sensor Switch |
| Type | Infrared Proximity Sensor / Switch |
| Model | E18-D80NK |
| Detection Range | 3–80 cm (adjustable) |
| Operating Voltage | 3.3–5 V DC |
| Output Type | Digital (High/Low) |
| Output Current | ≤100 mA |
| Sensing Method | Infrared Reflection |
| Response Time | <2 ms (typical) |
| Mounting Type | Through-Hole / Bracket Mount |
| Material | Plastic Housing with PCB |
| Operating Temperature | -10°C to +70°C |
| Applications | Obstacle Detection, Object Sensing, Arduino / Microcontroller Projects, DIY Robotics, Automation |
| Package Contents | 1× E18-D80NK Adjustable Infrared Sensor Switch 3–80 cm |
