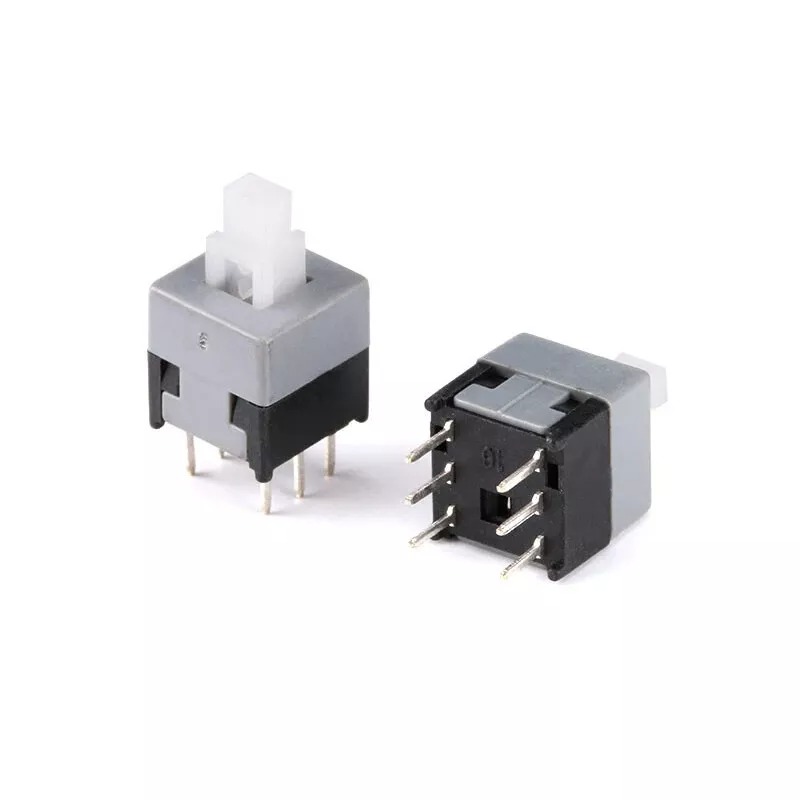

DPDT Push Button Self-Locking Switch 8.5×8.5mm, 6-Pin Double Row

Self-locking mechanism – press to lock, press again to release
DPDT switching – controls two circuits at once (ON-ON)
Compact 8.5mm × 8.5mm size – fits tight PCB layouts
6-pin double row layout – easy through-hole mounting
Tactile feedback – responsive and durable switching
Rated for low-voltage DC – ideal for 12V–24V control logic
Perfect for panels & DIY – great for toggling power or modes
2.54mm pin pitch – standard spacing for breadboards & PCBs

SKU: aA1703 Categories: Basic Electronic Components, Electronic Switches

5,00 EGP

14 People watching this product now!

Description

Compact DPDT push button self-locking switch with a durable 8.5×8.5mm design. Features a double-row, 6-pin configuration for stable connections. Ideal for electronics, appliances, and control panels.

Short Features

Double Pole Double Throw (DPDT) functionality
Self-locking mechanism for secure operation
8.5×8.5mm compact size
6-pin double-row design for reliable connections
Ideal for a wide range of electronic applications

Specification

Switch Type: Push Button, Self-Locking
Poles and Throws: DPDT (Double Pole, Double Throw)
Dimensions: 8.5mm × 8.5mm
Pins: 6 Pins, Double Row
Material: Durable plastic and metal construction
Voltage Rating: Up to 250V AC
Current Rating: 3A
Applications: Circuit control, electronic devices, home appliances

[acf_vc_integrator get_field_data_from="" field_group="25154" field_from_25154="field_694d5bea250d3" show_label="default" align="default" gallery_columns="" gm_show_placecard="default" gm_map_type_control="default" gm_fullscreen_control="default" gm_street_view_control="default" gm_zoom_control="default" gm_scale="default" hidden_field_name="ARDUINO CODE"]

هذا الوصف والمواصفات تمت كتابته بمساعدة الذكاء الاصطناعي، يُرجى مراجعته قبل الشراء.

برجاء تأكيد الطلب على الواتساب للتأكد من توفر المخزون قبل الدفع

Specification

General

WeightWeight	0,0000 g
Dimensions	1,5 × 1,5 × 1,2 cm
Type	DPDT (Double Pole Double Throw) Push Button Switch
Operation	Self-Locking / Latching
Number of Pins	6 Pins (Double Row)
Button Size	8.5×8.5 mm
Mounting Type	Through-Hole PCB Mount
Contact Material	Copper Alloy with Tin Plating
Operating Voltage	12–24 V DC (typical)
Operating Current	3 A (max)
Mechanical Life	≥ 50,000 cycles
Body Material	Plastic / Thermoplastic
Actuator Type	Push Button
Applications	Circuit Switching, Arduino Projects, Electronics Control, DIY Projects
Package Contents	1× DPDT Push Button Self-Locking Switch (6-Pin Double Row)
