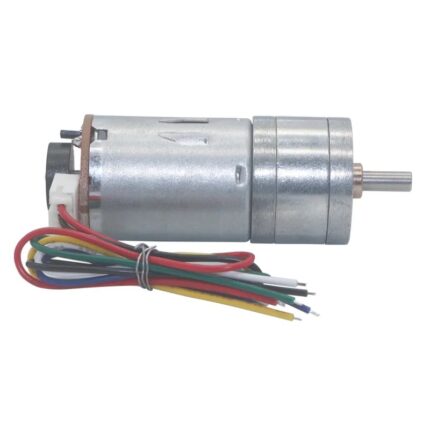

DC motor GA25-370 12V with Encoder 80 RPM

Name: DC motor GA25-370 12V with Encoder 80 RPM
SKU: Ek2065
Price: 500.00 EGP
Availability: InStock

DC Motor GA25-370 12V with Encoder 80 RPM
1. Voltage: 12V DC
2. Speed: 80 RPM (no-load)
3. Gearbox: GA25 (metal)
4. Encoder: Incremental quadrature
5. Motor: 370 size

SKU: Ek2065 Category: DC Motor Tags: 12V motor, 80 RPM, DC Motor, DC motor | محرك تيار مستمر، GA25-370، محرك 12 فولت، 80 دورة في الدقيقة، محرك مزود بمشفر، سرعة منخفضة، عزم مرتفع، مشفر رباعي, encoder motor, GA25-370, high torque, low speed, quadrature encoder

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

500,00 EGP

Compare

20 People watching this product now!

Payment Methods:

Description

The DC Motor GA25-370 12V with Encoder is a high-torque DC gearmotor featuring a GA25 gearbox and a 370-sized motor. It is designed to provide a no-load speed of 80 RPM at 12V, making it an excellent choice for applications that demand substantial low-end torque and precise control. The integrated quadrature encoder allows for real-time feedback on position and speed.

The encoder outputs two distinct channels (A and B) that are used to determine the direction of rotation and the motor’s velocity. This feedback is vital for implementing closed-loop control systems, enabling the motor to maintain a constant speed or reach a specific position accurately. The metal gear train in the GA25 gearbox ensures minimal backlash and high durability, suitable for heavy-duty robotic tasks and automated machinery.

Rated voltage: 12V DC
No-load speed: 80 RPM
GA25 gearbox with metal gears
High torque output
Integrated incremental quadrature encoder
370 motor frame size
Accurate speed and position control
Reliable performance for demanding applications

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
Motor	to H-bridge OUT	motor leads into an H-bridge driver's output terminals

📟

DC motor GA25-370 12V with Encoder 80 RPM

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

DC motor GA25-370 12V with Encoder 80 RPM - Arduino Uno

DC motor GA25-370 12V with Encoder 80 RPM - Arduino Nano

DC motor GA25-370 12V with Encoder 80 RPM - Arduino Mega

DC motor GA25-370 12V with Encoder 80 RPM - ESP32

DC motor GA25-370 12V with Encoder 80 RPM - ESP8266

DC motor GA25-370 12V with Encoder 80 RPM - STM32

DC motor GA25-370 12V with Encoder 80 RPM - Raspberry Pi Pico

📄 File: dc_motor_ga25-370_12v_with_encoder_80_rpm_-_arduino_uno.inoArduino Uno

811 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC motor GA25-370 12V with Encoder 80 RPM: drive via H-bridge (IN1=8, IN2=9, ENA=10) + read its built-in quadrature encoder (A=2, B=3) on Arduino Uno.

6#define IN1 8

7#define IN2 9

8#define ENA 10

9#define ENC_A 2

10#define ENC_B 3

12volatile long pulseCount = 0;

13void handleEncoder() {

14 pulseCount += (digitalRead(ENC_B) > 0) ? 1 : -1;

15}

17void setup() {

18 Serial.begin(115200);

19 pinMode(IN1, OUTPUT); pinMode(IN2, OUTPUT); pinMode(ENA, OUTPUT);

20 pinMode(ENC_A, INPUT_PULLUP); pinMode(ENC_B, INPUT_PULLUP);

21 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

22}

24void loop() {

25 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

26 analogWrite(ENA, 200);

28 Serial.print("Encoder pulses: "); Serial.println(pulseCount);

29 delay(200);

30}

📄 File: dc_motor_ga25-370_12v_with_encoder_80_rpm_-_arduino_nano.inoArduino Nano

812 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC motor GA25-370 12V with Encoder 80 RPM: drive via H-bridge (IN1=8, IN2=9, ENA=10) + read its built-in quadrature encoder (A=2, B=3) on Arduino Nano.

6#define IN1 8

7#define IN2 9

8#define ENA 10

9#define ENC_A 2

10#define ENC_B 3

12volatile long pulseCount = 0;

13void handleEncoder() {

14 pulseCount += (digitalRead(ENC_B) > 0) ? 1 : -1;

15}

17void setup() {

18 Serial.begin(115200);

19 pinMode(IN1, OUTPUT); pinMode(IN2, OUTPUT); pinMode(ENA, OUTPUT);

20 pinMode(ENC_A, INPUT_PULLUP); pinMode(ENC_B, INPUT_PULLUP);

21 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

22}

24void loop() {

25 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

26 analogWrite(ENA, 200);

28 Serial.print("Encoder pulses: "); Serial.println(pulseCount);

29 delay(200);

30}

📄 File: dc_motor_ga25-370_12v_with_encoder_80_rpm_-_arduino_mega.inoArduino Mega

812 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC motor GA25-370 12V with Encoder 80 RPM: drive via H-bridge (IN1=8, IN2=9, ENA=10) + read its built-in quadrature encoder (A=2, B=3) on Arduino Mega.

6#define IN1 8

7#define IN2 9

8#define ENA 10

9#define ENC_A 2

10#define ENC_B 3

12volatile long pulseCount = 0;

13void handleEncoder() {

14 pulseCount += (digitalRead(ENC_B) > 0) ? 1 : -1;

15}

17void setup() {

18 Serial.begin(115200);

19 pinMode(IN1, OUTPUT); pinMode(IN2, OUTPUT); pinMode(ENA, OUTPUT);

20 pinMode(ENC_A, INPUT_PULLUP); pinMode(ENC_B, INPUT_PULLUP);

21 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

22}

24void loop() {

25 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

26 analogWrite(ENA, 200);

28 Serial.print("Encoder pulses: "); Serial.println(pulseCount);

29 delay(200);

30}

📄 File: dc_motor_ga25-370_12v_with_encoder_80_rpm_-_esp32.inoESP32

813 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC motor GA25-370 12V with Encoder 80 RPM: drive via H-bridge (IN1=26, IN2=27, ENA=25) + read its built-in quadrature encoder (A=32, B=33) on ESP32.

6#define IN1 26

7#define IN2 27

8#define ENA 25

9#define ENC_A 32

10#define ENC_B 33

12volatile long pulseCount = 0;

13void handleEncoder() {

14 pulseCount += (digitalRead(ENC_B) > 0) ? 1 : -1;

15}

17void setup() {

18 Serial.begin(115200);

19 pinMode(IN1, OUTPUT); pinMode(IN2, OUTPUT); pinMode(ENA, OUTPUT);

20 pinMode(ENC_A, INPUT_PULLUP); pinMode(ENC_B, INPUT_PULLUP);

21 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

22}

24void loop() {

25 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

26 analogWrite(ENA, 200);

28 Serial.print("Encoder pulses: "); Serial.println(pulseCount);

29 delay(200);

30}

📄 File: dc_motor_ga25-370_12v_with_encoder_80_rpm_-_esp8266.inoESP8266

815 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC motor GA25-370 12V with Encoder 80 RPM: drive via H-bridge (IN1=D5, IN2=D6, ENA=D7) + read its built-in quadrature encoder (A=D5, B=D6) on ESP8266.

6#define IN1 D5

7#define IN2 D6

8#define ENA D7

9#define ENC_A D5

10#define ENC_B D6

12volatile long pulseCount = 0;

13void handleEncoder() {

14 pulseCount += (digitalRead(ENC_B) > 0) ? 1 : -1;

15}

17void setup() {

18 Serial.begin(115200);

19 pinMode(IN1, OUTPUT); pinMode(IN2, OUTPUT); pinMode(ENA, OUTPUT);

20 pinMode(ENC_A, INPUT_PULLUP); pinMode(ENC_B, INPUT_PULLUP);

21 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

22}

24void loop() {

25 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

26 analogWrite(ENA, 200);

28 Serial.print("Encoder pulses: "); Serial.println(pulseCount);

29 delay(200);

30}

📄 File: dc_motor_ga25-370_12v_with_encoder_80_rpm_-_stm32.inoSTM32

823 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC motor GA25-370 12V with Encoder 80 RPM: drive via H-bridge (IN1=PB0, IN2=PB1, ENA=PA8) + read its built-in quadrature encoder (A=PA0, B=PA1) on STM32.

6#define IN1 PB0

7#define IN2 PB1

8#define ENA PA8

9#define ENC_A PA0

10#define ENC_B PA1

12volatile long pulseCount = 0;

13void handleEncoder() {

14 pulseCount += (digitalRead(ENC_B) > 0) ? 1 : -1;

15}

17void setup() {

18 Serial.begin(115200);

19 pinMode(IN1, OUTPUT); pinMode(IN2, OUTPUT); pinMode(ENA, OUTPUT);

20 pinMode(ENC_A, INPUT_PULLUP); pinMode(ENC_B, INPUT_PULLUP);

21 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

22}

24void loop() {

25 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

26 analogWrite(ENA, 200);

28 Serial.print("Encoder pulses: "); Serial.println(pulseCount);

29 delay(200);

30}

📄 File: dc_motor_ga25-370_12v_with_encoder_80_rpm_-_raspberry_pi_pico.inoRaspberry Pi Pico

825 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC motor GA25-370 12V with Encoder 80 RPM: drive via H-bridge (IN1=14, IN2=15, ENA=16) + read its built-in quadrature encoder (A=20, B=21) on Raspberry Pi Pico.

6#define IN1 14

7#define IN2 15

8#define ENA 16

9#define ENC_A 20

10#define ENC_B 21

12volatile long pulseCount = 0;

13void handleEncoder() {

14 pulseCount += (digitalRead(ENC_B) > 0) ? 1 : -1;

15}

17void setup() {

18 Serial.begin(115200);

19 pinMode(IN1, OUTPUT); pinMode(IN2, OUTPUT); pinMode(ENA, OUTPUT);

20 pinMode(ENC_A, INPUT_PULLUP); pinMode(ENC_B, INPUT_PULLUP);

21 attachInterrupt(digitalPinToInterrupt(ENC_A), handleEncoder, RISING);

22}

24void loop() {

25 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

26 analogWrite(ENA, 200);

28 Serial.print("Encoder pulses: "); Serial.println(pulseCount);

29 delay(200);

30}

Project Notes:

Bare DC motor - needs an H-bridge driver module (L298N/L293D/L9110S) wired between it and the microcontroller, shown here with its built-in encoder read alongside.

Specification

WeightWeight	10 g
Dimensions	5 × 4 × 2 cm
Motor Type	Brushed DC
Voltage	12V DC
No-load Speed	80 RPM
Gearbox	GA25, metal gears
Encoder	Incremental, quadrature
Output Channels	2 (A and B)
Motor Frame	370
Gear Ratio	High (for 80 RPM)
