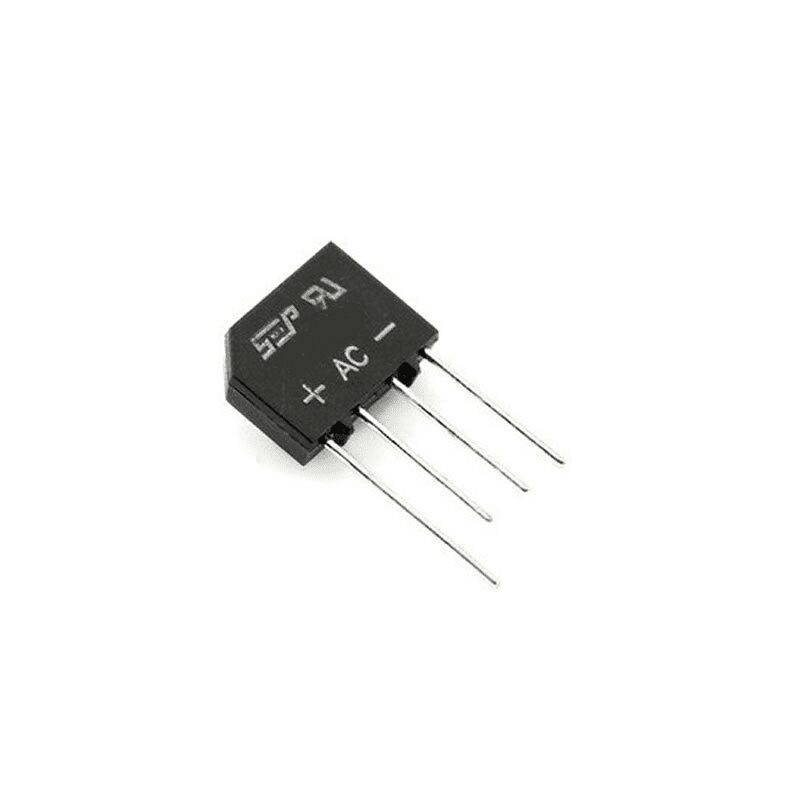

4A Single-Phase Diode Bridge Rectifier (1000V, Through-Hole)

A 4A bridge rectifier is an essential component for converting AC to DC in power supply circuits. Here’s a detailed overview:

Specifications:

• Current Rating: 4A
• Voltage Rating: Typically available in 50V, 100V, 200V, 400V, 600V, or higher versions
• Configuration: Full-wave bridge rectifier (four diodes in a bridge arrangement)
• Package Type: Usually DIP (Through-hole) or SMD (Surface Mount)
• Forward Voltage Drop: ~1.1V per diode
• Operating Temperature: -40°C to +150°C
• Common Part Numbers: KBL406, MB6S, DB107, etc.

How It Works:

A bridge rectifier converts AC voltage into DC by allowing current to flow in one direction, smoothing out the waveform.

Pinout:

1. AC Input (AC1 & AC2): Connects to the AC power source.
2. Positive Output (+): Connects to the DC circuit’s positive rail.
3. Negative Output (-): Connects to the DC circuit’s ground.

Applications:

✅ Power supplies for electronics
✅ Battery chargers
✅ LED drivers
✅ DC motor control

Additional Components Needed:

• Capacitor (e.g., 1000µF or higher) for smoothing
• Voltage regulator (e.g., 7805 for 5V output) if precise voltage is required
