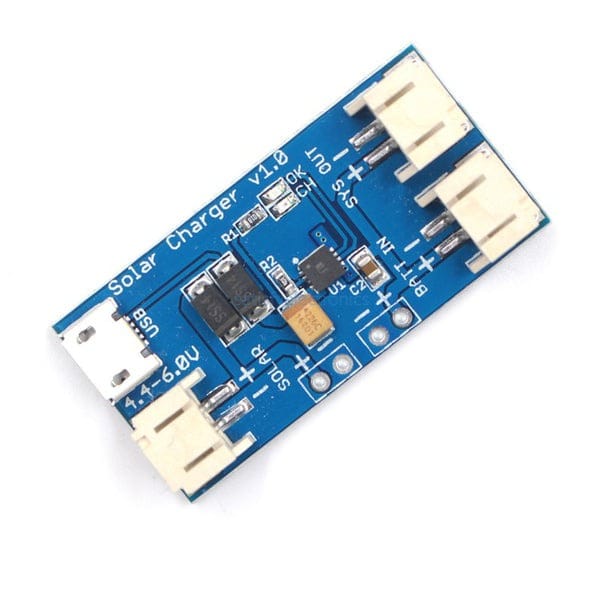

500Ma Mini Solar Lipo Charger Board

  1. Supermini Solar Lipo charger based on the CN3065
  2. Can Charge Single Lithium-ion Polymer cell with Max charging current 500 mA
  3. 2-pin JST Connector Interface
  4. Supports USB Charge

EGP75.00

In stock

SKU: AA494 Category:
Estimated delivery dates: 12-12-2024 - 16-12-2024

This is a Super-Mini Solar Lipo charger based on the CN3065 – a single lithium battery charge management chip. This Solar charger provides you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargeable LiPo battery. Set-up is easy as well, just plug your solar panel into one side of the Solar charger and your battery into the other and you are good to start charging!

The output of the Solar Charger is intended to charge a single polymer lithium-ion cell. The load should be connected in parallel with the battery. By default, the Solar charge comes set to a maximum charge current of 500mA with a maximum recommended input of 6V (minimum 4.4V). It’s recommended that batteries not be charged at greater than their capacity rating.

Note: This Product is also available in HW 736 variant with the same working we will ship it randomly.


Features:

  1. Solar panel input: 4.4-6V
  2. Max charge current: 500mA
  3. Interface: 2-pin JST connectors(or PH2.0)
  4. Short circuit protection
  5. Continuous Charge Current Up to 500mA
  6. Battery status indication ( Red: Charging, Green: Charged )
  7. Support USB Charge (Micro-USB Connector)

Package Includes:

1 x Mini Solar Lipo Charger Board

0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “500Ma Mini Solar Lipo Charger Board”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Get a discount when you buy more

Specification

Dimensions 39 × 19 × 7 mm
Input Voltage Range

4.4 to 6VDC

Max Charge Current

500mA

Connector

2-Pin Connectors

Battery Status Indicator

Red: Charging
Green: Charged
